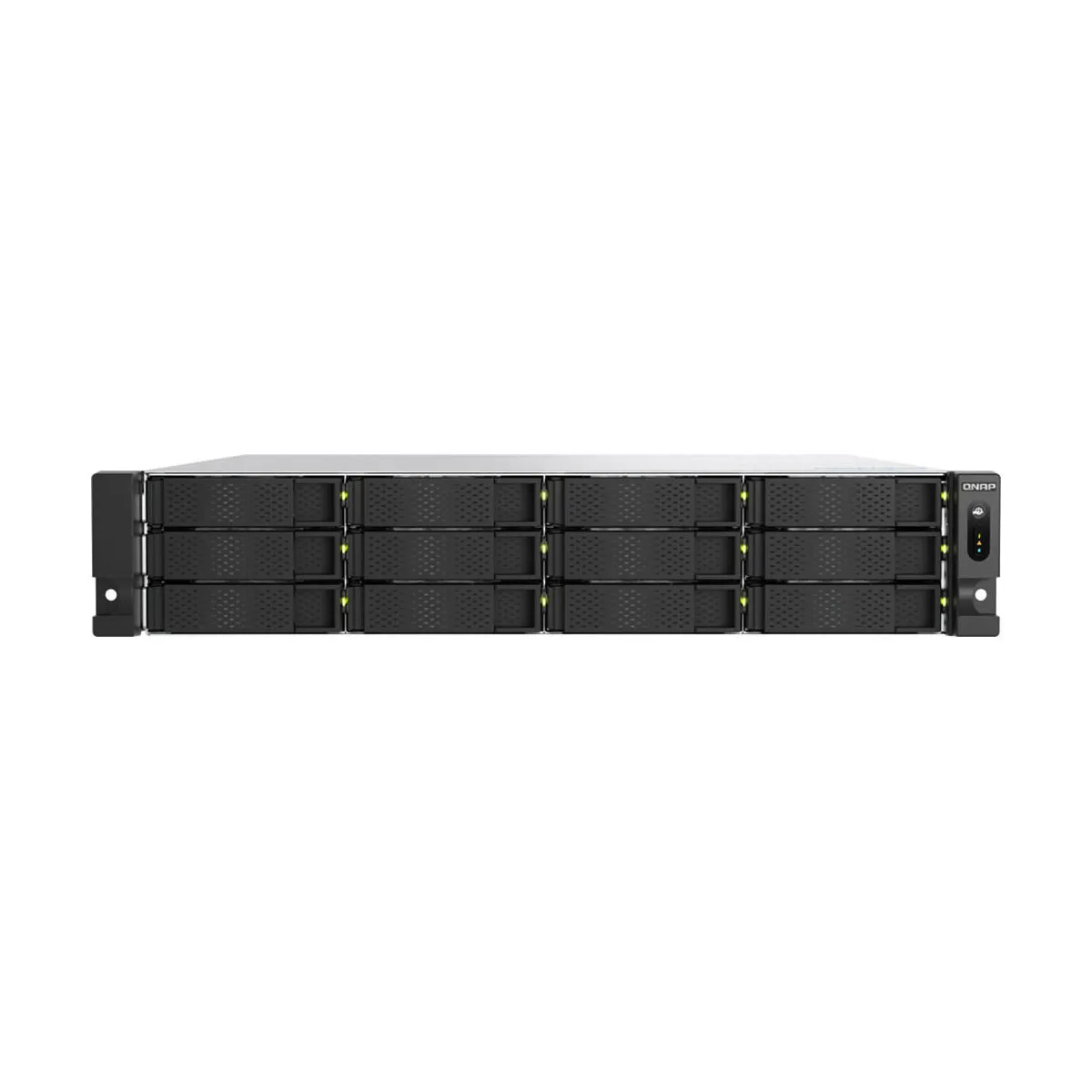

QNAP TS-h1277AXU-RP 12-Bay 2U Rackmount NAS Enclosure, AMD Ryzen 7 7000, 32GB RAM, Diskless

Experience exceptional enterprise performance with the power of AMD Ryzen 7000 Series processors, DDR5, and M.2 PCIe Gen 5.

Powered by AMD Ryzen 7000 Series processors based on the cutting-edge AMD socket AM5 platform, the ZFS-based TS-h1277AXU-RP storage and backup solution unleashes superb performance and enterprise-level potential. With a revolutionary multi-core processor, DDR5 RAM, M.2 PCIe Gen 5, and redundant power supplies, the TS-h1277AXU-RP delivers excellent performance, ultra-large bandwidth, and trusted reliability for performance-demanding Tier 2 storage, virtualization, 4K video editing, and PB-level storage applications.

New-gen AMD Ryzen 7000 Series processors unleash enterprise-level power and potential

Unmatched hardware design and high performance
The TS-h1277AXU-RP features outstanding hardware and expandable architecture, enabling optimal performance and flexibility to meet diverse application requirements.

M.2 PCIe Gen 5 ultra-fast transfer speed
The TS-h1277AXU-RP comes with two M.2 2280 PCIe Gen 5 slots that allow for installing NVMe SSDs (including WD, Micron, Seagate, Kingston) to boost NAS performance. PCIe Gen 5 is backwards compatible with PCIe Gen 4 / PCIe Gen 3 for flexible SSD deployment.

SSD caching
Boost IOPS for transferring a huge number of small files by configuring SSD caching with two M.2 SSDs, without occupying any 3.5-inch drive bays.

Power failure protection
Add M.2 SSDs to enable ZIL power failure protection, ensuring that the NAS can continue completing unfinished data writes after power outage followed by a power restoration, and preventing data corruption while modifying data.

High-speed SSD volume
Create M.2 NVMe SSD storage pools to increase intensive data transfer speed with boosted performance.

It is also recommended to use the NVMe SSD storage pool as the QuTS hero operating system drive to achieve optimal NAS system performance, efficient application metadata management, and optimized database operations.

Abundant I/O capabilities with PCIe Gen 4 expansion
The TS-h1277AXU-RP has three PCIe Gen 4 slots (twice the bandwidth of PCIe Gen 3) that allow for installing various expansion cards for expanding application potential.

10/25GbE network card
Enable lightning-fast throughput for bandwidth-demanding tasks (virtualization, mass data transmission, and fast backup/restore).

QM2 card
Add M.2 SSDs or 2.5GbE/10GbE connectivity to the TS-h1277AXU-RP for optimized performance and bandwidth.

SAS / PCIe / SATA storage expansion cards
Connect the TS-h1277AXU-RP to SAS 12Gb/s, PCIe 64 Gb/s or SATA 6Gb/s expansion units for petabyte-scale storage capacity.

Graphics cards
Install graphics cards to the TS-h1277AXU-RP for supercharging your video editing and transcoding or enabling GPU passthrough to virtual machines.

Build an affordable Fiber Channel SAN environment
Common Fiber Channel Storage Area Networks (SAN) devices are often costly. By installing QNAP dual-port 32Gb Fiber Channel expansion cards in the TS-h1277AXU-RP, you have more budget-friendly options to add a NAS to a SAN environment. You can set a Fiber Channel Target using the iSCSI & Fiber Channel app. Moreover, the LUN Masking and Port Binding features provide an additional layer of data security.

Meets diverse business needs

Tier 2 Storage
High-capacity TS-h1277AXU-RP with built-in 2.5GbE/10GbE fulfills high-speed transfer performance as a cost-effective Tier 2 storage solution.

Virtualization
The TS-h1277AXU-RP supports GPU passthrough to VMs by leveraging graphics cards; coupled with inline data deduplication to maximize storage efficiency.

4K Video Editing
Install up to three 25GbE network cards in the TS-h1277AXU-RP for bandwidth-demanding multimedia transfer and video online editing.

PB-Level Storage
Achieve future-proof PB-level storage by connecting up to eight 24-bay TL-R2400PES-RP PCIe JBOD units to the TS-h1277AXU-RP.

High-speed connectivity

2.5GbE and 10GbE ports
The TS-h1277AXU-RP has two 2.5GbE ports and two 10GBASE-T ports, and supports Port Trunking for enhanced performance and fault tolerance.

USB 3.2 Gen 2 ports
Two USB 3.2 Gen 2 (10Gbps) Type-A ports allow faster import/export of large number of files from external storage devices to the TS-h1277AXU-RP.

AI-powered DA Drive Analyzer designed for enterprises and SMBs
Leverage AI-powered drive failure prediction provided by ULINK DA Drive Analyzer to plan for drive replacement before failure occurs. DA Drive Analyzer effectively ensures that critical business data is safeguarded and minimizes system downtime.

Predicts failure of SATA and NVMe drives
DA Drive Analyzer can predict the failure of high-performance NVMe SSDs, assisting enterprises in taking early action to replace drives before failure and reducing maintenance costs.

Enhances enterprise privacy with Proxy server connection
Various proxy server connection protocols are supported to hide the NAS IP address from external networks while uploading NAS data to the cloud.

Completes drive failure prediction within 24 hours
DA Drive Analyzer collects drive usage data from the previous 24 hours and uploads to the ULINK AI-powered analytics platform. Within 24 hours you will be informed of the potential for drive failure in the next 6 months.

Customize your drive data upload time
Flexibly decide the upload time of drive status and usage data to the ULINK AI-powered analytics platform with customized schedules to avoid missing any critical data for disk analysis due to NAS system hibernation or downtime.

Comprehensive backup and disaster recovery solution
The TS-h1277AXU-RP supports various apps that cover all your backup needs. Practice safe IT habits by regularly backing up files and device content, allowing them to be easily restored when needed.

Remote backup for NAS
Hybrid Backup Sync makes it easy to back up data from a TS-h1277AXU-RP to another QNAP NAS or remote server to fulfill your 3-2-1 backup strategy.

VM backup
Enjoy license-free VMware and Hyper-V VM backup with source-side incremental backup, global deduplication, and recovery compression.

SaaS backup
Safeguard enterprise cloud data by backing up/syncing files, emails, calendars, and contacts from Google Workspace and Microsoft Office 365 to the NAS.

Cloud backup for NAS
Use Hybrid Backup Sync to back up NAS data to myQNAPcloud Storage or other mainstream cloud space. For backup to object cloud storage, VJBOD Cloud is especially useful to reduce bandwidth usage and backup time.

QuDedup technology
Hybrid Backup Sync eliminates redundant data at the source and then backs up the deduplicated data, helping to save time and storage costs while providing efficient multi-version backups.

Real-time SnapSync
Real-time SnapSync immediately synchronizes data changes with the destination storage, ensuring the primary and secondary NAS always have the same data. RPO is minimal to achieve real-time disaster recovery.

Multi-version snapshots mitigate ransomware threats
The TS-h1277AXU-RP supports block-based snapshots that record the state of the system at any time. It helps protect data, which can be restored back to a specific point of time, greatly helping in mitigating the threat of ransomware.

Volume and LUN snapshots
Take snapshots in seconds and revert the entire volume/LUN back to a specific point in time to prevent loss of important data.

Instantly restore snapshots
Snapshot content can be quickly restored to a local NAS, or restored on a folder/file basis to a local/remote NAS or cloud storage. You can also conveniently view and restore snapshots from the client side.

Up to 65,536 snapshots
QuTS hero supports enough snapshots for you to create 1 snapshot every hour for 7 years without needing to delete any! Copy-on-write technology makes snapshot creation almost instantaneous without affecting ongoing data writing.

Back up snapshots
Multiply data protection by backing up snapshot files! Replicate volume/LUN snapshots in the TS-h1277AXU-RP to a remote NAS (Snapshot Replica) by copying only the changes made. This helps save time & bandwidth, and can be run manually or on a scheduled basis.

High availability (HA) and failover with dual-NAS architecture
Create a HA cluster with two TS-h1277AXU-RP – one as the active server, and the other as the passive server. If an unexpected failure or issue with the active server occurs, the passive server provides immediate protection with automatic failover. This ensures continuous storage service and system availability.

Easy management and monitoring
Use the High Availability Manager app to easily configure, remove, or rebuild clusters.

Guaranteed data consistency
Real-time data sync between active and passive servers minimizes the risk of data loss (RPO).

Ensured continuity of critical business
The passive server takes over within 1 minute if the active server fails (RTO < 60 secs).

Comprehensive security and privilege settings
The TS-h1277AXU-RP is loaded with flexible privilege settings and security measures. Besides IP blocking, QNAP Authenticator, HTTPS connection, there are more apps that help ensure optimal NAS protection against threats like malware and hackers.
