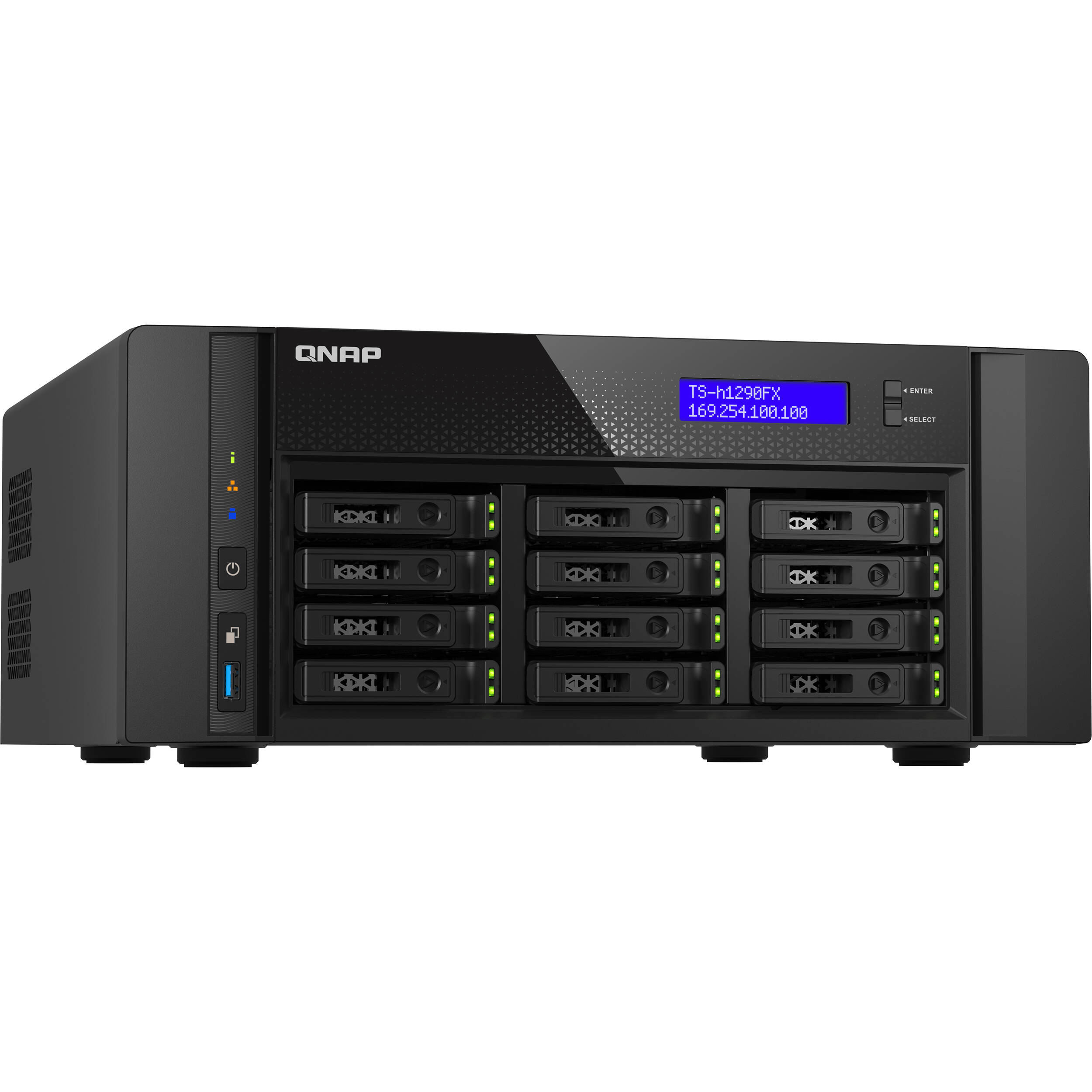

QNAP TS-H1290FX-7302P-128G-US 12-Bay NAS Enclosure

Add to Wishlist

Take on demanding collaborative projects such as editing 8K videos by enhancing your office or studio’s network storage capacity with the QNAP TS-H1290FX-7302P-128G-US 12-Bay NAS Enclosure. Designed to support all solid-state storage devices, up to twelve 2.5″ U.2 NVMe PCIe 4.0 x4 or SATA III drives may be installed into its available bays and configured for RAID 0, 1, 5, 6, 10, 50, 60, or Single modes with up to triple parity and triple mirroring. The TS-H1290FX-7302P-128G-US is also outfitted with a 3.1 GHz AMD EPYC 7232P eight-core processor with 128GB of ECC DDR4 memory to deliver smooth, accurate data transfers through its two integrated 2.5G RJ45 ports and two 25G SFP28 ports. Three PCIe 4.0 slots are available for entry-level graphics cards, additional NICs, M.2 SSD cache drive adapters, and other expansions.

AED34,995.00

Add to Wishlist

QNAP TS-H1290FX External HDD/SSD Overview

Take on demanding collaborative projects such as editing 8K videos by enhancing your office or studio’s network storage capacity with the QNAP TS-H1290FX-7302P-128G-US 12-Bay NAS Enclosure. Designed to support all solid-state storage devices, up to twelve 2.5″ U.2 NVMe PCIe 4.0 x4 or SATA III drives may be installed into its available bays and configured for RAID 0, 1, 5, 6, 10, 50, 60, or Single modes with up to triple parity and triple mirroring. The TS-H1290FX-7302P-128G-US is also outfitted with a 3.1 GHz AMD EPYC 7232P eight-core processor with 128GB of ECC DDR4 memory to deliver smooth, accurate data transfers through its two integrated 2.5G RJ45 ports and two 25G SFP28 ports. Three PCIe 4.0 slots are available for entry-level graphics cards, additional NICs, M.2 SSD cache drive adapters, and other expansions.

When fully configured with U.2 NVMe PCIe 4.0 SSDs in RAID 5 mode and six 25G Ethernet ports, this NAS can reach random download and upload speeds of up to 816051 IOPS and 318011 IOPS, respectively. Your data can be secured by 256-bit AES encryption. The TS-h1290FX is designed to operate quietly from your desktop and uses the QuTS hero 5 operating system.

QNAp TS-h1290FX NAS
All-Flash NAS
Supporting all NVMe flash storage, the TS-h1290FX is designed to deliver high random read and write IOPS for tackling I/O-intensive and latency-sensitive applications.
Optimized SSD Performance
Inline data deduplication and compression, pool over-provisioning, and TRIM maximize SSD performance and lifespan.
25G & 2.5G Connectivity
Two 25G SFP28 and dual 2.5G RJ45 high-speed connectivity accelerates virtualization, intensive file access, and large backup/restoration tasks. Adding separately sold compatible QNAP network cards allows you to connect up to 20 workstations directly to the TS-h1290FX without having to use a network switch.
Software Compatibility
The TS-h1290FX is ideal for video editing teams, as it is compatible with software applications such as Adobe Premiere Pro, Final Cut Pro X, Avid Media Composer, and DaVinci Resolve.
QuTS hero Operating System
Enhanced NAS Performance & Data Integrity
QuTS hero combines the app-based QTS with the 128-bit ZFS file system to provide flexible storage management, comprehensive data protection, and optimized performance to tackle the complexity and performance demands of modern IT. From storage management, virtualization, to collaborative media workflows, QuTS hero streamlines your business-critical tasks.
Inline Data Deduplication, Compression & Compaction
Advanced block-based data reduction technologies help to reduce file sizes, conserve storage capacity, and optimize performance. For example, if 20 virtual machines on a NAS are replicated using the same template, then storage space requirements for all 20 virtual machines can be reduced by up to 95%.
Hosting Virtual Machines & Containers
By running multiple virtual machines and containers on the TS-h1290FX, you can deploy multi-tenant environments and applications to increase management efficiency and save hardware costs. Coupled with the Network & Virtual Switch app that boosts interoperability between virtual machines, containers, QNAP NAS, and other physical devices on the network, you can flexibly allocate physical and virtual network resources to simplify network deployment.
Comprehensive Security
This NAS includes flexible privilege settings and security measures. In addition to IP blocking, two-step verification, HTTPS connection, a variety of apps help ensure optimal protection against threats like malware and hackers.
SKU: 128G-US 12-Bay Category: Tag:

QNAP TS-H1290FX External HDD/SSD Specs

Computing
CPU 3.1 to 3.2 GHz 8-Core
Processor AMD EPYC 7232P
Total Installed Memory 128 GB ECC DDR4
User-Replaceable Memory 8 x 16 GB
Total Memory Slots 8 x DIMM
Maximum Memory Capacity 1 TB
Flash Memory 5 GB
General
Number of Bays 12 x 2.5″/U.2
I/O 2 x RJ45 (2.5GbE)
2 x SFP28 (25GbE)
3 x USB Type-A (USB 3.1 / USB 3.2 Gen 1 (5 Gb/s))
Compatible Drive Interface SATA III, U.2
Media Card Slots None
Form Factor Desktop
RAID RAID 0, 1, 10, 5, 50, 6, 60, JBOD, Single
Hot-Swap Support Yes
PCI Expansion 3 x PCIe 4.0 (x16 Electrical)
1 x PCIe 4.0 (x8 Electrical, Occupied)
Wake on LAN Yes
Link Aggregation and Failover Support Yes
Networking
Supported Protocols AFP
CIFS/SMB
FTP
HTTP
HTTPS
IPv4
IPv6
L2TP/IPSec
SNMP v2
SNMP v3
SSH
Telnet
iSCSI Target 256
Max Concurrent Connections 10,000
Max Folders 256
Max Sync Tasks 400
Max Groups 512
Max User Accounts 16,000
Software
Installed Operating System QuTS hero 5.0.0
Supported File Systems Internal: ZFS
External: EXT3, EXT4, FAT32, HFS+, NTFS, exFAT
OS Compatibility macOS 10.10 or Later
Windows 7 or Later
Windows Server 2008 R2 or Later
Ubuntu 14.4 or Later
CentOS 7 or Later
Linux
UNIX
*As of March, 2022: Check with manufacturer for the most up-to-date compatibility
Supported Browsers Chrome, Edge, Firefox, Safari
Supported Languages Brazilian Portuguese
Czech
Danish
Dutch
English
Finnish
French
German
Greek
Hungarian
Italian
Japanese
Korean
Norwegian
Polish
Portuguese
Romanian
Russian
Simplified Chinese
Spanish
Swedish
Thai
Traditional Chinese
Turkish
Security
Encryption 256-Bit AES
Security Features Kensington Security Slot
Electrical
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Power Source AC Adapter
PSU Wattage 1 x 750 W
Environmental
Operating Temperature 32 to 104°F / 0 to 40°C
Operating Humidity 5 to 95%
Storage Temperature -4 to 158°F / -20 to 70°C
Physical
Status Monitoring LED Indicator
Audible Alarm Yes
Cooling 2 x 92 mm Fans
Noise Level 23.1 to 35 dBA
Built-In Speakers None
IR Sensor None
Dimensions 14.49 x 14.25 x 5.91″ / 36.8 x 36.2 x 15.01 cm
Weight 19.8 lb / 9.0 kg
Packaging Info
Package Weight 24.82 lb
Box Dimensions (LxWxH) 20.9 x 20 x 11″
