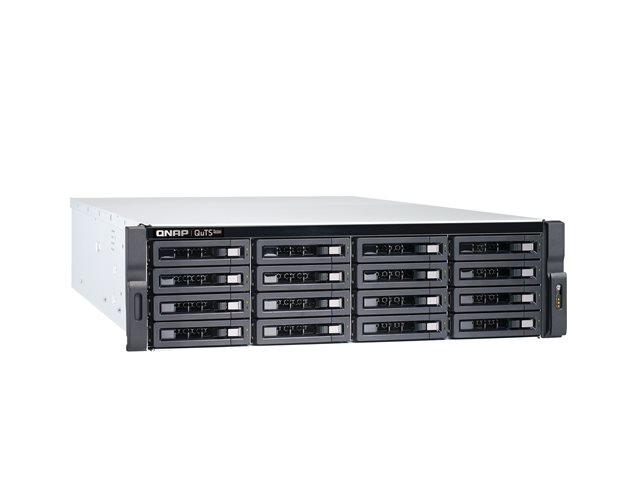

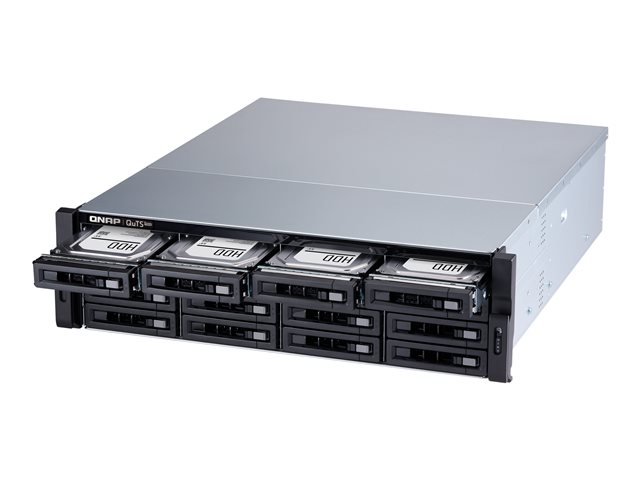

QNAP TS-h1683XU-RP – NAS server

Add to Wishlist

16 bays – rack-mountable – SATA 6Gb/s – RAID RAID 0, 1, 5, 6, 10, 50, JBOD, 5 hot spare, 6 hot spare, 60, 10 hot spare, RAID TP – RAM 128 GB – Gigabit Ethernet / 10 Gigabit Ethernet / 10Gbps SFP+ – iSCSI support – 3U

46,499.00 د.إ

Add to Wishlist

The QuTS hero NAS TS-h1683XU-RP is powered by an Intel Xeon E processor with up to 128GB DDR4 Error Correcting Code (ECC) memory to deliver server-grade performance with dependable reliability. Running the ZFS-based QuTS hero operating system, the TS-h1683XU-RP supports near-limitless snapshots, real-time SnapSync, block-level inline data deduplication, and inline data compression. The TS-h1683XU-RP helps your business achieve reliable service-level agreement performance, whether as a mission-critical file server, virtualization server, VDI, collaborative video editing, or efficient file backup and recovery applications.

Intel Xeon E processor delivers extraordinary performance

Powered by an Intel Xeon E-2236 3.4GHz processor (Burst up to 4.8 GHz), the TS-h1683XU-RP has enormous processing power to drive virtual machine performance. Combined with 128GB DDR4 ECC memory and a redundant power supply, the TS-h1683XU-RP delivers cost-effective server-grade performance for complex multitasking and dependable reliability in enterprise IT environments.

Server-grade hardware: sturdy and expandable

The TS-h1683XU-RP features outstanding hardware and expandable architecture, enabling optimal performance and flexibility to meet business application diversification requirements.

10GbE connectivity for high-speed data transfer

The TS-h1683XU-RP provides four Gigabit RJ45 ports and also supports 10GbE connectivity with a pre-installed dual-port 10GBASE-T network expansion card and a dual-port 10GbE SFP+ SmartNIC to satisfy bandwidth-demanding applications (including virtualization, large file sharing, and high-speed backup and recovery). QNAP also offers numerous options of managed and unmanaged 10GbE switches with 10GbE SFP+/RJ45 and Multi-Gigabit NBASE-T support, assisting organizations in implementing high-speed, secure and scalable network environments.

SKU: TS-H1683XU-RP-E2236-128G Category: Tag:
Product Description QNAP TS-h1683XU-RP – NAS server
Device Type NAS server
Host Connectivity Gigabit Ethernet / 10 Gigabit Ethernet / 10Gbps SFP+
Enclosure Type Rack-mountable – 3U
Installed Devices / Modules Qty 0 (installed) / 16 (max)
Dimensions (WxDxH) 48.1 cm x 57.35 cm x 13 cm
Weight 13.76 kg ()
Processor 1 x Intel Xeon E-2236 3.4 GHz (6-core)
Storage Controller RAID SATA 6Gb/s RAID RAID 0, 1, 5, 6, 10, 50, JBOD, 5 hot spare, 6 hot spare, 60, 10 hot spare, RAID TP
Networking GigE, 10 GigE, 10 GigE optical
RAM 128 GB
Power AC 120/230 V
Power Redundancy Yes
Storage Operating System QNAP QTS hero
General
Device Type NAS server
Host Connectivity Gigabit Ethernet / 10 Gigabit Ethernet / 10Gbps SFP+
Enclosure Type Rack-mountable – 3U
Total Storage Capacity 0 GB
Installed Devices / Modules Qty 0 (installed) / 16 (max)
Width 48.1 cm
Depth 57.35 cm
Height 13 cm
Weight 13.76 kg ()
Processor / Memory
Processors Installed 1 x Intel Xeon E-2236 3.4 GHz
Number of Cores 6-core
Max Supported Qty 1
Max Turbo Speed 4.8 GHz
RAM 128 GB (installed) / 128 GB (supported) – DDR4
Features ECC
Flash Memory Installed 5 GB
Storage Controller
Type RAID
Interface Type SATA 6Gb/s
RAID Level RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, JBOD, RAID 5 hot spare, RAID 6 hot spare, RAID 60, RAID 10 hot spare, RAID TP
Networking
Data Link Protocol GigE, 10 GigE, 10 GigE optical
Remote Management Protocol SNMP 2, SNMP 3
Network Services Compatibility Microsoft Active Directory (AD), Apple Bonjour Protocol, File Level Security (ACLs), Microsoft CIFS, FTP, Server Message Block (SMB), Apple File Protocol (AFP)
Features ALERT notification, LDAP support, VLAN support, wake on LAN (WOL), Syslog support, Access Control List (ACL) support, iTunes server, Jumbo Frames support, DLNA Media Server, Apple Time Machine compatible, VPN Server, Apple AirPlay, anti-virus protection, Link Aggregation, Google Drive support, Chromecast support, port trunking, Microsoft Azure support, Amazon S3 support, Amazon Glacier suport, Qsirch, deduplication (volume and LUN), snapshot (folder and LUN), compression (volume and LUN)
Encryption Algorithm AES-NI
Compliant Standards UPnP
Expansion / Connectivity
Expansion Bays 16 (total) / 16 (free) x hot-swap – 2.5″ / 3.5″
Expansion Slots 1 (total) / 1 (free) x PCI Express 3.0 x8
2 (total) / 0 (free) x PCI Express 3.0 x4
1 (total) / 1 (free) x PCI Express 2.0 x4
Interfaces 4 x Ethernet 1000Base-T – RJ-45
4 x USB 3.2 Gen 2 – Type A
2 x USB 3.2 Gen 2 – Type C
2 x Ethernet 10Gb – SFP+
2 x Ethernet 10Base-T – RJ-45
Miscellaneous
Cables Included 2 x network cable
2 x 10GBase-T cable
Features Audible alarm, built-in 4 cooling fans, dual boot
Included Accessories 64 x flat head screws (for 3.5″ HDD), 64 x flat head screws (for 2.5″ HDD), 2 x power cables
Power
Power Device Internal power supply
Installed Qty 2
Max Supported Qty 2
Power Redundancy Yes
Power Redundancy Scheme 1+1
Voltage Required AC 120/230 V
Power Consumption Operational 130.43 Watt
Power Provided 500 Watt
Software / System Requirements
Storage Operating System QNAP QTS hero
Dimensions & Weight (Shipping)
Shipping Weight 21.79 kg
Environmental Parameters
Min Operating Temperature 0 °C
Max Operating Temperature 40 °C
Humidity Range Operating 5 – 95% (non-condensing)
Sound Emission 53 dBA
