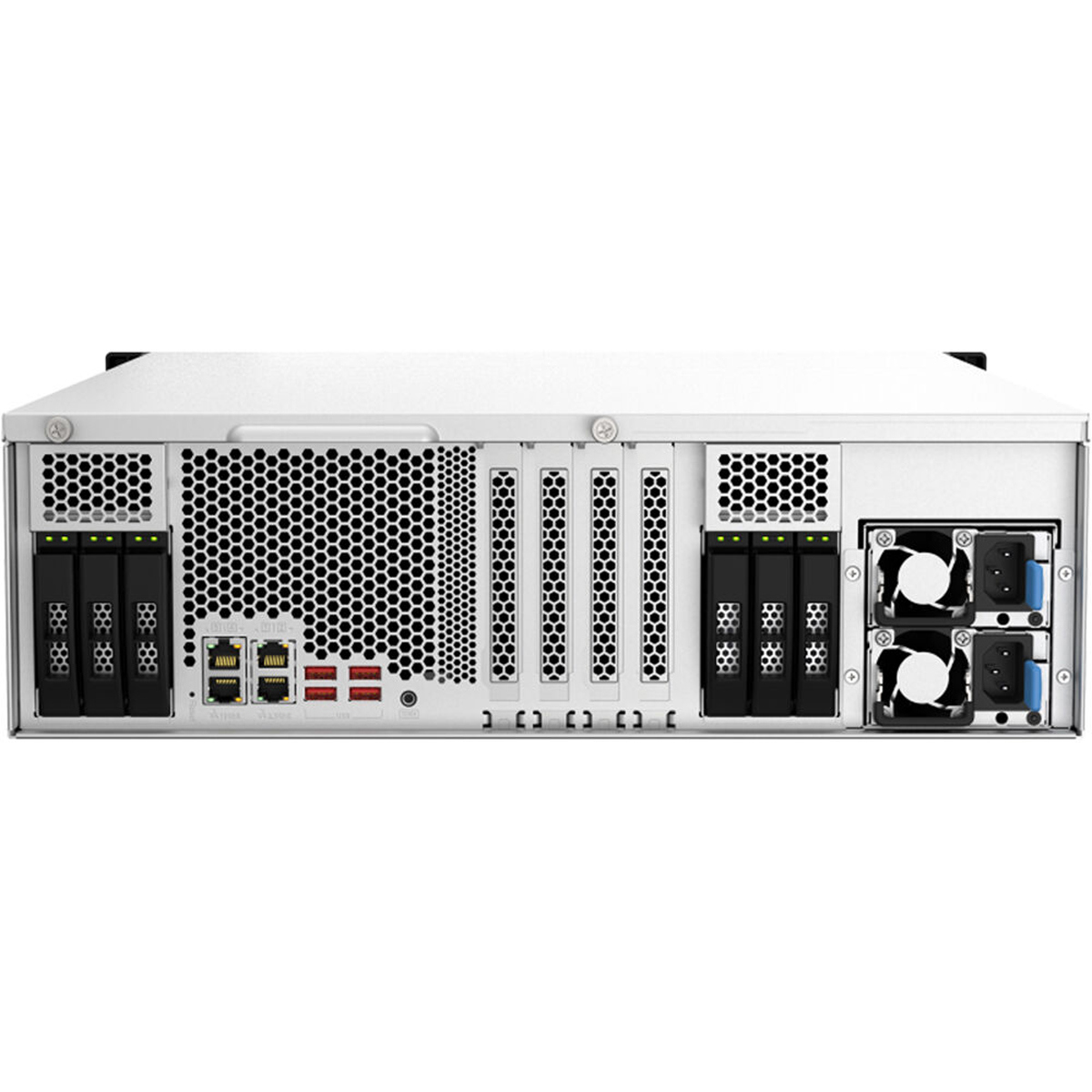

QNAP TS-h2287XU-RP 22-Bay 3U Rackmount NAS/iSCSI Enclosure, Intel Xeon E-2378 2.6GHz Processor


Key Features

  • Experience blazing-fast performance with the Intel Xeon E-2378 CPU in this QNAP NAS enclosure.
  • Safeguard your critical data using advanced data security features, including AES-NI encryption.
  • Expand your storage as needed with 22 bays supporting both SSD and HDD drives for ultimate flexibility.
  • Enjoy easy setup and management with QNAP’s intuitive QuTS hero operating system for seamless workflows.
  • Access your files remotely and securely from anywhere with robust remote access capabilities.
  • Optimize your budget with a cost-effective NAS solution offering enterprise-grade features and reliability.

AED41,999.00

AboutĀ QNAP TS-h2287XU-RP

From enterprise-grade data centers to demanding business environments, the TS-h2287XU-RP 22-Bay 3U Rackmount NAS/iSCSI Enclosure stands out as a reliable and high-performance storage solution. Equipped with an advanced Intel Xeon E-2378 2.6GHz processor, this NAS device is 10GbE-ready and boasts PCIe Gen 4 expandability, ensuring rapid data transfer rates and seamless scalability for future growth.

The robust TS-h2287XU-RP is designed to support the versatile QuTS hero or QTS operating systems, offering a ZFS-based architecture that prioritizes data integrity. Features such as inline data deduplication, near-limitless snapshots, real-time SnapSync, and QNAP’s exclusive SSD Antiwear Leveling (QSAL) technology make it an ideal choice for file servers, virtualization servers, VDI, and comprehensive backup and restore applications.

With a spacious capacity of 0TB, this durable NAS enclosure can accommodate a significant amount of data, making it perfect for small to medium-sized businesses requiring centralized file storage and sharing. Its HDD/SSD hybrid storage architecture expertly balances performance with cost, delivering reliable server-grade performance that can handle even the most intensive workloads.

Connectivity is a breeze with dual 10GBASE-T and dual 2.5GbE ports, enhancing operations such as virtualization, intensive file access, and large-scale backup and restoration tasks. The high-speed PCIe Gen 4 slots allow for the installation of a variety of adapters, including 10/25GbE network cards, QM2 cards, or Fiber Channel cards, to further boost application performance.

For virtualization applications, the TS-h2287XU-RP supports storage and hosting of virtual machines and containerized apps, making it a comprehensive solution for modern IT infrastructures. It also serves as a complete backup center, optimized for business-class backup solutions, including the protection of Google Workspace and Microsoft 365 data, as well as VMware and Hyper-V virtual machines.

The cloud storage gateway feature enables hybrid cloud applications by utilizing cache space on the NAS for low-latency access to cloud data. With up to 128GB DDR4 ECC memory support, this NAS device is engineered to handle heavy business workloads, providing the multitasking power needed to keep pace with today’s business IT demands.

In terms of data protection, the TS-h2287XU-RP offers multiple backup options, ensuring adherence to the 3-2-1 backup rule and a solid disaster recovery plan. Data reduction technologies like QuDedup optimize backup tasks, accelerating the process and saving both time and storage space. Versioning, encryption, and intelligent network features further enhance data security and process automation.

The server-grade hardware of the TS-h2287XU-RP is both sturdy and high-performing, with flexible PCIe Gen 4 expansion to meet diverse application requirements. The ZFS-based QuTS Hero operating system enhances NAS performance and data integrity, ensuring that your data remains secure and accessible.

Whether you’re looking to streamline media workflows, manage virtual storage, or ensure the safety of your business-critical data, the TS-h2287XU-RP 22-Bay 3U Rackmount NAS/iSCSI Enclosure by QNAP is a spacious, advanced, and reliable choice that stands up to the reputation of its brand.

QNAP TS-h2287XU-RPĀ Features

  • Intel Xeon E-2378 8C 16T 2.6GHz, up to 4.8GHz, 64GB ECC DDR4 (4x 16GB), redundant power supply
  • HDD/SSD hybrid storage
  • 10GbE & 2.5GbE connectivity
  • High-speed PCIe Gen 4 slots
  • Supports virtualization storage and hosting virtual machines and containerized apps
SKU: TS-H2287XU-RP-E2378-64G-U Category: Tag:

QNAP TS-h2287XU-RP Full Specifications Table

Category Specification
Hardware
CPU Intel Xeon E-2378 8C 16T 2.6GHz (up to 4.8GHz)
CPU Architecture 64-bit x86
Floating Point Unit Yes
Encryption Engine Yes (AES-NI)
System Memory 64GB ECC DDR4 (4x16GB)
Maximum Memory 128GB (4x32GB)
Memory Slots 4x ECC UDIMM DDR4
Flash Memory 5GB (Dual boot OS protection)
Drive Bays 22 (16x 3.5″ SATA + 6x 2.5″ SATA)
Drive Compatibility 3.5″ SATA HDD/2.5″ SATA HDD/SSD; 2.5″ SATA SSD
M.2 Slot Optional via QM2 PCIe adapter
SSD Cache Acceleration Yes
GPU Pass-Through Yes (QuTS Hero), Not Supported (QTS)
2.5G Ethernet Ports 2 x 2.5G/1G/100M
10G Ethernet Ports 2 x 10GBASE-T (10G/5G/2.5G/1G/100M)
PCIe Slots 3 (2x Gen4 x4 + 1x Gen4 x8)
USB 3.2 Gen2 Ports 4 x Type-A, 10Gbps
Form Factor 3U Rackmount
LED Indicators Status (Green/Red), LAN (Green), USB (Blue), HDD (Green/Red)
Buttons Power, Reset
Operating Temperature 32–104°F (0–40°C)
Storage Temperature -4–158°F (-20–70°C)
Relative Humidity 5–95% RH non-condensing
Power Supply 2x 550W CRPS PSU
Fans 3x 60mm + 1x 80mm, 12VDC
Dimensions (H x W x D) 5.23 x 19.01 x 24.8″ (133 x 483 x 630mm)
Weight 34.48 lbs (15.64 kg)

Storage & RAID
Supported RAID 2-bay to 8+ bays: Single, RAID 0, 1, 5, 6, 10, 50, 60, Triple Mirror, Triple Parity
RAID Group Yes
RAID Expansion By adding disks or replacing with larger disks
RAID Hot Spare Global, Local
RAID Sync/Rebuild/Scrubbing Yes
Internal Drive ZFS (QuTS Hero), EXT4 (QTS)
External Drive EXT3, EXT4, NTFS, FAT32, HFS+, exFAT
Disk Features Locate, S.M.A.R.T. scan, S.M.A.R.T. data migration, Ironwolf Health Management, Secure Erase, SSD Trim, SSD Life Estimation, Disk Roaming, Disk Standby
Storage Pool Yes (QuTS Hero: 1024TB; QTS: 308TB)
Maximum Number of Pools 128
Shared Folder Type Thick, Thin, Static
Maximum Shared Folder Size QuTS Hero: 1024TB; QTS: 250TB
Maximum Number of Shared Folders QuTS Hero: 256; QTS: 512
JBOD Expansion Yes
VJBOD / VJBOD Cloud Yes

iSCSI & Fiber Channel
iSCSI Service Yes
Fiber Channel Service Yes
LUN Type Thick, Thin
File-based LUN Yes (QTS)
Block-based LUN Yes (QuTS Hero)
Max LUN Size QuTS Hero: 1024TB; QTS: 250TB
Max Targets/LUN 256
LUN Features Mapping, Masking, WWPN Import/Export, FC Port Group/Binding, Multipath IO, Online Expansion, Snapshot, Replication, Clone

Snapshots & Caching
Shared Folder Snapshot Yes
LUN Snapshot Yes
Minimum Snapshot Interval QuTS Hero: 1 min; QTS: 5 min
Snapshot Retention Yes
Self-serve Snapshot Recovery Yes
Application-consistent Snapshot Yes
Snapshot Clone Full clone, Instant clone (QuTS Hero)
SSD Read-only Cache Yes
SSD Read/Write Log Cache Yes
SSD Write-only Cache Yes (QTS)
SSD Dedicated ZIL Cache Yes (QuTS Hero)
SSD Cache RAID QuTS Hero: 0,1,10 (journal); QTS: 0,1,5,6,10
SSD Profiling Tool Yes
SSD Trim & Life Estimation Yes

File & Network Services
File Server Windows SMB/CIFS, Mac AFP, Linux/UNIX NFS v3/v4
FTP Server FTP, SFTP, TFTP, FTPS, FXP
Max FTP Connections 1024
Shared Folder Compression & Deduplication Yes
WORM Yes
Object Storage Yes
Qsync Yes; 64 versions, Windows/macOS/Ubuntu/Android/iOS
HybridMount Yes; concurrent connections 80/80 (QuTS Hero)
HBS (Hybrid Backup Sync) NAS-to-NAS, Cloud Backup, Cloud Sync, 2-way sync, Apple Time Machine, External drive backup; Max jobs: 400
Hyper Data Protector Yes
Boxafe Yes
Office 365 & Google Workspace Backup Yes
Qsirch Yes
QuMagie Yes; AI-assisted photo management
Antivirus Free + McAfee (License)

Virtualization & Container
Virtualization Station Yes; Windows/Linux/Unix/Android VMs; import/export, clone, snapshot, backup/restore; Virtual Switch, GPU pass-through (QuTS Hero), Suggested 12 VMs
Container Station Yes; LXC/LXD, Docker; Docker Hub Registry; Console Mode; Import/Export
Linux Station Yes; Ubuntu 16.04/18.04/20.04 (Container Station), Center management

QVR Surveillance
QVR Pro Index database based; Perpetual License; H.264; 8 free channels
QVR Elite Standard MP4; Subscription; 2 free channels
QVR Pro Client Windows, Mac, HybridDesk, iOS, Android; Dynamic Layout
QVR Center Central log management; Multi-server monitoring
QVR Guard Failover design; Standby/Takeover
QVR Human, Face, DoorAccess Yes

Security & Access
AES 256-bit Encryption Folder (QuTS Hero), Volume (QTS)
2-Step Verification Yes
Firewall Yes
Security Counselor & Malware Remover Yes
Access Control Allow/Deny List, Service Binding, SSH/Telnet/HTTP/HTTPS/FTP/CIFS/SMB/AFP auto-blocking
Network Access Protection Yes
vSphere Web Client Plug-in Yes
VMware vSphere VAAI NAS & iSCSI
Windows ODX Yes
Windows/VMware Snapshot Agent Yes
HTTP/HTTPS TLS 1.0/1.1/1.2/1.3
WebDAV & Virtual Hosts Yes; 32 Virtual Hosts

Management & Utilities
LDAP Server Yes
RADIUS Yes
SQL Server Yes
License Center Yes
Q’center Server & Agent; Connectable
DA Driver Analyzer Yes
Multimedia Console Yes
Photo/Music/Video/Download/Notes Station Yes
Qfiling Yes
Media Streaming Add-on Yes
QmailAgent Yes
QuWAN Yes
Resource Monitor Yes
SNMP v2, v3

Physical & Environmental
Operating Temperature 32–104°F (0–40°C)
Storage Temperature -4–158°F (-20–70°C)
Relative Humidity 5–95% RH non-condensing
Fans 3x 60mm + 1x 80mm, 12VDC
Power Supply 2x 550W CRPS PSU
Dimensions 5.23 x 19.01 x 24.8″ (133 x 483 x 630mm)
Weight 34.48 lbs (15.64 kg)
