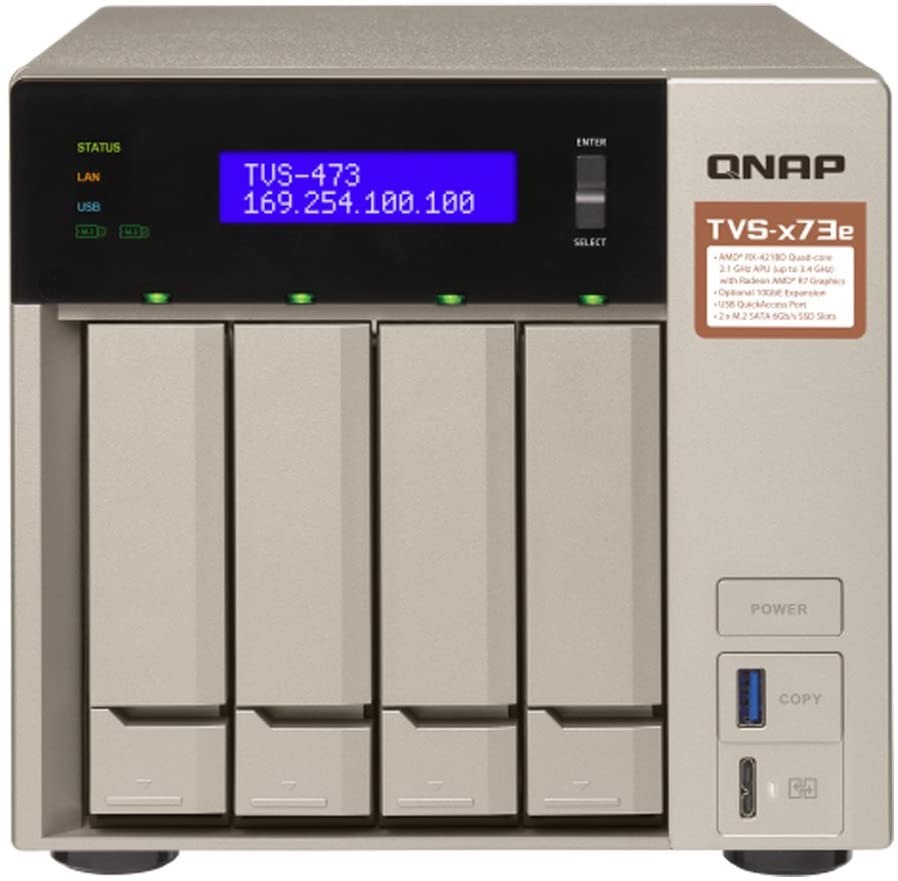

QNAp Turbo TVS-473e-8G-US 4-Bay NAS Server

Add to Wishlist

4,499.00 د.إ

Add to Wishlist

QNAP Turbo TVS-473e-8G-US 4-Bay High-performance 10GbE-enabled business 8GB RAM vNAS Server w/ dual PCIe Expansion Slot – Diskless – Brand New

QNAP Turbo TVS-473e-8G-US 4-Bay High-performance 10GbE-enabled business 8GB RAM vNAS / Virtual Network Attached Storage Server w/ dual PCIe / PCI Express Expansion Slot – Diskless – Brand New

QNAP Turbo TVS-473e-8G 4-bay Network Attached Storage Server includes …

  • 4 x USB 3.0 (1 x Front, 3 x Rear)
  • 4 x Ethernet RJ45 1GbE LAN ports
  • 2 x PCIe 3.0 Slot
  • 8GB (2 x 4GB) DDR4 SODIMM
  • 4 drive bays
  • 2 x M.2 2260 / 2280 SATA 6Gb slots
  • AMD R-Series RX-421BD quad-core 2.1 GHz processor, Turbo Core up to 3.4 GHz
  • Accepts 3.5″ and 2.5″ SATA hard drives and 2.5″ SATA solid state drives
  • Encryption capable

A powerful business NAS with an AMD RX-421BD quad-core APU, up to 64GB DDR4 RAM, and supports dual PCIe slots, USB QuickAccess and HDMI 4K output.

The TVS-473e is powered by a high-end AMD R-Series APU that incorporates an exceptional CPU with AMD Radeon R7 Graphics performance, delivering a high-performance and energy-efficient NAS solution. Built with a state-of-the-art metal design and topped off with a stylish gold finish, the highly-capable TVS-473e provides PCIe expandability, the unique USB QuickAccess port, HDMI 4K@ 30Hz output, and 4K H.264 video decoding and encoding acceleration for an optimum audiovisual experience.

  • Integrated Radeon R7 GPU for 4K video playback.
  • Two PCIe slots support 10GbE adapters, QM2 cards, USB 3.1 10Gbps cards, or wireless network cards.
  • Use the NAS as a PC by attaching a keyboard, mouse, and HDMI display.
  • Qtier auto-tiering technology and SSD caching enable 24/7 optimized storage efficiency.
  • Scalable storage supporting virtualization, containerized apps, centralized storage, backup, sharing, and disaster recovery.
  • RAID 50/60 is recommended for NAS with over 10 disks to strike a balance between capacity, protection, and performance
SKU: TVS-473e-8G-US Category: Tags: ,
Weight 4.9 kg
Model Number TVS-473e-8G / TVS-473e-8G-US
Hardware Specification
CPU
  • Processor: AMD R-Series RX-421BD quad-core 2.1 GHz processor, Turbo Core up to 3.4 GHz
  • Architecture: 64-bit
  • Graphics: Embedded Radeon R7 graphics processor
  • Encryption Engine: AES-NI
System Memory 8 GB DDR4 (2 x 4 GB)
Maximum Memory 64 GB (4 x 16 GB)
Memory Slot 4 x SODIMM DDR4
(For dual- or quad-DIMM configurations, you must use a pair of identical DDR4 modules.)
Flash Memory 512MB DOM
Drive Bay 4 x SATA 6 Gbps
Drive Comaptibility
  • 3.5-inch SATA hard disk drives
  • 2.5-inch SATA hard disk drives
  • 2.5-inch SATA solid state drives
M.2 SSD Slot 2 x M.2 2260/2280 SATA 6Gb/s SSDs Note:
1. The M.2 SSD is not included as standard.
2. M.2 SSD operations can easily generate excessive heat. It is recommended to install a heatsink (from QNAP or a third-party provider) on the M.2 SSD.
SSD Cache Acceleration Support
  • Drive Bays 1 to 4
  • M.2 slots 1 to 2
  • Optional:SSD using PCIe expansion slot
Hot-swappable Yes
The following are not hot-swappable: M.2 SSDs, SSD cache drives, SSDs using PCIe expansion slots.
Gigabit Ethernet Port 4 x RJ45
USB QuickAccess Port USB Micro-B
PCIe Slot 2 x PCIe 3.0 x4
Note: Support 10GbE LAN card, USB 3.1 Gen2 (10Gb/s) expansion card, QM2 card, or PCIe wireless network card.
USB Port 4 x USB 3.0 (Front: 1; Back: 3)
HDMI Output 2 x HDMI 1.4b, up to 3840 x 2160, 30 Hz
Audio
  • 2 x 3.5 mm dynamic microphone jacks
  • 1 x 3.5 mm line-out jack
  • 1 x speaker

Note: You cannot use the speaker(s) and the line-out jack simultaneously
Display Panel Monochrome backlit LCD display with Enter and Select buttons
USB One Touch Copy Front: USB 3.0
IR Sensor QNAP RM-IR004 remote control (MCE compatible) (sold separately)
Form Factor Tower
Dimensions (H x W x D) 188.2 x 199.3 x 279.6 mm
7.41 x 7.85 x 11.01 inch
Net Weight 4.9 kg (10.80 lbs)
Power Consumption (W)
  • HDD standby: 33.24 W
  • In Operation: 56.23 W

(with 4 x 2TB HDDs installed)
Sound Level 21.7 dV(A)
Power Supply Unit 250W, 100-240V AC, 50/60 Hz, 3.5A
Fan System: 1 x 120 mm
CPU: 1 x 60 mm
Operating Temperature and Relative Humidity 0 ~ 40ĖšC ( 32ĖšF ~ 104ĖšF ), 5 ~ 95% RH non-condensing, wet bulb: 27ĖšC (80.6ĖšF)
Security Slot Kensington security slot
