QNAP TVS-872XT-I5-16G-US / TVS-872XT-I5-16G 8 Bay Thunderbolt 3 NAS

Add to Wishlist

AED10,999.00

Add to Wishlist

QNAP TVS-872XT TVS-872XT-I5-16G-US / TVS-872XT-I5-16G Ultra-High Speed 8 Bay Thunderbolt 3 NASĀ

RAID Capable
Hot Swappable

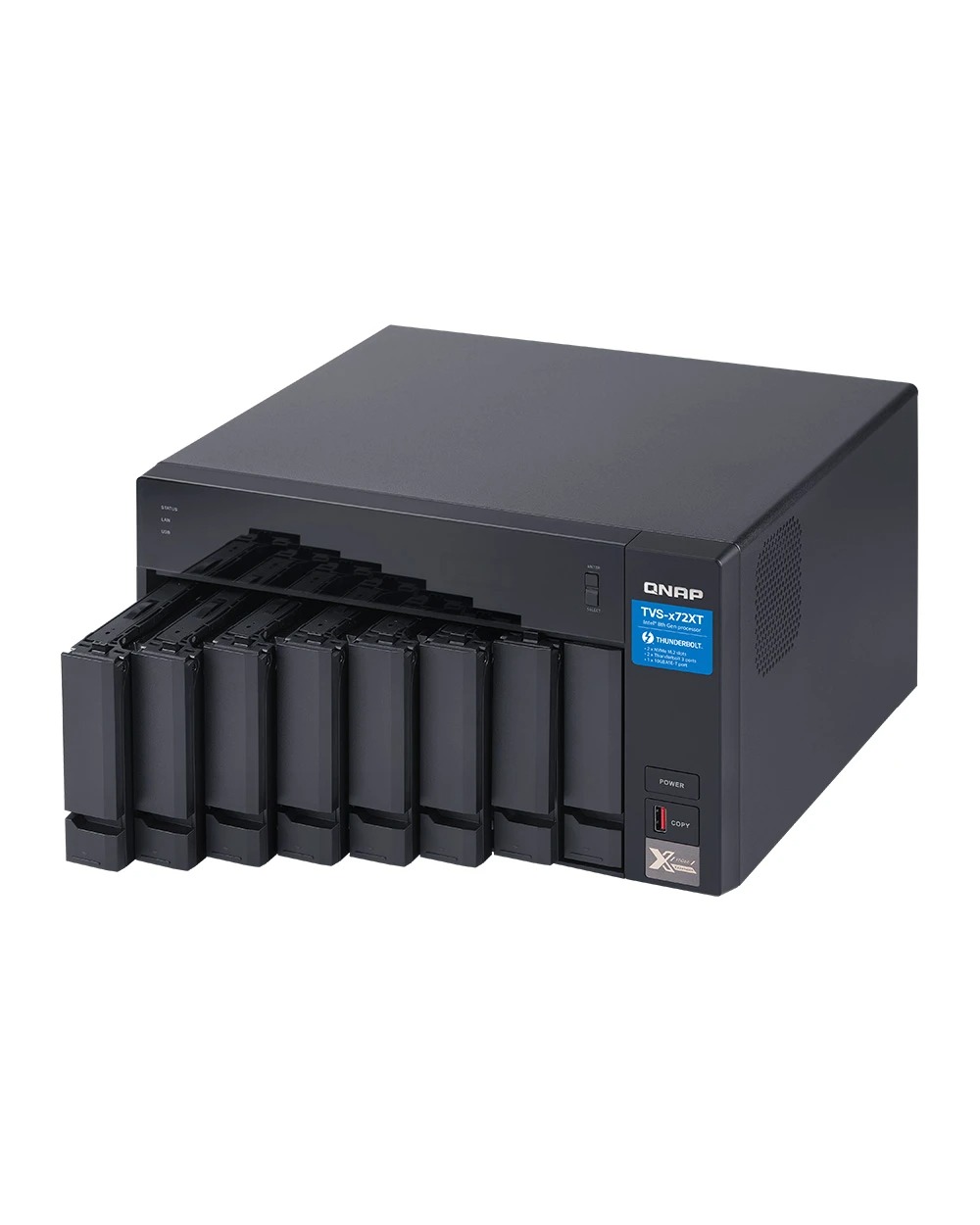

QNAP TVS-872XT 8-Bay NAS Server
Powered by an 8th generation Intel Core i5-8400T 1.7GHz processor, the high-performanceĀ QNAP TVS-872XT 8-Bay NAS ServerĀ features both 10GBASE-T and Thunderbolt 3 high-bandwidth connectivity for tackling heavy workloads and smoothly transferring, displaying and editing 4K videos in real-time. With M.2 SSD support and the ability to install a graphics card, this NAS provides the ability to boost performance and create a scalable working environment for collaboration and high-speed file sharing. TheĀ QNAP TVS-872XT 8-Bay NAS ServerĀ is driven by high-quality hardware that delivers optimum performance, comprehensive multimedia features, expandable storage capacity, and numerous other NAS functionalities to inspire greater creativity and accomplishments!

What It Is And Why You Need It:

  • High-speed Thunderboltā„¢ 3 with SMB protocol, allowing MacĀ® and WindowsĀ® users to collaborate on media editing
  • 5-speed 10GBASE-T RJ45 connectivity accelerates virtualization applications and file sharing across teams and devices
  • PCIe expandability allows for graphics cards or 40GbE/ 25GbE/ 10GbE adapters to increase application performance
  • Install M.2 PCIe (Gen 3 x2, 2 GB/s) NVMe SSDs (sold separately) to set up caching or storage pools, improving file access efficiency
  • 4K media playback and real-time transcoding; directly view creative works on an HDTV via HDMI 2.0 (4K @60Hz) output
  • Snapshots fully record system status and data, allowing you to protect files and data from accidental deletion and malware attacks
SKU: TVS-872XT-I5-16G-US Category: Tags: ,
Model Number TVS-872XT-I5-16G-US / TVS-872XT-I5-16G
Hardware Specification
CPU IntelĀ® Coreā„¢ i5-8400T 6-core 1.7 GHz processor, burst up to 3.3 GHz
Architecture:Ā 64-bit
Graphics: IntelĀ® UHD Graphics 630
Encryption Acceleration Yes
System Memory 16 GB SODIMM DDR4 (2 x 8 GB)
Maximum Memory 32 GB ( 2 x 16 GB)
Memory Slot 2 x SO-DIMM DDR4

(For dual- or quad-DIMM configurations, you must use a pair of identical DDR4 modules.)
Flash Memory 4 GB (Dual boot OS protection)
Drive Bay Hot-swappable 8 x 3.5-inch SATA 6 Gbps bays
Drive Compatibility 3.5-inch bays:

  • 3.5-inch SATA hard disk drives
  • 2.5-inch SATA hard disk drives
  • 2.5-inch SATA solid state drives
M.2 SSD Slot 2 x M.2 2280 PCIe (Gen3 x2) NVMe slots
Thunderbolt Port 2 x Thunderboltā„¢ 3 ports
10 Gigabit Ethernet Port 1 x 10GBASE-T RJ45, supporting 10G/5G/2.5G/1G/100M

Note: Please use CAT6a or CAT 7 LAN cables (sold separately) to achieve 10GbE speed
Gigabit Ethernet Port 2 x RJ45
PCIe Slot Slot 1:Ā PCIe Gen3 x16 (CPU)
Slot 2:Ā PCIe Gen3 x4 (PCH)Note: Slot 1 is pre-installed with a Thunderbolt 3 adapter
USB Port 1 x USB 3.0
2 x Type-C USB 3.1 Gen2 5V/3A 10Gbps
2 x Type-A USB 3.1 Gen2 5V/1A 10Gbps
HDMI Output 1 x HDMI 2.0, up to 3840 x 2160, @60Hz
Audio
  • 1 x 3.5 mm dynamic microphone jack
  • 1 x 3.5 mm line-out jack
  • 1 x speaker

Note: You cannot use the speakers and the line-out jack simultaneously.
IR Sensor Supports QNAP RM-IR004 remote control
LED Indicators HDD 1-8, Status, LAN, USB port, M.2 port
Burrons Power, Reset, USB One-touch-copy
Form Factor Tower
Dimensions (H x W x D) 188.2 x 329.3 x 279.6 mm
7.4 x 12.9 x 11 inch
Weight Net: 7.06 kg (15.56 lbs)
Gross: 9.19 kg (20.26 lbs)
Power Supply Unit 250W, 100-240V
Power Consumption (W) HDD standby: 41.47 W
In operation: 65.03 W
(with WD10EFRX drives fully populated)
Fan System: 2 x 12cm fan (12V DC)
CPU: 2 x 6cm blower fan
Sound Level Sound pressure (LpAm): 24.2 dB(A)
System Warning Voice prompts or Buzzer
Operating Temperature & Relative Humidity 0 ~ 40ĖšC ( 32ĖšF ~ 104ĖšF ), 5 ~ 95% RH non-condensing, wet bulb: 27ĖšC (80.6ĖšF)
Security Slot Kensington security slot
