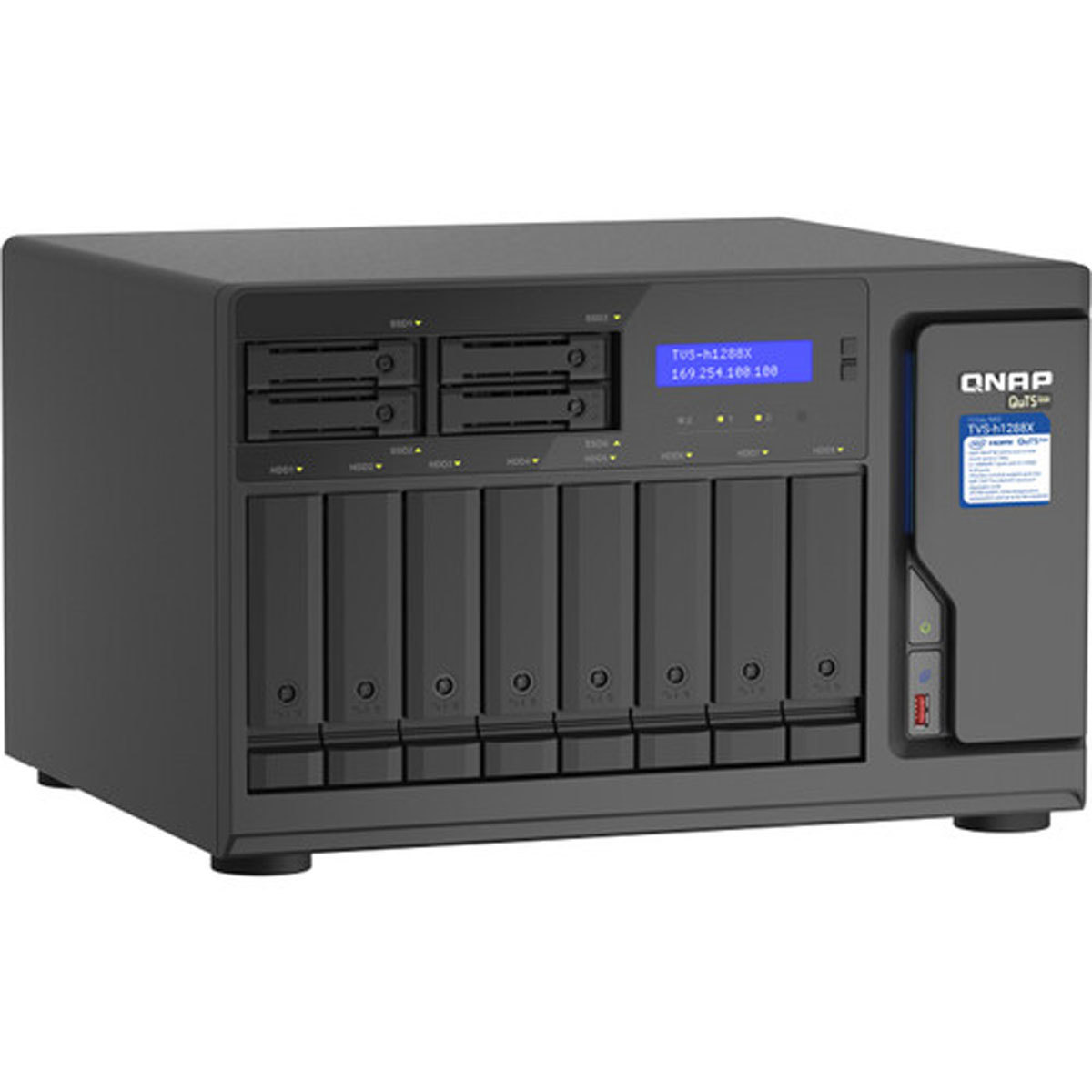

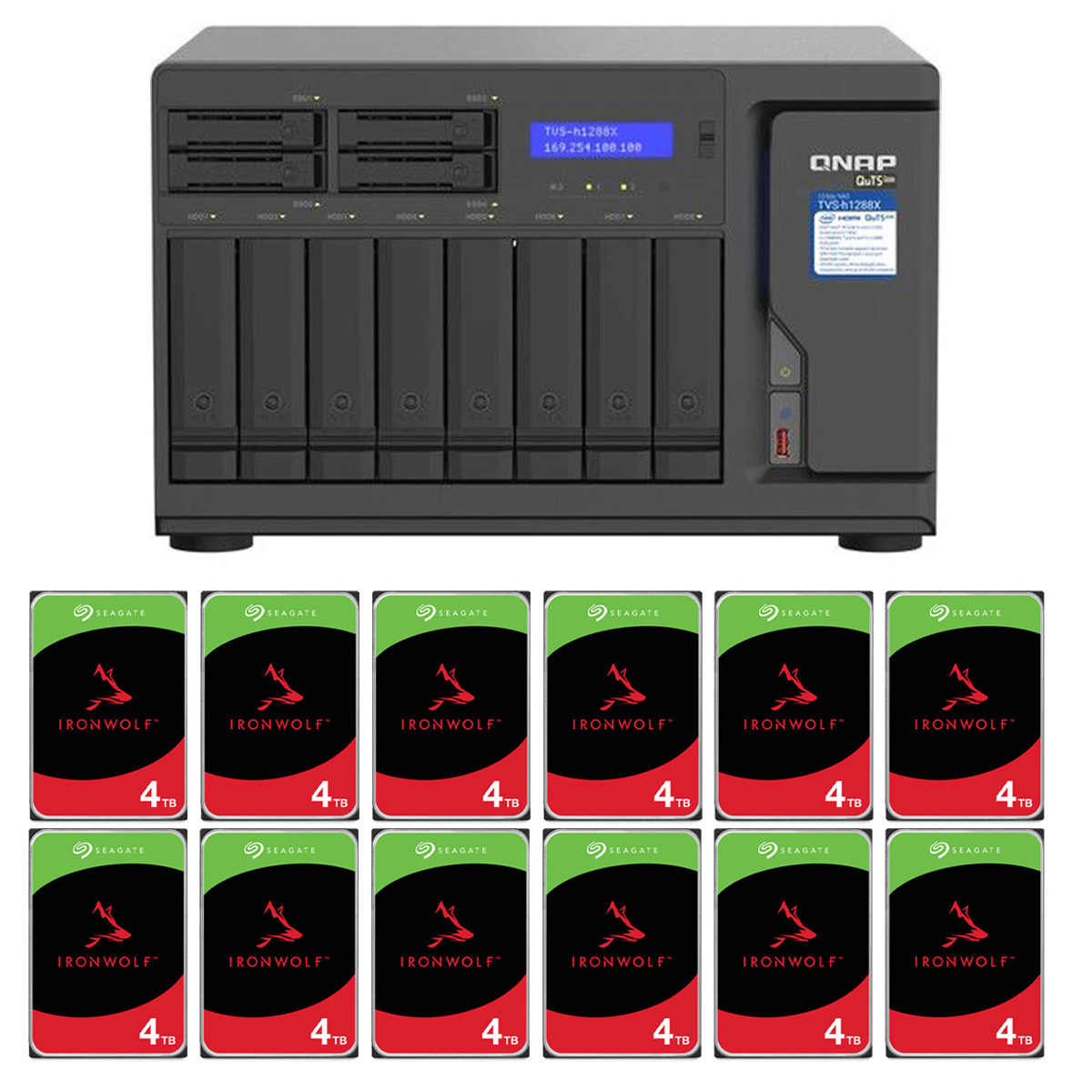

QNAP TVS-H1288X High Speed 12-Bay Thunderbolt 3 NAS Enclosure, Bundle with 12x IronWolf 4TB SATA III 3.5″ Internal NAS HDD
Key Features
- This QNAP NAS enclosure provides reliable backup for all your critical business data, worry-free.
- Enjoy fast performance with this high-speed Thunderbolt 3 NAS, perfect for demanding applications.
- With 48TB storage capacity, this NAS server is ideal for large media libraries or extensive archives.
- Set up remote access to your files with this NAS, enabling secure collaboration from anywhere.
- Ensure data security with advanced encryption, protecting your sensitive files on this QNAP NAS.
- Easy setup and management makes this NAS enclosure a great choice for both novice and expert users.
AED24,099.00
About QNAP TVS-H1288X
Just imagine elevating your creative and business operations with the QNAP TVS-H1288X High-Speed 12-Bay Thunderbolt 3 NAS Enclosure, bundled with 12x IronWolf 4TB SATA III 3.5″ Internal NAS HDDs. This formidable NAS enclosure is driven by an Intel Xeon W-1250 6-Core 3.3GHz processor, delivering an exceptional platform for high-speed media collaboration, virtual machine applications, and demanding business tasks. Designed to accommodate two QNAP QXP-T32P Thunderbolt 3 PCIe expansion cards (available separately), it can support up to four Thunderbolt 3 ports, making it an ideal choice for Thunderbolt-equipped Mac and Windows users seeking seamless media collaboration.
The TVS-H1288X is equipped with built-in 10GbE and 2.5GbE connectivity, featuring Port Trunking and failover capabilities to meet the rigorous bandwidth and reliability requirements of business applications. It operates on the ZFS-based QuTS hero operating system, which offers advanced features such as block-level inline data deduplication and compression, near-limitless snapshots, real-time SnapSync, and read/write cache technologies. With dual-channel modules and four Long-DIMM slots, this NAS enclosure supports DDR4 ECC memory upgrades up to 128 GB, making it perfect for memory-intensive and complex multitasking workloads.
Experience 4K media playback and real-time transcoding, with the ability to output videos directly to an HDMI display at up to 4K @30Hz. The TVS-H1288X supports virtual machines, containerized apps, centralized storage, backup, sharing, disaster recovery, and storage expansion. By installing two QXP-T32P expansion cards in the PCIe Gen 3 x4 slots, you can achieve quad-port Thunderbolt 3 connectivity, allowing up to four Thunderbolt-equipped workstations to connect to the TVS-H1288X. This enhances teamwork efficiency in 4K workflows, file storage, backup, and sharing.
Equipped with Intel UHD Graphics P630, the TVS-H1288X supports hardware decoding and real-time transcoding. The HDMI output supports resolutions up to 4K (4096 x 2160p) @30Hz, ideal for applications demanding high-resolution and color realism. The enclosure includes four 2.5-inch SATA 6Gb/s drive bays for SSDs and two M.2 NVMe Gen 3 x4 SSD slots, offering flexible SSD caching to boost IOPS performance, reduce storage volume latency, and optimize 2.5GbE/10GbE performance.
Running on the robust ZFS-based QuTS hero operating system, the TVS-H1288X provides flexible storage management, comprehensive data protection, and optimized performance to meet the complex demands of modern IT environments. In summary, the QNAP TVS-H1288X High-Speed 12-Bay Thunderbolt 3 NAS Enclosure is a powerful, versatile, and reliable solution tailored to meet your business and creative needs.
QNAP TVS-H1288X Features
-
Six cores up to 4.7 GHz with up to 128 GB DDR4 ECC memory
-
Streamline video editing and 4K workflows with Thunderbolt 3 connectivity
-
Thunderbolt 3 + 10Gb Ethernet: perfect for studios and post-production houses
-
Adobe Premiere Pro and Final Cut Pro collaboration
-
Quick access with Qfinder Pro
-
Blazing-fast 10GbE/5GbE connectivity for Mac/Windows
-
Dual 10GbE connectivity optimizes high-speed data transfer
-
Direct 4K HDMI output
-
Set SSD caching to boost IOPS with M.2 NVMe SSD
-
ZFS-based QuTS hero operating system enhances NAS performance and data integrity
-
Data reduction improves storage efficiency and performance
-
Multi-level cache technology
-
RAID Z enables robust data protection
-
QSAL (QNAP SSD Antiwear Leveling) enhances data protection
-
App Center ecosystem extends NAS functionality
-
Inline data deduplication, compression, and compaction drives big data storage efficiency
-
Real-time SnapSync ensures minimal RPO with real-time disaster recovery
-
Snapshots multiply backup protection
Hardware
| Category | Details |
|---|---|
| CPU | Intel Xeon W-1250 6-core 3.3 GHz processor (boost up to 4.7 GHz) |
| CPU Architecture | 64-bit x86 |
| Graphic Processors | Intel UHD Graphics P630 |
| Floating Point Unit | Yes |
| Encryption Engine | Yes (AES-NI) |
| Hardware-accelerated Transcoding | Yes |
| System Memory | 16GB ECC UDIMM DDR4 (2x 8 GB) |
| Maximum Memory | 128 GB (4x 32 GB) |
| Memory Slot | 4x Long-DIMM DDR4 |
| Flash Memory | 5GB (Dual boot OS protection) |
| Drive Bay | 8x 3.5″ SATA 6Gb/s, 3Gb/s + 4x 2.5″ SATA 6Gb/s, 3Gb/s |
| Drive Compatibility | 3.5″ bays: 3.5″ SATA HDDs, 2.5″ SATA HDDs, 2.5″ SATA SSDs 2.5″ bays: 2.5″ SATA SSDs |
| Hot-swappable | Yes |
| M.2 SSD Slot | 2x M.2 22110/2280 NVMe PCIe Gen3 x4 slots |
| SSD Cache Acceleration Support | Yes |
| Ethernet Port | 2.5 Gigabit (2.5G/1G/100M): 4 (also support 10M) 5 Gigabit: Optional via adapter |
| 10 Gigabit Ethernet Port | 2x 10GBASE-T (10G/1G) |
| 25 Gigabit Ethernet Port | Optional via adapter |
| Wake on LAN (WOL) | Yes (only the 2.5GbE port) |
| Jumbo Frame | Yes |
| Thunderbolt Port | Optional via QXP-T32P 2-port Thunderbolt 3 PCIe adapter |
| PCIe Slot | 3 (Slot 1: PCIe Gen3 x8, Slot 2: PCIe Gen3 x4, Slot 3: PCIe Gen3 x4) |
| USB 3.2 Gen 2 (10Gbps) Port | 2x Type-C, 3x Type-A |
| HDMI Output | 1x HDMI 1.4b (up to 4096 x 2160 @ 30Hz) |
| Form Factor | Tower |
| LED Indicators | System status, LAN, USB, Disk 1-12, M.2 SSD 1-2 |
| LCD Display/Button | Yes |
| Buttons | Power, Reset, USB Auto Copy |
| Operating Temperature | 32°F – 104°F (0°C – 40°C) |
| Storage Temperature | -4°F – 158°F (-20°C – 70°C) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27°C (80.6°F) |
| Power Supply Unit | 550W PSU, 100-240V |
| Power Consumption | HDD Sleep: 85.216 W Operating (Typical): 97.492 W (with drives fully populated) |
| Fan | System fan: 3x 80mm, 12VDC CPU fan: 2x 97mm, 12VDC |
| Sound Level | 26 db(A) |
| System Warning | Buzzer |
| Kensington Security Slot | Yes |
| Max. Number of Concurrent Connections | 10,000 (with Max. Memory) |
| Dimensions (H x W x D) | 9.24 x 14.56 x 12.59″ (23.4 x 36.9 x 31.9 cm) |
| Weight | 24.85 lbs (11.2 kg) |
Software
| Category | Details |
|---|---|
| Operating System | QuTS hero 4.5.0 (embedded Linux) |
| Supported Client OS | macOS 10.10+, Ubuntu 14.04+, CentOS 7, RHEL 6.6, SUSE 12+, IBM AIX 7, Solaris 10+, Windows 7/8/10, Windows Server 2008 R2–2019 |
| Supported Browsers | Safari 7+, Chrome, IE 10+, Firefox |
| Supported Languages | Chinese (Traditional & Simplified), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish, Swedish, Thai, Turkish |
| Supported File Systems | Internal: ZFS External: EXT3, EXT4, NTFS, FAT32, HFS+, exFAT |
| Network & Virtual Switch | Dual stack (IPv4/IPv6), Jumbo frame, DHCP server/client, RADVD, USB Wi-Fi adapter, Static Route, NCSI, DDNS (custom/multiple services), Port trunking (7 modes), NAT, STP, T2E (Thunderbolt to Ethernet), SDN switch mode |
| Web Server | HTTP/HTTPS (TLS 1.0/1.1/1.2), WebDAV, Virtual Host (max 32), Importable SSL certificate |
| Security | Auto-block (SSH, Telnet, HTTP(S), FTP, SMB, AFP), Host access control, AES-256 FIPS 140-2 validated folder encryption, AES-256 external drive encryption, SSL certs (Let’s Encrypt), Instant alerts (email, SMS, push, audio, LCD), 2-step verification |
| Storage Management | RAID hot spare/global hot spare, Rebuild speed control, Pool over-provisioning, SSD TRIM, S.M.A.R.T. migration & tests, Bad block recovery, Secure erase, IronWolf Health, Checksums, Silent error detection, Pool scrub, Quotas, Online expansion/shrink, Deduplication, Compression, WORM, Expansion with JBOD, SSD cache, RAID (0/1/5/6/10/50/60/Triple Parity/Triple Mirror), Pools up to 1PB, 128 pools, 256 shared folders, Snapshots (65,536 max, 1-min interval), Remote/local restore, Replica, Vault, Unified Snapshot Directory, Windows Previous Versions, Agents for Windows/VMware |
| iSCSI | Multi-LUN targets, Mapping, Masking, Expansion, SPC-3, MPIO, iSER with VMware, Snapshots, Backups, Virtual disks via initiator |
| Fibre Channel (optional) | Protocol support, LUN mapping/masking, WWPN alias import/export, FC port group/binding, MPIO, Expansion, Snapshots, Cloning |
| VJBOD Cloud | Backup to cloud (Amazon, Azure, Google, etc.), One-to-one mapping, Recovery points (20), Local stored mode |
| Notification Center | SMS, Email (Outlook), IM apps (Skype, Messenger), Custom rules, Multi-language support (23), History/overview |
| Power Management | Wake-on-LAN, IPMI module, Drive standby, Scheduled on/off, Auto power recovery, UPS SNMP |
| Access Rights | Multi-user creation/import, Quotas, Local access control, App access control, Subfolder permissions |
| Domain Authentication | AD/LDAP support, Domain login, Max 200,000 users/groups |
| myQNAPcloud | Free DDNS, SSL certs, Auto UPnP, Web file manager (HTTPS 2048-bit), Link for remote access |
| Qsync | Multi-device sync, Selective sync, Team folders, Versioning (64), Central config, Remote erase, Client apps (Win/Mac/Linux/Android/iOS) |
| Resource Monitor | CPU, memory, network, storage, apps, swap with SSD |
| Helpdesk | Remote support with consent, Auto logs |
| Web Desktop Admin | Multi-window GUI, Toolbar/dashboard, SNMP v2/3, Logs, Syslog server/client, Backup/restore, Qmanager app, Qboost |
| File Server | SMB, AFP, NFS v3/v4, Windows ACL, Aggregation |
| FTP Server | FTP, SFTP, TFTP, FTPS, FXP |
| File Station | File restore, Viewing/editing via Office Online/Google Docs, ISO mounting (256), Smartphone mount, Optical disc access, Compression, Public sharing (password/expiry), Previews, Transcoding, Subtitles, Slideshow |
| Qfiling | Auto-filing, Archiving, Filters, Conflict policy |
| HBS (Hybrid Backup Sync) | Cloud backup/sync (Amazon, Azure, Google, Dropbox, etc.), RTRR, Rsync, Local/remote backup, Versioning, Time Machine, Veeam/Acronis/Nakivo/Veritas, Max 400 jobs |
| Multimedia Console | Indexing, Transcoding, Thumbnails, Management, 240p–1080p transcode, Video2Audio, Subtitles |
| QuMagie | AI photo management, Albums, Classification |
| Music Station | Streaming, Sharing, Radio, Lyrics, Qmusic app |
| Video Station | Organization, Collections, Sharing, Metadata, Subtitles, Upload (YouTube/Youku), Multi-zone display, Qvideo app |
| Virtualization Station | VM creation, Import/export, Snapshots, HDMI console, HTML5 remote, GPU passthrough |
| Container Station | LXC/Docker, Hub registry, Import/export, Repos, Auto-start |
| Qsirch | Full-text search, Filters, Operators, Previews, Extensions |
| QVPN | VPN server (PPTP, L2TP/IPSec, OpenVPN, QBelt), Max 100 clients, VPN client mode, Logs |
| DLNA Server | UPnP/DLNA TVs & players, Cue sheet support |
| Q’center | Multi-NAS monitoring/configuration |
| Qfinder Pro | NAS discovery, Mounting, Config, QuickAccess/Thunderbolt, Media upload |
| App Center | Add-ons, Auto updates, Repos |
| Chromecast | Cast video, photo, music via QNAP apps |
| Download Station | PC-less downloads (BT, FTP, HTTP, etc.), 90 concurrent jobs, RSS, Add-ons, Qget app |
| Notes Station 3 | Evernote import, YouTube embed, Table editor |
| HD Station | HDMI playback, Browsers, Multi-language input, User login |
| Linux Station | Ubuntu VM environment |
| Qcontactz | Contact sync/import/export, Grouping, Android/iOS support |
| IFTTT Agent | Automation, Social archiving, Cloud sync, Event notifications, Alexa/Echo integration |
| Qmiix Agent | Trigger-based automation with apps/cloud |
| Security Counselor | Security scanning, Antivirus, Anti-malware, Advisories |
| Malware Remover | Detects/removes malware |
