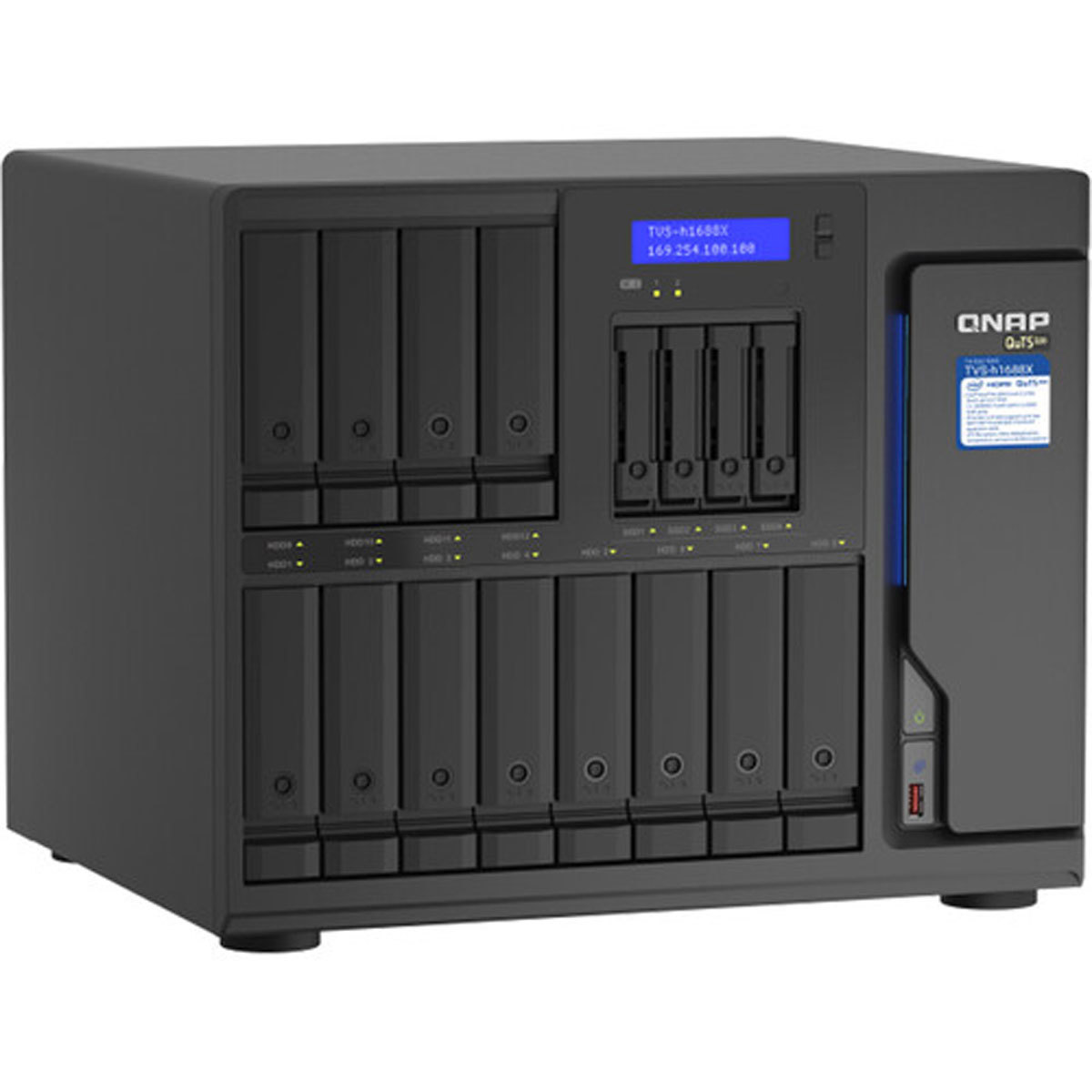

QNAP TVS-H1688X High Speed 16-Bay Thunderbolt 3 NAS Enclosure, Bundle with 16x Seagate IronWolf Pro SATA III 3.5″ Internal NAS Hard Drive, 7200 RPM
Key Features
- Unleash peak performance with the Intel Xeon CPU in this QNAP 16-bay NAS enclosure.
- This NAS bundle includes 16x 6TB IronWolf drives for a total storage capacity of 96TB.
- Ensure data security with advanced RAID configurations and snapshot protection features.
- Experience fast performance with 10GBASE-T Ethernet, ideal for large file transfers.
- Enjoy remote access to your files from anywhere, ensuring your data is always within reach.
- Set up your NAS easily with QNAP’s intuitive interface for reliable data management.
AED40,799.00
About QNAP TVS-H1688X
Become a powerhouse of data storage and management with the TVS-H1688X High-Speed 6-Bay Thunderbolt 3 NAS Enclosure. Engineered with an advanced Intel Xeon W-1250 6-Core 3.3GHz processor, this high-capacity NAS enclosure is designed to handle demanding tasks with ease, making it an ideal choice for professionals in need of reliable, high-speed data storage and transfer.
The TVS-H1688X is equipped with 32GB ECC UDIMM DDR4 RAM, providing ample memory for complex multitasking workloads. It also offers the potential for memory expansion up to 128GB, catering to memory-intensive applications. The NAS enclosure operates without a hard drive (HDD), giving you the flexibility to customize your storage capacity according to your specific needs.
This high-speed NAS enclosure features a Thunderbolt 3 interface, enabling fast data transfer and making it a perfect match for Thunderbolt-equipped Mac and Windows users. It also supports the installation of two QNAP QXP-T32P Thunderbolt 3 PCIe expansion cards (sold separately) to achieve quad-port Thunderbolt 3 connectivity, enhancing collaboration in high-speed media environments.
The TVS-H1688X also boasts built-in 10GbE and 2.5GbE connectivity, supporting Port Trunking and failover to meet the bandwidth and reliability demands of business applications. It runs on the ZFS-based QuTS hero operating system, supporting block-level inline data deduplication and compression, near-limitless snapshots, real-time SnapSync, and read/write cache technologies. This ensures reliable performance for a range of tasks, from creative workflows to file server, virtualization server, and efficient file backup and recovery applications.
With the capacity to hold up to 16 hard drives, the TVS-H1688X offers a large amount of storage space for both personal and professional use. Its robust construction and reliable performance make it a trusted choice in the NAS industry, backed by the reputable brand of QNAP.
Whether you’re a creative professional in need of a high-performance storage solution or a business looking for a reliable data management system, the TVS-H1688X High-Speed 6-Bay Thunderbolt 3 NAS Enclosure offers the advanced features and high-speed performance you need to stay ahead.
QNAP TVS-H1688X Features
-
Six cores up to 4.7 GHz with up to 128 GB DDR4 ECC memory
-
Streamline video editing and 4K workflows with Thunderbolt 3 connectivity
-
Thunderbolt 3 + 10Gb Ethernet: perfect for studios and post-production houses
-
Adobe Premiere Pro and Final Cut Pro collaboration
-
Quick access with Qfinder Pro
-
Blazing-fast 10GbE/5GbE connectivity for Mac/Windows
-
Dual 10GbE connectivity optimizes high-speed data transfer
-
Direct 4K HDMI output
-
ZFS-based QuTS hero operating system enhances NAS performance and data integrity
-
Inline data deduplication, compression, and compaction drives big data storage efficiency
-
Real-time SnapSync ensures minimal RPO with real-time disaster recovery
-
The TVS-h1688X also supports snapshots and remote backup to help organizations accomplish routine backup tasks cost-effectively and efficiently
-
Snapshots multiply backup protection
-
HBS simplifies 3-2-1 backup plans
-
All-in-one virtual machine and container hosting solution
-
Virtualization Station
-
Container Station
-
License-free VMware and Hyper-V backup appliance
QNAP TVS-H1688X Specifications
| Category | Specification |
|---|---|
| CPU | Intel Xeon W-1250 6-core 3.3 GHz processor (boost up to 4.7 GHz) |
| CPU Architecture | 64-Bit x86 |
| System Memory | 32 GB ECC UDIMM DDR4 (2 × 16 GB) |
| Maximum Memory | 128 GB (4 × 32 GB) |
| Memory Slot | 4 × Long-DIMM DDR4 |
| Flash Memory | 5 GB (Dual boot OS protection) |
| Drive Bay | 12 × 3.5″ SATA 6 Gb/s, 3 Gb/s + 4 × 2.5″ SATA 6 Gb/s, 3 Gb/s |
| Drive Compatibility | 3.5″ SATA HDD / 2.5″ SATA HDD / 2.5″ SATA SSD |
| 2.5″ Bays | 2.5″ SATA SSD |
| Hot-Swappable | Yes |
| M.2 SSD Slot | 2 × M.2 22110/2280 NVMe PCIe Gen3 x4 slots |
| SSD Cache Acceleration Support | Yes |
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 4 (also supports 10M) |
| 5 Gigabit Ethernet Port | Optional via adapter (5G/2.5G/1G/100M) |
| 10 Gigabit Ethernet Port | 2 × 10GBASE-T (10G/1G) |
| 25 Gigabit Ethernet Port | Optional via adapter |
| Wake on LAN (WOL) | Yes |
| Graphic Processors | Intel UHD Graphics P630 |
| Floating Point Unit | Yes |
| Encryption Engine | Yes (AES-NI) |
| Hardware-Accelerated Transcoding | Yes |
| Jumbo Frame | Yes |
| Thunderbolt Port | Optional via QXP-T32P 2-port Thunderbolt 3 PCIe adapter |
| PCIe Slot | 3 (Slot 1: PCIe Gen3 x8, Slot 2: Gen3 x4, Slot 3: Gen3 x4) |
| USB 3.2 Gen 2 (10 Gbps) Port | 2 × Type-C, 4 × Type-A |
| HDMI Output | 1 × HDMI 1.4b (up to 4096 × 2160 @ 30 Hz) |
| Form Factor | Tower |
| LED Indicators | System status, LAN, USB, Disk 1–16, M.2 SSD 1–2 |
| LCD Display/Button | Yes |
| Buttons | Power, Reset, USB Auto Copy |
| Operating Temperature | 32 °F – 104 °F (0 – 40 °C) |
| Storage Temperature | –4 °F – 158 °F (–20 – 70 °C) |
| Relative Humidity | 5–95% RH non-condensing, wet bulb 27 °C (80.6 °F) |
| Power Supply Unit | 550 W PSU, 100–240 V |
| Power Consumption | HDD Sleep Mode: 91.26 W • Operating: 108.67 W |
| Fan | System: 3 × 80 mm, 12 VDC • CPU: 2 × 97 mm, 12 VDC |
| Sound Level | 25.8 dB(A) |
| System Warning | Buzzer |
| Kensington Security Slot | Yes |
| Dimensions (H × W × D) | 11.96 × 14.56 × 12.59 in (30.4 × 36.9 × 32 cm) |
| Weight | 29.56 lbs (13.4 kg) |
Software
| Category | Specification |
|---|---|
| Operating System | QuTS hero 4.5.0 (embedded Linux) |
| Supported Client Operating Systems | macOS 10.10 +, Ubuntu 14.04 +, CentOS 7, RHEL 6.6, SUSE 12 +, IBM AIX 7, Solaris 10 +, Windows 7/8/10/11, Windows Server 2008 R2 – 2019 |
| Supported Browsers | Safari 7 +, Chrome, Firefox, Internet Explorer 10 +, Edge |
| Supported Languages | Chinese (Traditional/Simplified), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish, Swedish, Thai, Turkish |
| Supported File Systems | Internal: ZFS • External: EXT3/EXT4/NTFS/FAT32/HFS+/exFAT |
| Network & Virtual Switch | IPv4/IPv6 Dual Stack, DHCP Server/Client, NCSI, DDNS, Port Trunking (7 modes), Virtual Switch, STP, Thunderbolt-to-Ethernet Converter |
| Security | AES-256 bit Encryption (FIPS 140-2 CAVP), Firewall, 2-Step Verification, SSL Certificates, Auto-Block, Instant Alerts |
| Storage Management | RAID 0/1/5/6/10/50/60/Triple Parity/Mirror, ZFS, Deduplication, Compression, SSD Trim, WORM, Scrubbing, IronWolf Health Management |
| Snapshots | Up to 65,536 Snapshots, 1 min interval, Local/Remote Restore, Snapshot Replica, Vault, Clone, Windows Previous Versions Support |
| iSCSI (IP SAN) | Multiple LUNs per target, SPC-3, MPIO, MC/S, iSER, Snapshot, Online LUN Resize |
| Fibre Channel (FC SAN) | LUN Mapping, Masking, MPIO, Snapshot Replication, WWPN Alias, Port Binding |
| VJBOD Cloud | Backup to Amazon, Azure, Google, IBM, Alibaba, Wasabi etc. Supports 20 recovery points |
| Notification Center | SMS/Email/IM Alerts, Custom Rules, Multiple Languages, History View |
| Power Management | Wake-on-LAN, IPMI, Drive Standby, Scheduled Power, UPS Support |
| Access Rights & Domain | AD/LDAP Server & Client, 200,000 User/Group Support, ACLs, Quota Mgmt |
| myQNAPcloud | DDNS, SSL, UPnP, 2048-bit HTTPS Encryption, Remote File Access |
| Qsync | Multi-device Sync, Selective Folders, Version Control (64), Central Mgmt |
| Resource Monitor | CPU, Memory, Network, Storage Utilization Tracking |
| Helpdesk | Remote Support Access (Opt-in), Auto Diagnostic Logs |
| Web Admin | Multi-window UI, Syslog, SNMP v2/v3, Network Recycle Bin |
| File Server | CIFS/SMB, AFP, NFS v3/v4, Windows ACL, Shared Folder Aggregation |
| FTP Server | FTP/SFTP/TFTP/FTPS Support (FXP enabled) |
| File Station | Cloud Mounting, Media Preview, ZIP/7z, Google Docs Integration |
| Qfiling | Automated Archiving, Integrity Check, Conflict Policy |
| HBS (Backup Sync) | RTRR/Rsync, Time Machine, Veeam Support, 400 Backup Jobs Max |
| Multimedia Console | Centralized Transcoding, AI Photo Mgmt, 240p–1080p Video Profiles |
| QuMagie | AI Photo Organization by People/Places/Things |
| Music Station | Web Playback, Streaming, Internet Radio, Qmusic App |
| Video Station | Smart Collections, Metadata, Transcoding, YouTube Upload |
| Virtualization Station | VM Mgmt (Win/Linux/Android), Snapshots, HTML5 Console, GPU Pass-Through |
| Container Station | Docker & LXC, Auto-Start, Private Registry, Hub Integration |
| Qsirch | Full-Text Search with Previews & Filters |
| QVPN Service | PPTP, L2TP/IPSec, OpenVPN, QBelt, 100 Clients Max |
| DLNA Server | Support for DLNA/UPnP TVs, PlayStation, Xbox |
| Q’center | Multi-NAS Monitoring, Config Mgmt, Reports |
| Qfinder Pro | NAS Discovery, QuickAccess, iSCSI Mapping |
| App Center | Official + Community Apps, Auto Update |
| Chromecast | Streaming from File/Music/Photo/Video Station |
| Download Station | HTTP/FTP/BT/PT, RSS, 90 Concurrent Jobs (Max Intel/AMD) |
| Notes Station 3 | Evernote Import, YouTube Embed, Table Editor |
| HD Station | HDMI Output with Chrome/Firefox, Keyboard/Mouse Support |
| Ubuntu Linux Station | Ubuntu 14.04–16.04 Kylin, Remote Desktop Access |
| Qcontactz | Google Sync, CSV/vCard Import/Export, Duplicate Merge |
| IFTTT Agent | Task Automation, Cloud Sync, IoT Integration |
| Qmiix Agent | Trigger-based Automation for NAS Apps & Cloud |
| Security Counselor | Security Policy Checks, Anti-Virus & Malware Integration |
| Malware Remover | Scans & Removes Known Threats Automatically |
