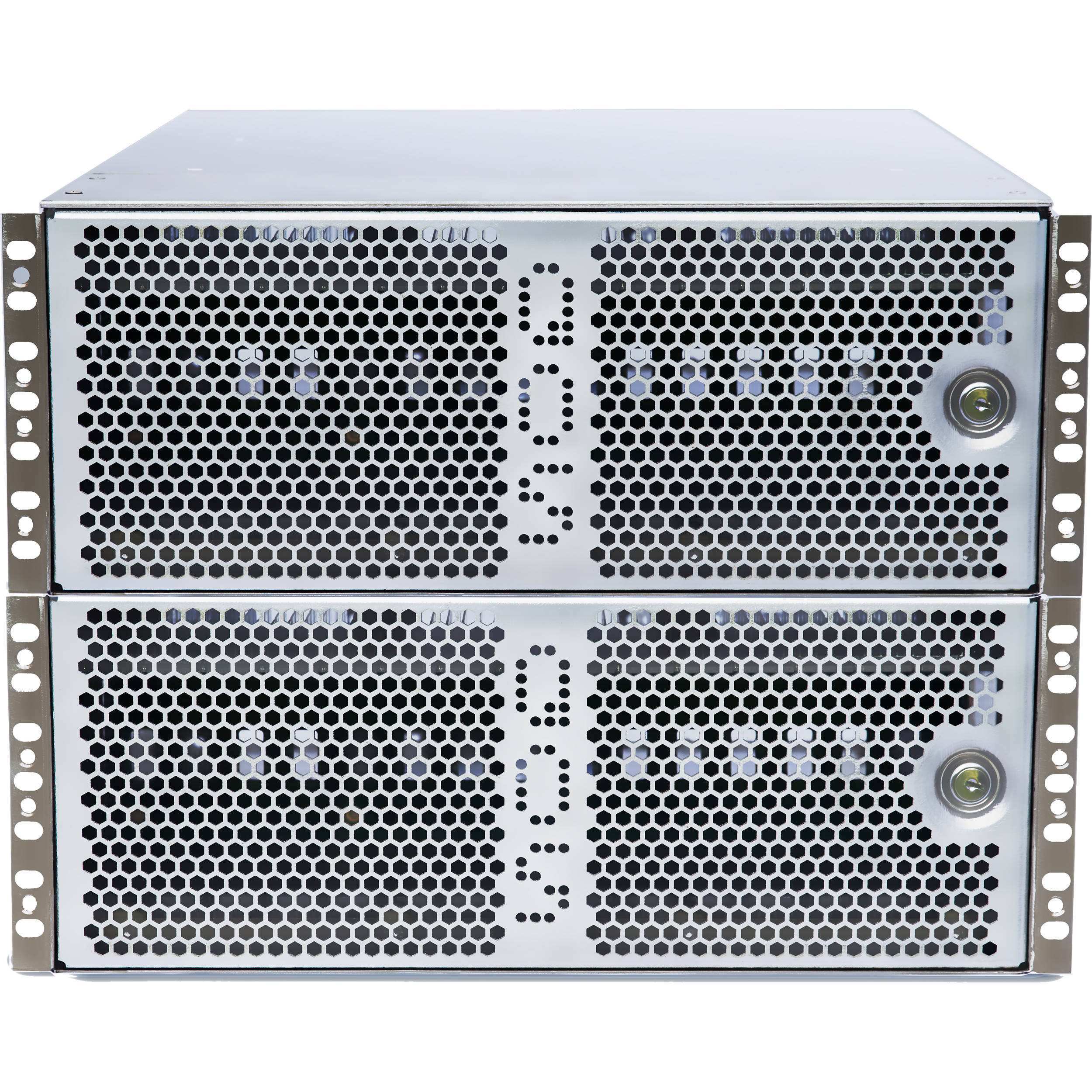

Qos-Eps Production SAN Box 192TB 32-Bay NAS Server (32 x 6TB)

Add to Wishlist

Fast-track your 4K and 8K workflows with the Production SAN Box 192TB 32-Bay NAS Server from Qos-Eps. Designed for taxing video work, this server is specifically tailored to handle media from ARRI, Sony, RED, and Canon cameras.

193,250.00 د.إ

Add to Wishlist

Qos-Eps XL-16X32 External HDD Overview

Fast-track your 4K and 8K workflows with the Production SAN Box 192TB 32-Bay NAS Server from Qos-Eps. Designed for taxing video work, this server is specifically tailored to handle media from ARRI, Sony, RED, and Canon cameras. Sporting 32 3.5″ drive bays with one 6TB SAS 3.0 HDD each, this SAN Box offers a total storage capacity of 192TB in RAID 6. Two 2.5 GHz Intel Xeon Gold 6248 20-Core CPUs facilitate quick processing, alongside 128GB of error-correcting RAM providing transfer rates up to 5000 MB/s. This server also sports dual NVIDIA GeForce RTX 2080 Ti GPUs for fast 3D processing and other video applications. Six PCIe x16 slots and one PCIe x4 slot allow for additional upgrades.

Peripherals can be connected via five USB 3.1 Gen 1 Type-A ports, or via four USB 2.0 ports. Two RJ45 ports support 10-Gigabit Ethernet, and an additional optical S/PDIF connection enables HD audio transfer via TOSLINK. RAID is controlled via two SAS 3.0 controllers. The Qos-Eps Production SAN Box runs on the Windows 10 Enterprise Operating System and features an 8 RU form factor for easy installation in a server rack.

USB 3.1 Gen 1
USB 3.2 Gen 1 features a maximum throughput of 5 Gb/s and is synonymous with USB 3.1 Gen 1 and USB 3.0
SKU: 192TB 32-Bay Category: Tag:

Qos-Eps XL-16X32 External HDD Specs

Computing
CPU 2.5 to 3.9 GHz 20-Core
Processor 2 x Intel Xeon Gold 6248
Total Installed Memory 128 GB ECC 2933 MHz DDR4
User-Replaceable Memory 16 x 8 GB
Total Memory Slots 8
Maximum Memory Capacity 4 TB
# of RAID Controllers Dual
Drives
Storage Capacity 192 TB
Included Drives 32 x 6 TB 3.5″ HDD
Initial RAID Configuration RAID 6
Interface SAS-3
Rotational Speed 7200 rpm
General
Number of Bays 32 x 3.5″
I/O 32 x Mini SAS (SFF-8644) (SAS-3 (12 Gb/s))
5 x USB Type-A (USB 3.1 / USB 3.2 Gen 1 (5 Gb/s))
4 x USB Type-A (USB 2.0 (480 Mb/s))
2 x RJ45 (10GbE)
1 x TOSLINK
Compatible Drive Interface SAS-3, SATA (Unspecified Version)
Form Factor Rackmount (8 RU)
RAID RAID 6
Hot-Swap Support Yes
Transfer Rates 5000 MB/s (Read/Write)
Software
Installed Operating System Microsoft Windows 10 Enterprise
Electrical
AC Input Power 100 to 240 VAC, 50 / 60 Hz
PSU Wattage 1 x 1800 W
Environmental
Operating Temperature 32 to 122°F / 0 to 50°C
Operating Humidity 8 to 90%
Storage Temperature -40 to 158°F / -40 to 70°C
Storage Humidity 5 to 95%
Physical
Dimensions 30 x 17.13 x 14″ / 76.2 x 43.51 x 35.56 cm
Weight 100.0 lb / 45.4 kg
