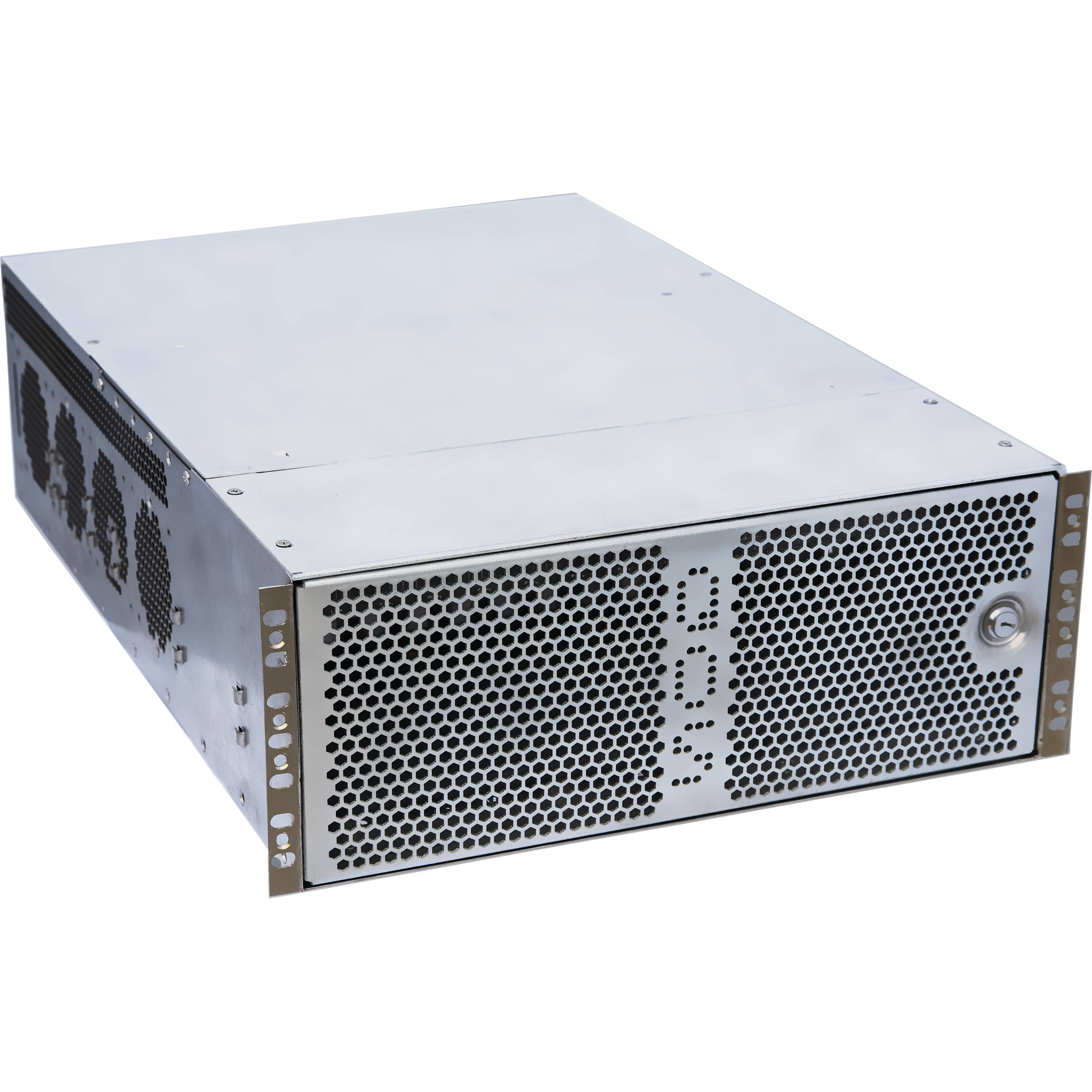

Qos-Eps Production SAN Box 96TB 16-Bay NAS Server (16 x 6TB)


Speed up your 4K and 8K workloads with theĀ Production SAN Box 96TB 16-Bay NAS ServerĀ fromĀ Qos-Eps. Designed to tackle heavy FX and video workloads, this server is configured to handle media from ARRI, Sony, RED, and Canon Cameras. With 16 drive bays holding a 6TB SAS 3.0 HDD each, users can take advantage of 96TB of storage space. A 2.4 GHz Intel Xeon Gold 6212U 24-Core CPU and 128GB of ECC RAM ensure snappy processing while reducing data errors. Additionally, this NAS server features read and write times up to 2500 MB/s for quick transfers and two NVIDIA RTX 2080 Ti GPUs.

136,610.00 د.إ

Qos-Eps L-16X16 External HDDĀ Overview

Speed up your 4K and 8K workloads with theĀ Production SAN Box 96TB 16-Bay NAS ServerĀ fromĀ Qos-Eps. Designed to tackle heavy FX and video workloads, this server is configured to handle media from ARRI, Sony, RED, and Canon Cameras. With 16 drive bays holding a 6TB SAS 3.0 HDD each, users can take advantage of 96TB of storage space. A 2.4 GHz Intel Xeon Gold 6212U 24-Core CPU and 128GB of ECC RAM ensure snappy processing while reducing data errors. Additionally, this NAS server features read and write times up to 2500 MB/s for quick transfers and two NVIDIA RTX 2080 Ti GPUs.

Peripherals can be connected to the Production SAN Box via two USB 3.1 Gen 1 Type-A ports or two USB 2.0 ports. Two RJ45 ports also support 10-Gigabit Ethernet. Furthermore, the inclusion of two x16, and two x8 PCIE expansion slots allow for further upgrades. The SAN Box also incorporates a 16-port SAS 3.0 controller. This server supports ACPI power management and AC power recovery, and incorporates a 4RU rackmount design. The Qos-Eps Production SAN Box runs on the Windows 10 Enterprise Operating System.

SKU: 96TB 16-Bay Category: Tag:

Qos-Eps L-16X16 External HDDĀ Specs

Computing
CPU 2.5Ā toĀ 3.9 GHz 20-Core
Processor 2 xĀ Intel XeonĀ GoldĀ 6248
Total Installed Memory 128 GB ECC 2933 MHz DDR4
User-Replaceable Memory 8 xĀ 16 GB
Total Memory Slots 8
Maximum Memory Capacity 2 TB
# of RAID Controllers Single
Drives
Storage Capacity 96 TB
Included Drives 16 xĀ 6 TB 3.5″ HDD
Initial RAID Configuration RAID 6
Interface SAS-3
Rotational Speed 7200 rpm
General
Number of Bays 16 xĀ 3.5″
I/O 16 xĀ Mini SAS (SFF-8644) (SAS-3 (12 Gb/s))
2 xĀ USB Type-A (USB 3.1 / USB 3.2 Gen 1 (5 Gb/s))
2 xĀ USB Type-A (USB 2.0 (480 Mb/s))
2 xĀ RJ45 (10GbE)
Compatible Drive Interface SAS-3, SATA (Unspecified Version)
Form Factor Rackmount (4 RU)
RAID RAID 6
Transfer Rates 2500 MB/s (Read/Write)
Software
Installed Operating System Microsoft Windows 10 Enterprise
Electrical
AC Input Power 100 to 240 VAC, 50 / 60 Hz
PSU Wattage 1 x 1520 W
Environmental
Operating Temperature 32 to 122°F / 0 to 50°C
Operating Humidity 8 to 90%
Storage Temperature -40 to 158°F / -40 to 70°C
Storage Humidity 5 to 95%
Physical
Audible Alarm Yes
Cooling 5 xĀ 3000 rpm Fans
Cable Length 6′ / 1.83Ā m
Dimensions 30 x 17.13 x 7″ / 76.2 x 43.51 x 17.78Ā cm
Weight 75.0Ā lb / 34.0Ā kg
