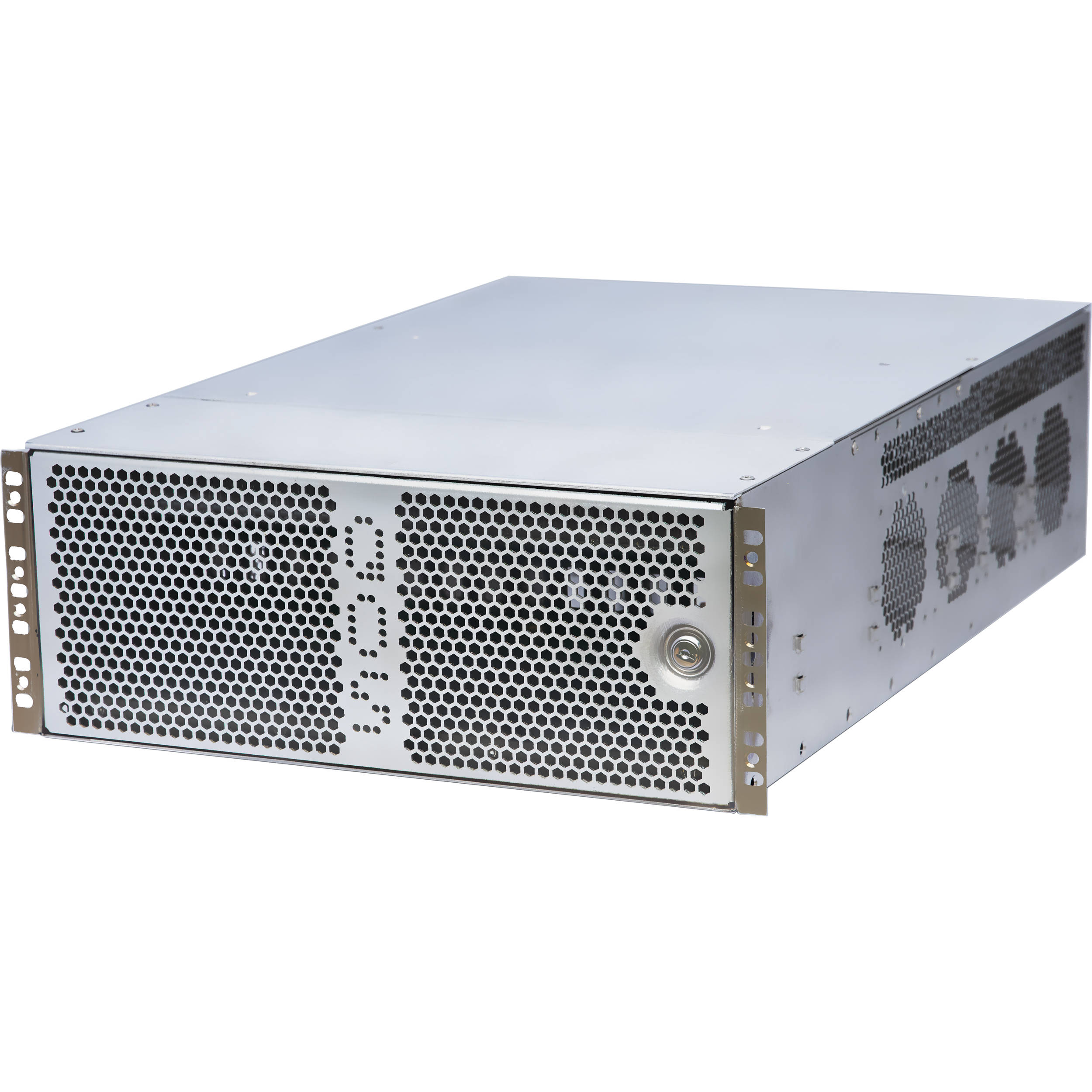

Qos-Eps S16X16 256TB 16-Bay Production Server (16 x 16TB)

Add to Wishlist
  • 256TB Storage Capacity
  • 16 x SAS 3.0 Drive Bays
  • 16 x 16TB 7200 rpm SAS 3.0 HDDs
  • 2.5 GHz Intel Xeon Gold 5215 10-Core CPU
  • 32GB DDR4 RAM
  • 2 x 10Gigabit Ethernet Ports
  • 2 x USB 3.1 Gen 1 | 2 x USB 2.0
  • RAID 6
  • 1 x SAS 3.0 Controller
  • Microsoft Windows Server 2019

119,999.00 د.إ

Add to Wishlist

Qos-Eps S16X16 External HDD Overview

Take advantage of high-speed and high-capacity storage with the 16 x 16TB S16X16 256TB 16-Bay Production Server from Qos-Eps. Intended for media and entertainment applications, as well as VFX work, this production server is configured in RAID 6 and is designed to work with Avid, Adobe, and FinalCut. Sporting 16 bays holding 16TB SAS 3.0 HDDs, this server provides 256TB of storage space. Each server also boasts a 2.5 GHz Intel Xeon Gold 5215 CPU, 32GB of DDR4 RAM, and one SAS 3.0 controller. These internals allow the S16X16 Production Server to attain read and write speeds up to 2500 MB/s. Two USB 3.1 Gen 1 and two USB 2.0 Type-A ports support peripheral connections, while two RJ45 ports support 10-Gigabit Ethernet.

The Qos-Eps S16X16 can be further expanded using two x16 and two x8 PCI-E slots, with one x8 slot also capable of supporting a PCI-E x4 connection. This server also incorporates ACPI power management and power recovery, and supports hot-swapping and auto rebuild. Air cooled, the Qos-Eps S16X16 sports five 100mm fans and features audible alarms in the event of drive failure, RAID loss, or overheating. Additional status monitoring is possible via STMP alerts. Conforming to rackmount standards, the chassis fits 4RU server racks. The Qos-Eps S16X16 256TB 16-Bay Production Server runs on the Windows Server 2019 Operating System.

SKU: 256TB 16-Bay Category: Tag:

Qos-Eps S16X16 External HDD Specs

Computing
CPU 2.5 to 3.4 GHz 10-Core
Processor Intel Xeon Gold 5215
Total Installed Memory 32 GB 2933 MHz DDR4
User-Replaceable Memory 8 x 4 GB
Total Memory Slots 8
Maximum Memory Capacity 2 TB
Drives
Storage Capacity 256 TB
Included Drives 16 x 16 TB 3.5″ HDD
Initial RAID Configuration RAID 6
Interface SAS-3
Rotational Speed 7200 rpm
General
Number of Bays 16 x 3.5″
I/O 2 x RJ45 (10GbE)
2 x USB Type-A (USB 3.1 / USB 3.2 Gen 1 (5 Gb/s))
2 x USB Type-A (USB 2.0 (480 Mb/s))
Compatible Drive Interface SAS-3, SATA (Unspecified Version)
Form Factor Rackmount (4 RU)
RAID RAID 6
Hot-Swap Support Yes
Expansion Up to 64 Drives
PCI Expansion 2 x PCIe 3.0 (x16 Electrical)
2 x PCIe 3.0 (x8 Electrical)
1 x PCIe 3.0 (x4 Electrical)
Transfer Rates 2500 MB/s (Read/Write)
Networking
Supported Protocols SMTP
Software
Installed Operating System Microsoft Windows Server 2019
Electrical
AC Input Power 110 to 240 VAC, 50 / 60 Hz
PSU Wattage 1 x 1250 W
Environmental
Operating Temperature 32 to 122°F / 0 to 50°C
Operating Humidity 8 to 90%
Storage Temperature -40 to 158°F / -40 to 70°C
Storage Humidity 5 to 95%
Physical
Status Monitoring None
Audible Alarm Yes
Cooling 5 x 3000 rpm 100 mm Fans
Cable Length 6′ / 1.83 m
Dimensions 30 x 17.13 x 7″ / 76.2 x 43.51 x 17.78 cm
Weight 50.0 lb / 22.7 kg
