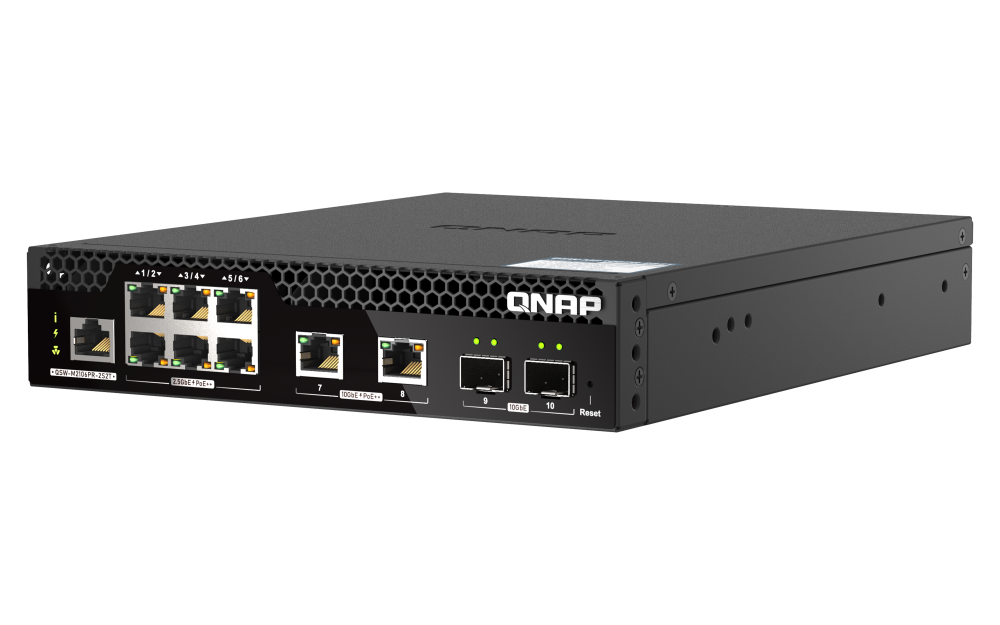

QSW-M2106PR-2S2T-US


  • 6x 2.5GbE 802.3bt PoE++ (90W) ports, 2x 10GbE 802.3bt PoE++ (90W) ports and 2x 10GbE SFP+ fiber ports

2,499.00 د.إ

10GbE/2.5GbE for Ultra-high-speed Wi-Fi Applications

From Wi-Fi 6 to Wi-Fi 6E and even the Wi-Fi 7, ultra-high-speed and high-power APs and Routers are driving up access point uplink requirements. Supporting multiple 10GbE/2.5GbE ports, the QSW-M2106PR-2S2T breaks through the bandwidth limitations of cabled and wireless networks to enhance your storage and access experience. With two 10GbE SFP+ ports for backbone network uplinking capability, the QSW-M2106PR-2S2T provides an ultra-high-speed Wi-Fi 6 wireless network infrastructure solution for small-to-medium businesses, hotels, and stores.

High PoE Capability– up to Eight-port 90W PoE++ and 310 Total Power Budget

The QSW-M2106PR-2S2T is compliant with the IEEE 802.3bt PoE++ standard and offers 2-port 10GbE and 6-port 2.5GbE 90-watt PoE++ capabilities. The QSW-M2106PR-2S2T can supply a total power budget of 310 watts to meet the demands of many high-power devices (PDs) (such as 4K IP cameras, wireless APs, IP phones, LED lights, and digital signage).

Half-width design, two models in 1U

With a half-width rackmount design, a QSW-M2106PR-2S2T can be installed in a 1U rack space with another half-width rackmount switch (such asĀ QSW-M2106R-2S2T) for efficient physical space utilization and tidy cabling.

Note: The optionalĀ SP-EAR-QSW2FOR1-01Ā rackmount kit is required if two half-width rackmount switches are installed.

Flexible deployment with multiple 10G SFP+ fiber and Multi-Gigabit ports

The QSW-M2106PR-2S2T provides two 10GbE SFP+ ports, two 10GbE RJ45 ports and six 2.5 Gigabit ports for connecting various devices and enabling hybrid high-speed networks. With SFP+ interfaces, Direct Attach Copper (DAC) cables can be used for connecting directly to SFP+ devices. You can also use RJ45 ports to connect 10GBASE-T/NBASE-Tā„¢ devices through RJ45 Category 6a (or better) cabling. The switching capacity of the QSW-M2106PR-2S2T is 110Gbps, guaranteeing the full potential of each port.

CAT 5e CAT 6e CAT 6A & CAT 7
100M
1G
2.5G
5G
10G Ā (55m)
(CAT 6: less then 45m)

Note 1: 10GbE SFP+ ports are backward compatible with 1GbE SFP; the 10GbE RJ45 (copper) ports support up to five speeds (10G / 5G / 2.5G / 1G / 100M).
Note 2: If the distance between the switch and the device is less than 45 meters (148 feet), a Cat 6 cable can be used to achieve 10Gb/s speeds.

Dependable performance with effective heat dissipation

With a compact metal body, the QSW-M2106PR-2S2T provides stable and reliable operations while staying near-silent even when under full load. The front-panel LEDs also assist in viewing the current system status.

QSS: Human-centered settings guide

The QSW-M2106PR-2S2T uses the QNAP Switch System (QSS), featuring an easy-to-use Web GUI with Layer 2 management and value-added functions to simplify network set up and management.

Overview Dashboard
Port Management
Setting Guide
Exclusive Status Chart Referencing
Online Firmware Check and Update

Optimize network performance with bandwidth and packet control

The QSW-M2106PR-2S2T provides bandwidth and packet control functions (such as LACP, VLAN, QoS, and IGMP Snooping) to boost network performance through IP grouping and bandwidth management.

  • LACP

    Link Aggregation combines multiple network connections to increase throughput and protect against connection failure.

  • VLAN

    Virtual Networks allows groups of devices from different networks to be combined into a single network.

  • QoS

    QoS (Quality of Service) prioritizes bandwidth usage to optimize network resource allocation.

  • IGMP Snooping

    IGMP snooping assists in minimizing bandwidth loss and preventing network information leakage.

Powerful security and system functions

The QSW-M2106PR-2S2T has powerful security and system functions (including ACL, LLDP, RSTP and Flow Control) to help administrators enhance network reliability using access controls, troubleshooting, loop prevention and avoiding packet loss.

  • ACL

    Filters packets based on rules to offer firewall-like security protection.

  • LLDP

    Allows devices to advertise device information to directly-connected peers/neighbors to simplify troubleshooting processes.

  • RSTP

    Ensures loop-free topology for Ethernet networks by blocking or forwarding traffic.

  • Flow Control

    Balances traffic between a sender and a receiver to avoid network congestion.

Intelligent PoE functions for efficient, centralized PD management

The QSW-M2106PR-2S2T supports intelligent PoE management functions, including scheduling, power supply prioritization, and enabling/disabling power via QSS. You can obtain real-time network connection status and power consumption information of Powered Devices (PD) and configure PDs simultaneously to promote an energy-saving PoE network.

PoE Power Consumption
PoE scheduling and enabling
PoE Power Supply Prioritization

Fully embrace high-speed networking with QNAP!

QNAP offers comprehensive, budget-friendly storage and networking solutions that provide an array of connectivity possibilities. Easily and flexibly upgrade your workplace or home network now to handle bandwidth-hungry applications.

A switch that supports 2.5GbE/10GbE
A fast NAS
Upgrade desktops and servers
Add a 5GbE/10GbE port to laptops

QNAP high-speed switch solutions for diverse business network environments

QNAP provides comprehensive enterprise managed and unmanaged switches with speeds ranging from 2.5GbE, 10GbE to 25GbE and covering PoE, industrial-grade, rackmount, and desktop models. QNAP’s all-inclusive high-speed switches assist businesses in quickly deploying high-speed network infrastructure, accelerating enterprise backbone, smart hotels, retail, and industry 5.0 applications.

  • QSW 2.5GbE Switches

    Upgrade your network environment with affordable QNAP switches.

  • QSW 10GbE Switches

    Satisfy increasing bandwidth demands for fiber uplinks and LAN with Managed, Unmanaged, PoE and industrial-grade 10GbE switches.

  • QSW Managed Switches

    Offering Desktop, Rackmount, PoE, Industrial-grade models with the user-friendly web GUI QSS for non-IT professionals.

  • QGD Smart Edge PoE Switches

    The world’s first smart PoE edge switch series with QTS for versatile networking applications.
