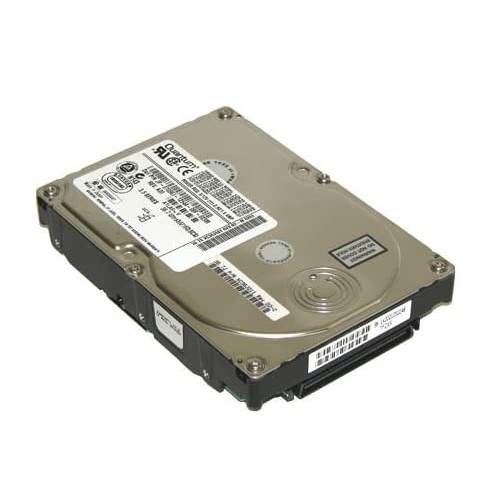

Quantum Atlas V 10K 80pin SCA-2 SCSI Hard Drive XC36J011

Add to Wishlist

199.00 د.إ

Add to Wishlist

Maxtor / Quantum Atlas V 10K 36GB U160 80pin SCA-2 SCSI Hard Drive XC36J011 Refurbished

Maxtor Atlas V disk drives with huge capacities set a new standard of performance for enterprise and workstation drives. The drives provide superior shock durability and reliability with Maxtor’s breakthrough Shock Protection System II (SPS II), which guards against one of the leading causes of hard disk failure – mistreatment during handling and integration. To manage their incredible throughput, Atlas V drives feature today’s most advanced interfaces – the industry’s first backward-compatible Ultra160 SCSI.

SKU: XC36J011 Category: Tags: , ,
Specifications 9.2 18.4 36.7 73.4 9.2/18.4 36.7 73.4
Form Factor 3.5″ 3.5″ 3.5″ 3.5″ Reliability Specifications
Interface Ultra160, Ultra2, Ultra SCSI 68-pin Wide Data Errors (per bits read)
Ultra160, Ultra2, Ultra SCSI 80-pin SCA-2     Recoverable 10 per 10**12
    Nonrecoverable 1 per 10**14
Formatted Capacity (MB)9,200 18,400 36,700 73,400 Error-Correction Method 352-bit Reed Solomon
Disk Drive Configuration
Disks 2 3 5 10
Head/Recording Surfaces 3 6 10 20 Physical Specifications
Bytes per Sector 512 Dimensions—inches/mm
Maximum Areal Density (Gb/sq. in.) 7.7     Width 4.00/101.6 4.00/101.6 4.00/101.6
Encoding/Detection Method 50/52 RLL PRML     Length 5.76/146.5 5.76/146.5 5.76/146.5
    Height 1.00/25.8 1.00/25.8 1.64/41.6
Weight—pounds/kg 1.4/0.64 1.5/0.68 2.4/1.10
Performance Specifications
Typical Seek Times: (ms) Environmental Limits
Average 4.7 4.7 4.7 5.2 Operating
Track-to-Track 0.6 0.6 0.6 0.6     Temperature (ºC) 5 to 50
Full Stroke 12 12 12 13     Non-Condensing Humidity (%) 5 to 85
Average Rotational Latency (ms) 3.0     Vibration (G, 5 to 500 Hz) 0.5
    Sound Power (bels, Idle) 3.7 3.8 4.2
Rotational Speed (RPM) 10,000 Non-Operating
Internal Data Rate (Mb/sec) 280 to 478     Temperature (ºC) -40 to 70
Sustained Throughput (MB/sec) 25 to 41     Non-Condensing Humidity (%) 5 to 95
    Shock (G, 2 ms, 1/2 sine) 230 230 150
Data Transfer Rates (Buffer Host)     Vibration (G, 5 to 500 Hz) 2.0
Ultra160 SCSI (MB/sec) 160
Ultra2 SCSI (MB/sec) 80
Ultra SCSI (MB/sec) 40 Power Specifications
Buffer Size (MB) 8 Voltage Requirements (V) +5V DC±5% +12V DC ±5%
Typical Power Draw (W, Idle)
    SCSI 9.7 10.0 14.3
Peak Current (A on +5V/+12V)
    SCSI 0.80/2.70 0.80/2.80 0.80/3.00
