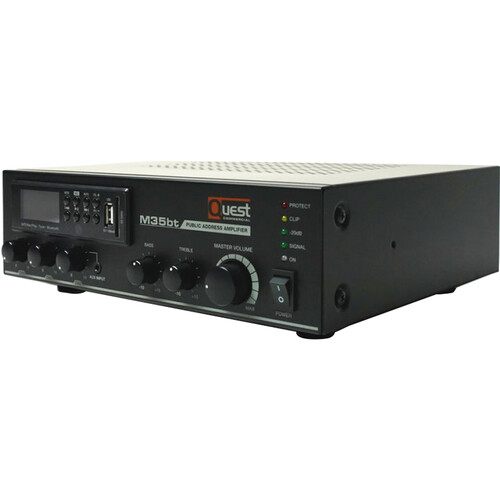

Quest Commercial M35bt Compact 35W Amplifier and Mixer with Bluetooth

Add to Wishlist
Key Features
  • For Numerous Commercial Applications
  • 35W Amplifier, 2-Band Tone Control
  • 25/70V or Direct 4/8-Ohm Operation
  • 3-Channel Mixer with Phantom Power
  • 5-Prong Block Terminal Speaker Output
  • USB, SD, FM & BT Playback, USB/SD Record
  • Extra 3.5mm Aux Input on Front Panel
  • Source, Master Volume, and EQ Control
  • I/O for Numerous Sources and Telecom
  • Overcurrent, DC, and Thermal Protections

د.إ1,399.00

Add to Wishlist

Designed as an ideal selection for a wide range of commercial and retail applications, the M35bt Compact Mixer and Amplifier from Quest Commercial is a straightforward yet versatile amplifier and mixer combo that provides up to 35W of power for passive speakers and sports an internal transformer for 25 and 70V distribution or direct 4- or 8-ohm operation. The M35bt makes it easy to feed virtually any sound source into one of the amps three channels, and dedicated knob controls for source volume, master volume, and 2-band EQ let you quickly make adjustments on the fly.

The M35bt includes a plethora of I/O connections in terminal block, RCA, and front-panel 3.5mm forms for connecting media players, wireless mic systems, phantom-powered microphones, and even paging and telecom systems, making this system great for commercial telephone networks that require background music. The system also supports facilities for receiving wireless audio signals from Bluetooth and FM radio sources, plus the ability to playback and record to and from USB flash drives and SD cards, providing you with a lot of options. With built-in protections like overcurrent, DC offset, and thermal protections, you never have to worry about harming your speakers or amplifier.

Wide Range of Applications
With comprehensive I/O, easy control, wireless Bluetooth and FM radio, and support for paging and telephone systems, this unit can fit a vast range of lightweight audio roles. Some ideal applications include restaurants, retail stores, coffee shops, medical or dental offices, schools, factories, warehouses, and more.
Three Channels of Audio
The three channels on the M35bt allow you to accept and mix signals from a wide range of sources:

  • Channel 1: This mic/line input channel is designed specifically to accept microphone inputs and is the only channel equipped with switchable phantom power
  • Channel 2: This channel features separate block terminal mic and RCA line inputs
  • Channel 3: This channel features separate block terminal mic and RCA line inputs as well as a 3.5mm stereo aux input located on the front panel
SKU: M-35BT Category: Tag:
Key Specs
Number of Channels
3 Input
Amplifier Power Rating
1x 35 W (0.5% THD)
Load Impedance / Voltage
25 / 70 V (17.8 Ohms Nominal)
4 / 8 Ohms
Audio I/O
1x Block 3-Pin Line/MOH Output (Detachable)
1x Block 3-Pin Balanced Mic Input (Detachable)
2x Block 3-Pin Mic Input (Detachable)
1x Block 3-Pin Page/Telephone Input (Detachable)
2x Stereo RCA Coaxial Unbalanced Line Input
1x 1/8″ / 3.5 mm TRS Aux Input (Front Panel)
Digital Audio I/O
No
Network I/O
No
USB I/O
No
Amplifier
Form Factor/Type
Tabletop
Number of Channels
3 Input
Number of Zones
1
Amplifier Power Rating
1x 35 W (0.5% THD)
Load Impedance / Voltage
25 / 70 V (17.8 Ohms Nominal)
4 / 8 Ohms
Performance
Protections
DC Offset, Overcurrent, Thermal
Frequency Response
80 Hz to 18 kHz ±3 dB
Input Sensitivity
Block Mic:
-50 dB (Balanced)
Block / RCA Aux:
-30 dB (Unbalanced)
Block Page/Telephone:
-21 dB (Unbalanced)
SNR
< 90 dB
THD
< 0.5%
Crosstalk
-70 dB
EQ
2-Band Semi-Parametric EQ:
Treble: ±12 dB
Bass: ±12 dB
Ducking/Muting
Yes
Connectivity
Audio I/O
1x Block 3-Pin Line/MOH Output (Detachable)
1x Block 3-Pin Balanced Mic Input (Detachable)
2x Block 3-Pin Mic Input (Detachable)
1x Block 3-Pin Page/Telephone Input (Detachable)
2x Stereo RCA Coaxial Unbalanced Line Input
1x 1/8″ / 3.5 mm TRS Aux Input (Front Panel)
Digital Audio I/O
No
Network I/O
No
Speaker Outputs
1x Block 5-Pin 4-Ohm/8-Ohm/Low-Z/25 V/70 V Main (Detachable)
Number of Module Slots
No
USB I/O
No
Phantom Power
Yes
Mobile App Compatible
No
Wireless
Bluetooth
*Built-In
FM Radio
*Built-In
Media/Memory Card Slot
Single Slot: SD/SDHC
Power
AC Input Power
110 VAC, 50 / 60 Hz
AC Power Connector
1x Hardwired Cord
Power Consumption
18 W
AC Outlet
No
Physical
Display & Indicators
5x LED (Clip/Peak/Power/Protect/Signal)
Cooling
Convection
Dimensions
10.6 x 3.0 x 9.1″ / 26.9 x 7.6 x 23.1 cm
Weight
7.2 lb / 3.3 kg
Packaging Info
Package Weight
8.88 lb
Box Dimensions (LxWxH)
14.3 x 14.1 x 6.5″
