QVS VB-C5 VGA/UXGA over CAT5e/6 Passive Extender Kit


AED599.90

QVS VB-C5Ā Overview

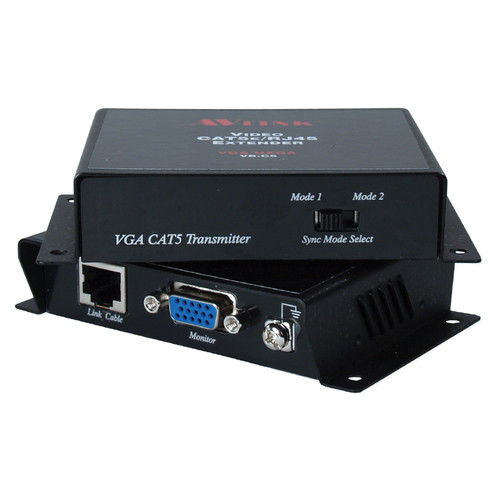

TheĀ VB-C5 VGA/UXGA over CAT5e/6 Passive Extender KitĀ fromĀ QVSĀ includes a non-powered transmitter unit and a receiver unit, and is designed to passively extend video signals up to 330′ away via a CAT5e/6 cable (sold separately). You can connect VGA/UXGA displays to any computer, LCD, switch, or distribution amplifier. This extender kit provides a 5-position DIP switch equalization setting and standard RJ45 port connection. It supports resolutions of 1600 x 1200 60 Hz for up to 164′, and 1024 x 768 60 Hz for up to 330′. It can be mounted on the wall, and it provides cable grounding.

Transmits video via a CAT5e/6 cable
Extends video signals up to 330′ @ 1024 x 768 with virtual DDC
Provides grounding when using CAT5e STP cable
Sync-mode provides support for larger video screens
Sync-filter provides CAT5e/6 signal level adjustment
Supports VGA/UXGA up to 1600 x 1200 @ 60 Hz
RoHS, FCC, and CE compliant

QVS VB-C5Ā Specs

Signal Type VGA/SVGA, XGA/UXGA
Video Bandwidth Up to 100 MHz
Connectors Transmitter:
1 x 15-pin Sub-D, VGA input
1 x RJ45
Receiver:
1 x 15-pin Sub-D, VGA output
1 x RJ45
Compatibility PC & LCD
Insertion Loss < 3 dB
Impedance RGB: 75 ohms, unbalanced
CAT5e: 100 ohms, balanced
Video Signal Return Loss -15 dB max from DC to 60 MHz
Cable Equalization CAT5e: 5-position DIP switch, 32 settings
Operating Temperature 32 to 131°F (0 to 55°C)
Certification and Compliance RoHs, FCC, and CE
Packaging Info
Package Weight 1.05 lb
Box Dimensions (LxWxH) 4.7 x 4.5 x 3.4″
