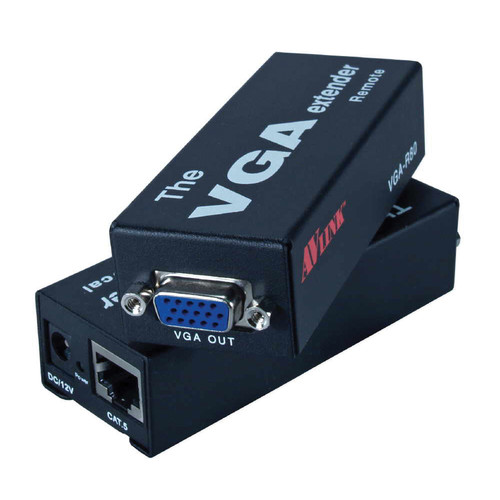

QVS VC5-1P VGA/QXGA Video over CAT5e Single-Power Extender Kit

Add to Wishlist

AED699.90

Add to Wishlist

QVS VC5-1P Overview

The VC5-1P VGA/QXGA Video over CAT5e Single-Power Extender Kit from QVS extends video signals up to 262′ away via a CAT5e cable. It includes a transmitter unit and a receiver unit, a power adaptor, and a 3′ HD15 M/M cable. This extender kit provides equalization and video signal gain adjustment. It supports resolutions of 2048 x 1536/60 Hz for up to 164′ and 1280 x 1024/60 Hz for up to 262′ away. It can be powered from either the transmitter or receiver module. This extender kit connects any VGA/QXGA video display to any computer, projector, LCD, switch, or distribution amplifier.

Transmit video using a CAT5e/6 cable
Powered from either the transmitter or receiver module
Receiver module provides equalization and gain controls
Supports VGA/QXGA up to 2048 x 1536 @ 60 Hz
FCC, CE and RoHS compliant
SKU: VC5-1P Category: Tag:

QVS VC5-1P Specs

Signal Type VGA/SVGA, XGA/UXGA
Distance Up to 262′ (80 m)
Video Bandwidth Up to 150 MHz
Connectors Transmitter:
1 x 15-pin Sub-D, VGA input
1 x RJ45
Receiver:
1 x 15-pin Sub-D, VGA output
1 x RJ45
Compatibility PC & LCD
Insertion Loss < 3 dB
Impedance RGB: 75 ohms, unbalanced
CAT5e: 100 ohms, balanced
Video Signal Return Loss -15 dB max from DC to 60 MHz
Cable Equalization CAT5e: Adjustable EQ controls
Operating Temperature 32 to 131°F (0 to 55°C)
Certification and Compliance RoHs, FCC, and CE
Packaging Info
Package Weight 1.543 lb
Box Dimensions (LxWxH) 9.6 x 6.1 x 2.7″
