R3V36A


TheĀ HPE R3V36AĀ is an HPE Aruba AP-503H (RW) Unified Hospitality radio access point. It can provides a maximum data rate of 5Ghz and 2.4Ghz.

3,599.00 د.إ

R3V36A Overview

The Aruba 500H Series Hospitality Access Points provide high-performance wireless and wired connectivity for hospitality organizations experiencing growing numbers of mobile, IoT, and mobility requirements.

Quick Specs

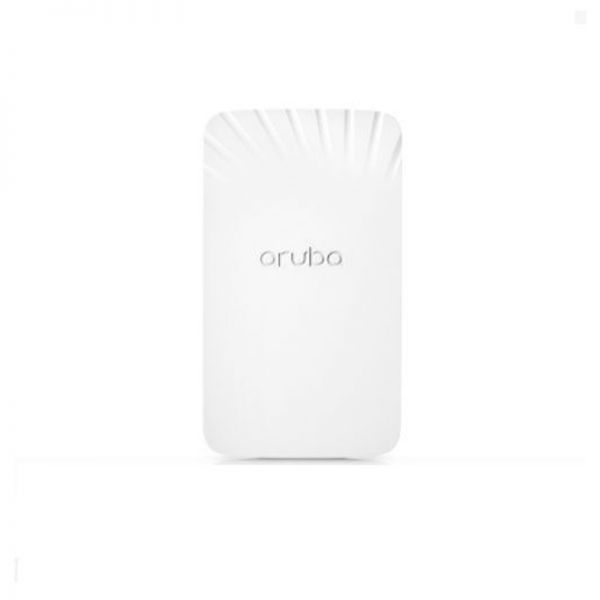

Figure 1 shows the appearance ofĀ R3V36A.
R3V36A

Table 1 shows the Quick Specs.

Product Code R3V36A
PortsĀ  (1) 10/100/1000BASE-T RJ-45 port, auto-sensing link speed and MDI/MDX. (4) 10/100/1000BASE-T (RJ-45) ports, auto-sensing link speed and MDI/MDX
Input voltageĀ  IEEE 802.3af Class 3 PoE, or direct DC power (via optional power supply)
Power ConsumptionĀ  50W max
Radio coverageĀ  5GHz radio: Two spatial stream (SU/MU) MIMO for up to 1.2Gbps wireless data rate (HE80) 2.4GHz radio: Two spatial stream (SU/MU) MIMO for up to 287Mbps wireless data rate (HE20)
Product Dimensions (metric)Ā  150 x 86 x 47 mm

Product Details

Figure 2 shows the front panel of R3V36A.
R3V36A front

Figure 3 shows the back panel of R3V36A.
R3V36A back

R3V36A provides these features:

Incredible Efficiency with Wi-Fi 6

  • The Aruba 500H Series Hospitality Access Points support the Wi-Fi 6 standard, including features such as orthogonal frequency-division multiple access (OFDMA), bi-directional Multi-User MIMO (MU-MIMO), and Target Wait Time (TWT).
  • Patented RF optimization technologies like ClientMatch have also been enhanced with Wi-Fi 6 awareness to group Wi-Fi 6-capable client devices together for optimized network utilization.
  • The Aruba 500H Series also supports Air Slice, a unique capability that enhances OFDMA with SLA-grade application assurance from the access point to the client device.

Infrastructure Designed with Flexibility in Mind

  • The Aruba 500H Series Hospitality Access Points are purpose-built to deliver unified wired and wireless connectivity for the Aruba Edge Services Platform (Aruba ESP) and support flexible deployment options.
  • The 500H Series can be installed on a wall for hotel or residence hall environments, or installed with a desk stand for remote connectivity. Up to 4 Ethernet ports provide local wired access.
  • This product can be managed by Aruba Central, as well as with existing on-premises and local management options.

IoT Platform Capabilities

  • The Aruba 500H Series Hospitality Access Points have the ability to support up to 256 associated clients per Wi-Fi radio – ideal for organizations deploying Wi-Fi connected IoT devices.
  • Supports Bluetooth 5 and ZigbeeĀ® wireless protocols through an integrated IoT radio, and third-party expansion with an integrated USB port.
  • Features improved client visibility with integrated device profiling, and the option for advanced insights when integrated with ClearPass Policy Manager or ClearPass Device Insight.

R3V36A Specification



R3V36A Specification

Ports (1) 10/100/1000BASE-T RJ-45 port, auto-sensing link speed and MDI/MDX. (4) 10/100/1000BASE-T (RJ-45) ports, auto-sensing link speed and MDI/MDX
Mounting Optional mounting kits: Using one of the (separate orderable) mount kits, the AP can be attached to a single or dual gang wall-box, directly to a wall, or desk mounted.
Input voltage IEEE 802.3af Class 3 PoE, or direct DC power (via optional power supply)
Power Consumption 50W max
Certifications Wi-Fi Alliance Wi-Fi CERTIFIED™ a, b, g, n, ac Wi-Fi Alliance Wi-Fi CERTIFIED™ 6 (ax) Wi-Fi Alliance WPA, WPA2 and WPA3 – Enterprise with CNSA option, Personal (SAE), Enhanced Open ( OWE) Wi-Fi Alliance WMM, WMM-PS, Wi-Fi Vantage, Wi-Fi Agile Multiband Wi-Fi Alliance Passpoint (release 2) Ethernet Alliance (POE, PD device, class 6)
Regulatory FCC/ISED CE Marked RED Directive 2014/53/EU EMC Directive 2014/30/EU Low Voltage Directive 2014/35/EU IEC/EN 60950 EN 60601-1-1, EN60601-1-2 IEC/EN 62368-1
Wi-Fi antenna Two integrated semi-directional antennas for 2×2 MIMO with peak single antenna gain of 5.2dBi in 2.4GHz and 5.4dBi in 5GHz. Built-in antennas are optimized for vertical wall or desk mounted orientation of the AP. Combining the patterns of each of the antennas of the MIMO radios, the peak gain of the combined, average pattern is 1.7dBi in 2.4GHz and 5.0dBi in 5GHz.
Radio coverage 5GHz radio: Two spatial stream (SU/MU) MIMO for up to 1.2Gbps wireless data rate (HE80) 2.4GHz radio: Two spatial stream (SU/MU) MIMO for up to 287Mbps wireless data rate (HE20)
Product Dimensions (metric) 150 x 86 x 47 mm
