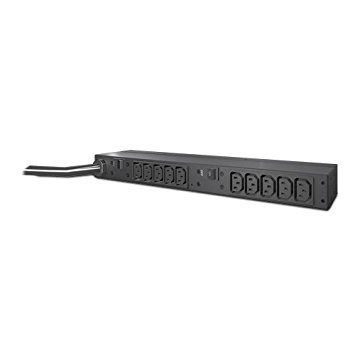

Rack PDU, Basic, 1U, 30A, 208V, (10) C13

Add to Wishlist

AED1,099.00

Add to Wishlist

Rack PDU, Basic, 1U, 30A, 208V, (10) C13 – AP9571A



Overview



AP9571AFeatures

Rack PDU, Basic, 1U, 30A, 208V, (10) C13

  • Resettable circuit breakers
    Enables a quick recovery from overload events.

Basic Rack PDUFeatures & Benefits

Marketing Features
  • Wide range of input and output connections
    Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
  • Single input power source
    Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
  • Low Cost Power Distribution
    Provides a number of outlets to bring power to rack equipment at an affordable price.
  • Rack-Mountable
    Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most – in the racks near the equipment.
Total Cost of Ownership
  • Low Cost Power Distribution
    Provides a number of outlets to bring power to rack equipment at an affordable price.
Agility
  • Single input power source
    Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
  • Rack-Mountable
    Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most – in the racks near the equipment.
  • Wide range of input and output connections
    Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
SKU: AP9571A Category: Tag:
Weight 02.55 kg

Detailed Tech Specification



Output

  • Nominal Output Voltage

    208V

  • Overload Protection

    Yes

  • Maximum Total Current Draw

    24

  • Output Connections
    (10) IEC 320 C13 (Battery Backup)

Input

  • Nominal Input Voltage

    200V , 208V , 230V

  • Input frequency

    50/60 Hz

  • Input Connections

    NEMA L6-30P

  • Cord Length

    3.66meters

  • Acceptable Input Voltage

    200-240VAC

  • Number of Power Cords

    1

  • Load Capacity

    4992VA

  • Maximum Input Current

    30A

  • Maximum Line Current

    30A

  • Regulatory Derated Input Current (North America)

    24A

Physical

  • Maximum Height

    44mm , 4.4CM

  • Maximum Width

    445mm , 44.5CM

  • Maximum Depth

    77mm , 7.7CM

  • Rack Height

    1U

  • Net Weight

    2.55KG

  • Shipping weight

    3.64KG

  • Shipping Height

    171mm , 17.1CM

  • Shipping Width

    483mm , 48.3CM

  • Shipping Depth

    174mm , 17.4CM

  • Color

    Black

  • Units per Pallet

    1.0

Environmental

  • Operating Temperature

    -15 – 45 °C

  • Operating Relative Humidity

    5 – 95 %

  • Operating Elevation

    0-4500meters

  • Storage Temperature

    -25 – 65 °C

  • Storage Relative Humidity

    5 – 95 %

  • Storage Elevation

    0-15000meters

Conformance

  • Approvals

    cUL Listed, PSE, UL 60950, UL Listed

  • Standard warranty

    2 years repair or replace

Sustainable Offer Status

  • PEP

    Available in Documentation tab

  • EOLI

    Available in Documentation tab
