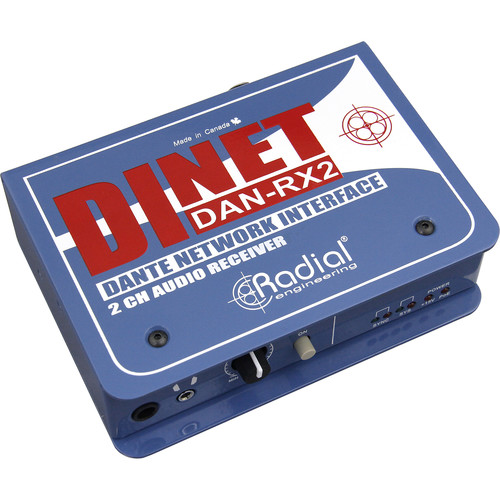

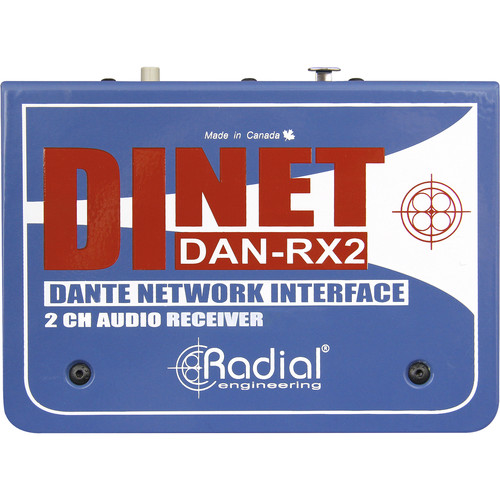

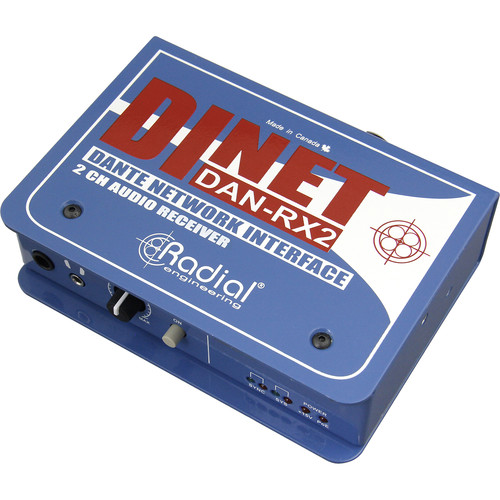

Radial Engineering DiNET DAN-RX2 2-Channel Dante Network Receiver

Add to Wishlist
Key Features
  • Accepts Stereo Dante/AES67 Network Input
  • Outputs Stereo Analog Signal
  • Built-In D/A Converter
  • Up to 24-Bit / 96 kHz Resolution
  • 2 x Balanced XLR Outputs
  • 3.5mm & Dual 1/4″ Headphone Outputs
  • Adjustable Headphone Level
  • Ground-Lift Switch
  • 14-Gauge Steel Enclosure
  • Powered via PoE or External Power Supply

AED2,899.00

Add to Wishlist

Conveniently route a stereo source from your Dante or AES67 audio network to stereo analog outputs with the Radial Engineering DiNET DAN-RX2, a compact two-channel Dante network receiver designed for use in live sound, broadcast, and high-tech studio productions. The DAN-RX2 offers a variety of analog output connections, and a host of LEDs for indication of signal status, power, sync, and more.

The built-in, high-resolution D/A converter accepts Dante-/AES67-compliant digital signal at up to 24-bit / 96 kHz resolution via the locking etherCON jack, allowing easy integration into your audio network. Connect the two balanced XLR outputs to an active PA system or audio recorder, and hook up headphones to the 3.5mm and dual 1/4″ headphone outputs for personal monitoring. The headphone amplifier utilizes a switchable on/off function and adjustable level. A ground-lift switch is provided to eliminate hum and buzz caused by ground loops.

The DiNET DAN-RX2 features a powder-coated, 14-gauge steel enclosure for rugged durability and tour-worthy dependability. Power can be supplied via the included 15 VDC power supply or PoE (Power over Ethernet).

  • Converts a stereo digital Dante/AES67 input to a stereo analog output
  • Dante or AES67 audio network easily connects via a Cat5e or Cat6 Ethernet cable (available separately) to the locking etherCON input
  • Balanced 3-pin XLR male outputs send mic- or line-level signal (based upon the level of the audio playback source)

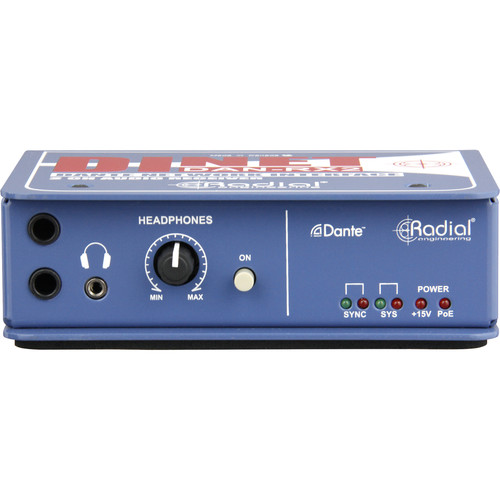

  • Switchable headphone amplifier with adjustable level feeds two 1/4″ TRS jacks and one 3.5mm mini jack
  • Built-in D/A converter supports resolutions up to 24-bit / 96 kHz
  • Ground-lift switch eliminates hum and buzz from ground loops
  • LED indicators for signal presence, clipping, power, sync, and Dante processor status
  • Integrated cable clamp secures power supply cable to prevent accidental disconnection
  • Supports operation via PoE or the included power supply
  • Sturdy 14-gauge steel enclosure finished in a durable powder coat
  • Nonslip pad provides electrical and mechanical isolation, and keeps the unit from sliding around
SKU: R800 1065 00 Category: Tag:
DAC
2-Channel
Sample Rates
Up to 96 kHz
Bit Depth
24-Bit
Digital Inputs
1 x RJ45 etherCON
Analog Outputs
2 x 3-Pin XLR Male (Balanced, Stereo Pair)
2 x 1/4″ TRS Stereo Headphone (Unbalanced)
1 x 1/8″ / 3.5 mm TRS Stereo Mini Jack
Output Impedance
150 Ohms
Frequency Response
20 Hz to 20 kHz
Noise
Idle Channel: -108 dB
Dynamic Range
>100 dB
Channel Separation
>75 dB
Maximum Gain
+18 dBu at 0 dBFS
THD + N
0.007% at -6 dBFS
Controls
Headphone Level Knob
Headphone Amplifier On/Off Switch
Ground-Lift Switch
Power Consumption
1.25 W
Power Requirements
15 VDC, 400 mA Power Adapter or PoE (Class 1 IEEE 802.3af)
Operating Temperature
41 to 104°F / 5 to 40°C
Approvals
FCC Part 15B Class A
Construction Material
Powder-Coated 14-Gauge Steel
Dimensions
4.5 x 2.0 x 6.0″ / 11.4 x 5.1 x 15.2 cm
Weight
Not Specified by Manufacturer
Packaging Info
Package Weight
2.51 lb
Box Dimensions (LxWxH)
11.9 x 4.8 x 2.7″
