Radial Engineering DiNET DAN-TX2 2-Channel Dante Network Transmitter

Add to Wishlist
Key Features
  • Accepts Stereo Analog Line-Level Signal
  • Outputs to Dante or AES67 Network
  • Built-In A/D Converter
  • Up to 24-Bit / 96 kHz Resolution
  • Selectable Pads and Adjustable Gain
  • Dual XLR-1/4″ Combo Jacks & RCA Inputs
  • 3.5mm Stereo Input
  • 14-Gauge Steel Enclosure
  • Powered via PoE or External Power Supply

AED2,899.00

Add to Wishlist

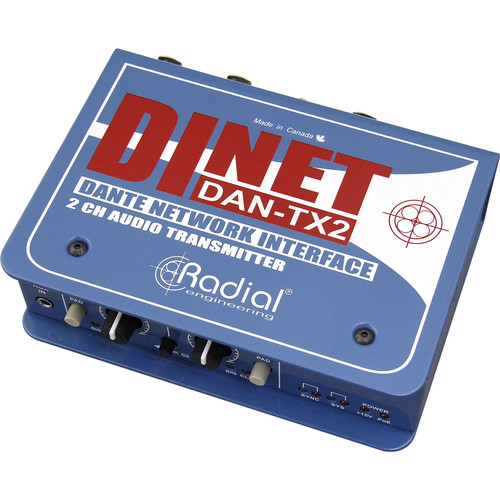

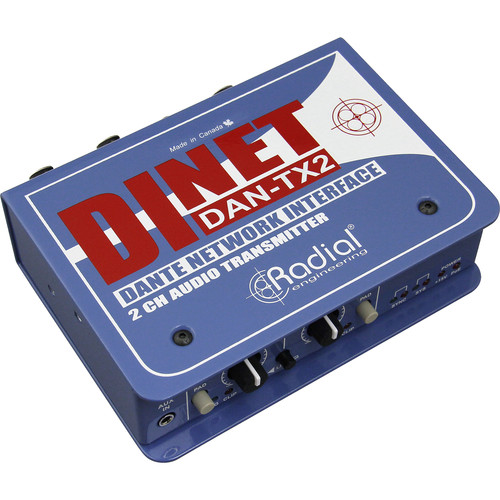

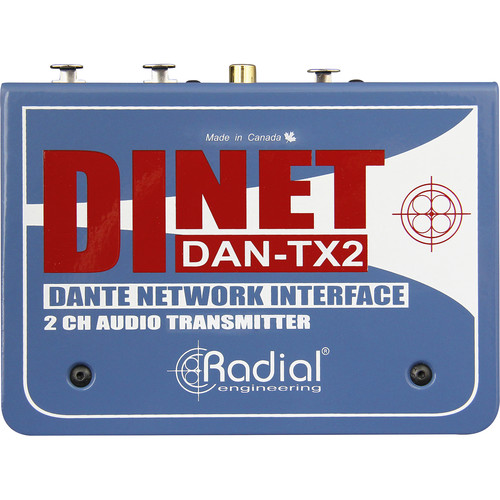

Conveniently route a stereo analog line-level source into your Dante or AES67 audio network with the Radial Engineering DiNET DAN-TX2, a compact two-channel Dante network transmitter designed for use in live sound, broadcast, and high-tech studio productions. The DAN-TX2 offers linkable trim controls and -18 dB pads for simple management of your gain stage, and a host of LEDs for indication of signal status, power, sync, and more.

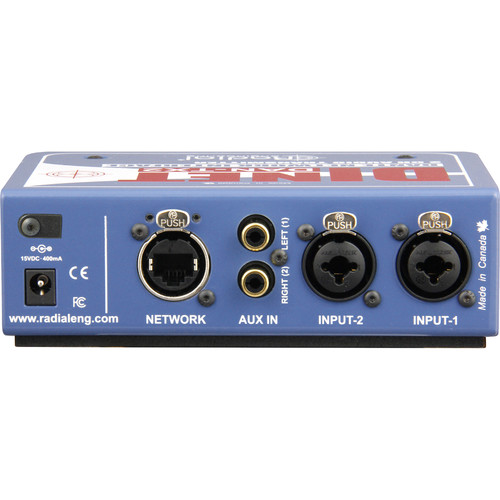

Connect a balanced line-level signal from a mixer or audio interface to the XLR-1/4” combo jacks, or hook up an unbalanced source, such as a CD player or mobile device, to the RCA or 3.5mm inputs. The built-in, high-resolution A/D converter outputs Dante-/AES67-compliant digital signal at up to 24-bit / 96 kHz resolution to the locking etherCON jack, allowing easy integration into your audio network.

The DiNET DAN-TX2 features a powder-coated, 14-gauge steel enclosure for rugged durability and tour-worthy dependability. Power can be supplied via the included 15 VDC power supply or PoE (Power over Ethernet).

  • Converts a stereo analog line-level source to a digital Dante/AES67 output
  • Accepts line-level inputs via XLR-1/4” combo jacks, RCA coaxial inputs, or a 3.5mm mini jack
  • Built-in A/D converter supports resolutions up to 24-bit / 96 kHz
  • Locking etherCON output easily connects to a Dante or AES67 audio network via a Cat5e or Cat6 Ethernet cable (available separately)
  • Linkable trim controls provide adjustable gain (up to 10 dB of boost or cut)
  • Switchable -18 dB pad mitigates distortion when routing high-level sources
  • LED indicators for signal presence, clipping, power, sync, and Dante processor status
  • Integrated cable clamp secures power supply cable to prevent accidental disconnection
  • Supports operation via PoE or the included power supply
  • Sturdy 14-gauge steel enclosure finished in a durable powder coat
  • Nonslip pad provides electrical and mechanical isolation and keeps the unit from sliding around
SKU: R800 1064 00 Category: Tag:
ADC
2-Channel
Sample Rates
Up to 96 kHz
Bit Depth
24-Bit
Analog Inputs
2 x XLR-1/4″ Combo Jacks (Balanced, Stereo Pair)
2 x RCA Coaxial (Unbalanced, Stereo Pair)
1 x 1/8″ / 3.5 mm TRS Stereo Mini Jack
Digital Outputs
1 x RJ45 etherCON
Input Impedance
Balanced: 40 kOhms
Unbalanced: 20 kOhms
Frequency Response
20 Hz to 20 kHz
Noise
Idle Channel: -108 dB
Dynamic Range
>103 dB
Channel Separation
>85 dB
Maximum Input Level
+28 dBu
Equivalent Input Noise
-98 dB
THD + N
0.008% at -6 dBFS
IMD
0.0017% at -10 dBFS
Controls
Trim per Channel
-18 dB Pad per Channel
Link Switch
Power Consumption
1.25 W
Power Requirements
15 VDC, 400 mA Power Adapter or PoE (Class 1 IEEE 802.3af)
Operating Temperature
41 to 104°F / 5 to 40°C
Approvals
FCC Part 15B Class A
Construction Material
Powder-Coated 14-Gauge Steel
Dimensions
4.5 x 2.0 x 6.0″ / 11.4 x 5.1 x 15.2 cm
Weight
Not Specified by Manufacturer
Packaging Info
Package Weight
2.85 lb
Box Dimensions (LxWxH)
11.8 x 4.9 x 2.9″
