Raloy 1U 17″ HD (1080p) LED Monitor & Mac Style Keyboard Drawer
The Raloy RF117HDM Mac style rackmount monitor keyboard drawer features a 17″ Widescreen LCD capable of full HD 1080p video. The keyboard is a 104-key Apple style keyboard including Option, Command and Apple Function keys, full numeric keypad and integrated touchpad or trackball mouse. The unit includes one 6ft DVI-D console cable designed specifically for the Raloy HD rack console series (Product ID: RCX-6). This state-of-the-art modular Mac rack console offers a space saving, streamlined approach to your rack environment by integrating your high-definition LCD monitor, optional integrated KVM switch, Apple keyboard, and mouse in one unit.
Setup is fast and easy. Simply plug in this cutting edge modular rack console with optional integrated KVM and you are ready to go. To use, slide the rack console unit out and open the cover to reveal the HD monitor and built-in keyboard and mouse. To conserve valuable rack space, close the cover and slide the console module back out of the way when finished.

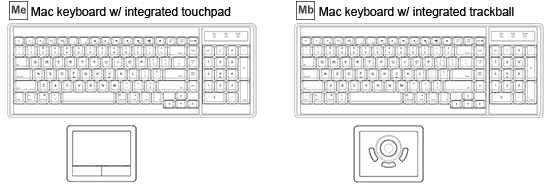

The following Mac keyboard options are available for you to choose from (make sure to select one from the drop down above):

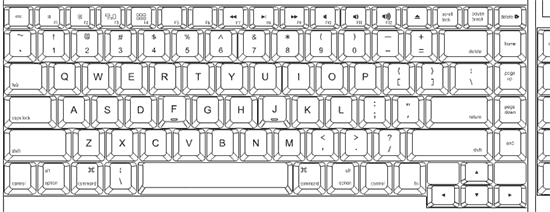

Mac style keyboard detail including Option, Command and Apple Function keys
Raloy RF117HDM Features & Benefits:
- 104-key Mac style keyboard with Option, Command, & Apple function keys, numeric keypad and either an integrated touchpad or trackball
- 1U 17″ widescreen LCD console drawer with VGA and DVI-DĀ
Ā Ā Ā Ā Ā (Optional – HDMI w/speaker, or 3G / HD / SD-SDI) - Supports Full HD with 1080p resolution
- Picture in Picture (PIP) & Picture by Picture (PBP) capability
- New enhanced aesthetics with molded front handle
- Numerous integrated KVM switch options available for highly customized rack management solutions
- Short depth design – only 18.9″ deep (min. mounting depth18.9″ to max. mounting depth 29.5″ – 23.5″ to 34.5″ w/ optional KVM)
Please Note:Ā Additional options/KVM will change depth - 2 post rack mounting available with optional kit
- 24 Month Limited Warranty – Extended Warranties available for purchase

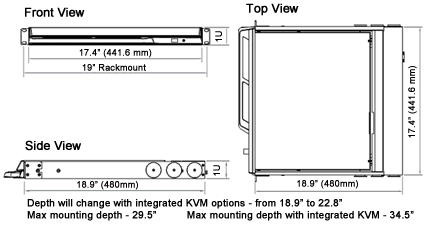

Raloy RF117HDM Dimension Diagram
Mounting depth from 18.9 to 29.35 inches
(23.5 to 34.5 inches with optional KVM)
Ā
Optional Integrated KVM Switches:
Raloy Rackmount Drawer with Integrated 12-port DVI-D KVM Switch w/ Audio Out
Includes 6 DVI KVM cables (RCI-6).
To integrate this style of KVM into your Raloy RF117HDM, select the
w/ 12-Port KVM + AudioĀ from the drop down menuĀ aboveĀ before adding to cart.
Ā
Ā

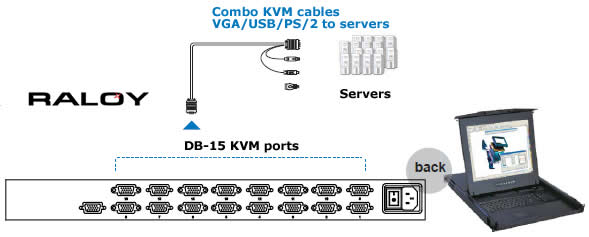

Raloy Rackmount Drawer with Integrated 8 or 16-port DB-15 KVM Switch
Includes 8 combo 4-in-1 KVM cables (RCE-6) for 8-port model and 16 for 16-port model.
To integrate this style of KVM into your Raloy RF117HDM, select eitherĀ
w/ 8-Port KVMĀ orĀ w/ 16-Port KVMĀ from the drop down menuĀ aboveĀ before adding to cart.
Ā
Ā

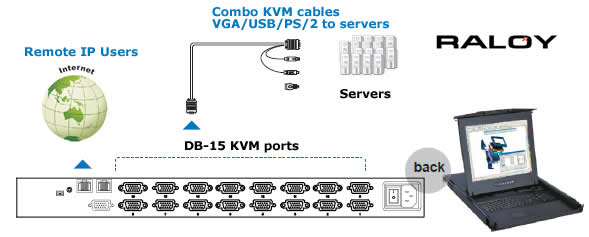

Raloy Rackmount Drawer with Integrated 8 or 16-port KVM over IP Switch
Includes 8 combo 4-in-1 KVM cables (RCE-6) for 8-port model and 16 for 16-port model.
To integrate this style of KVM into your Raloy RF117HDM, select eitherĀ
w/ 8-Port IP KVMĀ or w/Ā 16-Port IP KVMĀ from the drop down menuĀ aboveĀ before adding to cart.
Ā
Ā
The following RF117HDM family of rack consoles are available through this page:
Item No. | Description | Ports |
RF117HDMe /Ā RF117HDMb | 17″Ā Hi-Def LCD rack mount Mac keyboard drawer (e = touchpad / b = trackball) | 1 |
RF117HDM-KVM10008 | w/ integrated basic 8-port KVM Ā Ā Ā Ā Formerly – RF117HDM-S801 |
8 |
RF117HDM-KVM10016 | w/ integrated basic 16-port KVM Ā Ā Ā Ā Formerly – RF117HDM-S1601 |
16 |
RF117HDM-KVM10108 | w/ integrated IP enabled 8-port KVM Ā Ā Ā Ā Formerly – RF117HDM-IP802 |
8 |
RF117HDM-KVM10116 | w/ integrated IP enabled 16-port KVM Ā Ā Ā Ā Formerly – RF117HDM-IP1602 |
16 |
RF117HDM-DVIKVM112 | w/ integrated 12-port DVI-D KVM w/ audio Ā Ā Ā Ā Formerly – RF117HDM-1201D |
12 |
