Raritan 1 User, 8 Port KVM Over IP Switch

The DKX3-108 Dominion KX III is an enterprise-class KVM-over IP switch that provides 1 user with BIOS-level remote management of 8 servers in a single switch. Featuring top quality video performance, solid security, and enhanced reliability, the Dominion KX III offers a powerful solution fit for a variety of configurations. With standard features such as DVI/HDMI/DisplayPort digital video, VGA analog video, audio, virtual media, smart card/CAC, and mobile access, the Dominion KXIII is suitable for both general applications and dynamic broadcast applications.

The Dominion DKX3-108 is ideal for Server Rooms, Test Labs, and the Largest Enterprise Data Centers. The Raritan KX III offers high performance web-based remote management of servers, PCs, laptops and serial devices with virtually any application. Deploy the switch individually, or centralize with Raritan’s CommandCenter Secure Gateway.

Raritan DKX3-108 Features and Benefits:

  • Access devices over a web browser, serial, mobile phone or tablet, or an optional user station.
  • High quality video with low bandwidth utilization – All data encrypted, including video transmissions and virtual media.
  • VGA/DVI/HDMI/DisplayPort Video Compatibility (1920×1080 HD) with dual monitor support.
  • Multiplatform Computer Interface Modules (CIMs) – Connect to PS/2, USB, SUN and other servers from up to 150 feet. Optional audio enabled CIM available.
  • Virtual media support for external devices such as a smart card reader (CAC).
  • Dual-AC power supplies and Dual-NIC Gigabit Ethernet with failover.
  • Local or centralized authentication with LDAP, RADIUS or Active Directory support.
  • Remote Power Reboot – Control power to servers connected to optional Raritan PX PDUs.
  • Tiering Port for Cascading KXIII Switches (up to 1024 servers).
  • Modem Port for Emergency Access.
  • Scales to thousands of servers with centralized network access through the optionalCommandCenter Secure Gateway.

Note: The D2CIM-DVUSB-DVI is required for Virtual Media, absolute mouse synchronization, tiering, audio and Smart Card/CAC use.

Raritan Dominion KX III KVM Over IP Application Diagram
Raritan Dominion KX III KVM Over IP Application Diagram



Security and Reliability

  • Uses FIPS 140-2-certified cryptographic module
  • Smart card / CAC authentication – local and remote
  • 256-bit AES or 128-bit RC4 encryption
  • Dual power supplies and Gigabit Ethernet with failover
  • All data encrypted, including video transmissions and virtual media
  • Secure Linux-based appliance
  • Local or centralized authentication with LDAP, RADIUS or Active Directory support
  • Dual-stack networking: IPv4 and IPv6
  • Configurable user and group permissions
  • User-configurable TCP ports
  • Supports strong password protection
  • Customizable security banner
  • Can upload digital security certificates
  • SNMP v2 and v3 management. Syslog.

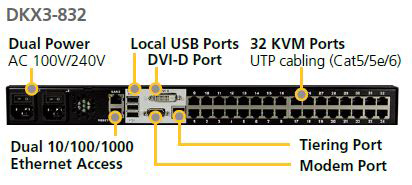

DKX3 rear



Optimized for High Performance Applications

  • Third-Generation Video Processing for Streaming HD Video and Audio
  • 1920×1200 HD Analog & Digital video
  • Up to 30 FPS HD Video with Audio
  • DVI Digital Local Port provides fast GUI performance
  • High quality video with low bandwidth utilization
  • Full-screen video display and flexible video scaling
  • Dual monitor support
  • Dual video cards with extended desktop
  • Supports 1920×1080, 1920×1200 and 1600×1200 remote video resolutions, including widescreen formats
  • High (24-bit) color palette support

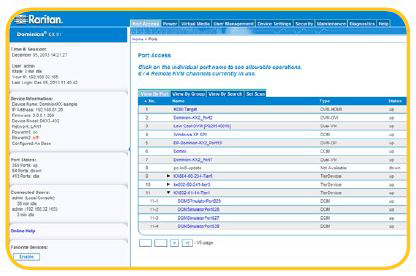

Raritan DKX3-108 Web Management



Optional DKX3-UST – Hassle-Free, High Performance IP User Station

  • Self-contained, hassle-free hardware appliance for environments where a standalone PC is not wanted
  • Two 1080p streaming video sessions at 30 FPS
  • Ultra-fast connections and sub-second switching
  • Eight or more simultaneous IP sessions
  • Powerful user interface with single or dual monitors
  • Perfect for broadcast, labs, studios, and control rooms

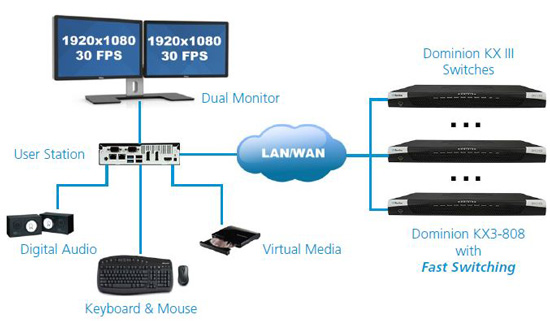

DKX3-UST Application

Raritan DKX3-108 Specifications:

Mechanical
Width 17.3 in. (440 mm.)
Depth 13.15 in. (334 mm.)
Height 1.73 in. (44 mm.)
Weight 8.6 lbs. (3.9 kg.)
Environmental
Operating Temperature 32° (0°C) to 113° (45°C)
Power Dual Power 100V/240V 50/60Hz 1.8A 60W 52 KCAL
Form Factor 1U, full width
rack mountable (brackets included)
Remote Connection
Network Dual 10/100/1000 gigabit Ethernet;
dual-stack; IPv4 and IPv6
Modem Port DB9(F) DTE
Protocols TCP/IP, HTTP, HTTPS, SNMP, UDP, RADIUS, LDAP, SNTP, DHCP, PAP, CHAP, SNMP v2 and v3
Local Access Port
Video DVI-D (F)
Keyboard/Mouse USB(F), 1 USB front, 3 USB rear
Tiering Port RJ45
Sample Video Resolutions
PC text mode 640×350, 640×480, 720×400
PC graphic modes 640×480, 800×600, 1024×768, 1152×864, 1280×1024, 1440×900, 1680×1050, 1600×1200, 1920×1080
Sun video modes 1024×768, 1152×864, 1152×900, 1280×1024

DXK3 Hot Key Sequences

Hot Keys are editable in Options under the General Tab.

Exit Full Screen ex. [Ctrl]+[LeftAlt]+[m]
Exit Single Cursor Mode ex. [Ctrl]+[LeftAlt]+[o]
Disconnect From Target ex. [Ctrl]+[LeftAlt]+[q]
Switch Ports ex. [LeftAlt]+[Port#]
Disconnect From Target, Return to GUI ex. [Scr Lock]+[Scr Lock]



Sun Key Sequences

Again [Ctrl]+[Alt]+[F2]
Props [Ctrl]+[Alt]+[F3]
Undo [Ctrl]+[Alt]+[F4]
Stop A Break a
Front [Ctrl]+[Alt]+[F5]
Copy [Ctrl]+[Alt]+[F6]
Open [Ctrl]+[Alt]+[F7]
Find [Ctrl]+[Alt]+[F9]
Cut [Ctrl]+[Alt]+[F10]
Paste [Ctrl]+[Alt]+[F8]
Mute [Ctrl]+[Alt]+[F12]
Compose [Ctrl]+[Alt]+[KPAD *]
Vol + [Ctrl]+[Alt]+[KPAD +]
Vol – [Ctrl]+[Alt]+[KPAD -]
Stop None
Power None
