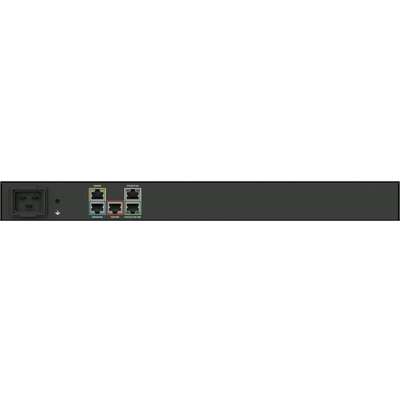

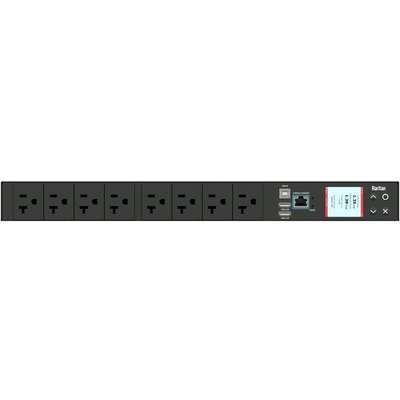

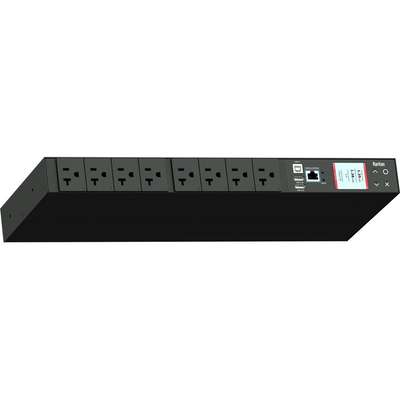

Power distribution unit
Raritan 1PH, 100V AC, 15A (15A Rated) ; 8 Outlets: 8x NEMA 5-20R; Plug: NEMA 5-15P
AED5,499.00
| Category | Specification |
|---|
| General Information |
| Product Name | 1PH, 100V AC, 15A (15A Rated); 8 Outlets: 8x NEMA 5-20R; Plug: NEMA 5-15P |
| Product Series | PX3 |
| Product Model | PX3-5145JR |
| Product Type | PDU |
| Technical Information |
| Phase | Single Phase |
| Plug / Connector Type | NEMA 5-15P (2P3W) |
| Receptacle Detail | 8 x NEMA 5-20R |
| Environmental Sensors | Differential Pressure, Temperature, Water, Air Flow, Humidity, Contact Closure |
| Interfaces / Ports |
| Network (RJ-45) | Yes |
| Management | Remote Outlet Switching |
| Power Description |
| Input Voltage | 100 V |
| Output Voltage | 100 V AC |
| Power Rating (VA) | 1500 VA |
| Input Current | 15 A |
| Physical Characteristics |
| Height | 1.7″ |
| Width | 17.3″ |
| Depth | 7.2″ |
