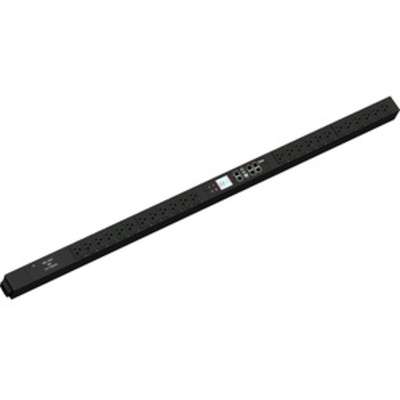

Power distribution unit
Raritan 1PH, 120V AC, 20A (16A Rated) ; 32 Outlets: 32X NEMA 5-20R; Plug:NEMA L5-20P
AED15,499.00
| Category | Specification |
|---|
| General Information |
| Product Name | 1PH, 120V AC, 20A (16A Rated); 32 Outlets: 32 x NEMA 5-20R; Plug: NEMA L5-20P |
| Product Series | PX3 |
| Product Model | PX3-5924V-N1 |
| Product Type | PDU |
| Technical Information |
| Phase | Single Phase |
| Plug / Connector Type | NEMA L5-20P (2P3W) |
| Receptacle Type | NEMA 5-20R |
| Receptacle Detail | 32 x NEMA 5-20R |
| Environmental Sensors | Differential Pressure, Temperature, Water, Air Flow, Humidity, Contact Closure |
| Interfaces / Ports |
| Network (RJ-45) | Yes |
| Management | Remote Outlet Switching |
| Power Description |
| Input Voltage | 120 V |
| Output Voltage | 120 V AC |
| Power Rating (VA) | 1900 VA |
| Input Current | 20 A |
| Physical Characteristics |
| Height | 73.1″ |
| Width | 2.1″ |
| Depth | 2.6″ |
Based on 0 reviews
