Power distribution unit
Raritan 3PH, 208V, 40A, 18XC13,6XC19, Hubbell CS8365C, 14.6KVA, 0U
- High Power Capacity – Supports high-demand equipment with its 40A rating and 14.6 kVA capacity
- Variety of Outlets – Combines C13 and C19 outlets to support a range of devices
- Durable Design – Built with robust components, including a Hubbell input
AED21,299.00

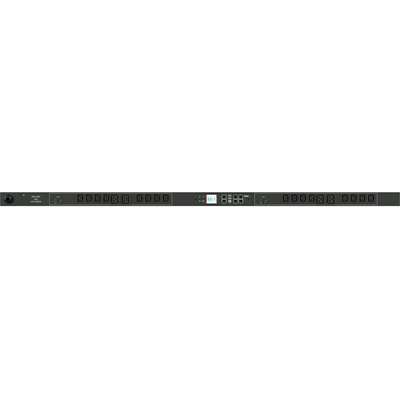

This product is a 3-phase, 208V, 40A power distribution unit with 18 C13 and 6 C19 outlets, offering a total capacity of 14.6 kVA. It features a Hubbell CS8365C input and is designed for high-capacity power distribution.
| Category | Attribute | Details |
|---|
| General Information | Product Name | 3PH, 208V, 40A, 18 x C13, 6 x C19, Hubbell CS8365C, 14.6KVA, 0U |
| Manufacturer Part Number | PX3-5537-E2N3V2 |
| Product Series | PX3 |
| Product Type | PDU |
| Technical Information | PDU Type | Monitored |
| Phase | Three Phase |
| Plug / Connector Type | CS8365C (3P4W) |
| Receptacle Type | IEC 60320 C13, IEC 60320 C19 |
| Receptacle Detail | 18 x IEC 60320 C13, 6 x IEC 60320 C19 |
| Protection Type | Overload Protection, Overcurrent Protection |
| Interfaces/Ports | Network (RJ-45) | Yes |
| Management | Remote Outlet Switching | Yes |
| Power Description | Input Voltage | 208 V AC |
| Output Voltage | 208 V AC |
| Power Rating (VA) | 14.40 kVA |
| Input Current | 50 A |
| Physical Characteristics | Mounting Orientation | Vertical |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Height | 66″ |
| Width | 2.6″ |
| Depth | 2.8″ |
