Power distribution unit
Raritan 3PH, 208V, 60A (Derated to 48A), 36 Outlets: 18 x Locking C13,18 x Locking CX, Input
- High Power Capacity – Offers a capacity of 17.3kVA, making it suitable for demanding data center environments
- Advanced Metering – Features detailed energy monitoring, including voltage, current, and power factor
- Security and Reliability – Provides secure power distribution with locking outlets and remote management capabilities
AED25,599.00

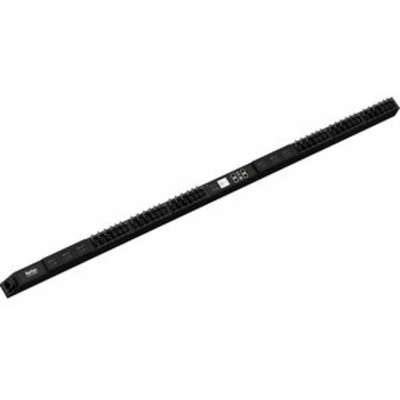

Raritan PX4-532A-E7V2 Power Distribution Unit (PDU) is a rack-mountable device designed to distribute AC power efficiently in data centers and IT environments. It supports a 3-phase, 208V system with a maximum input current of 60A, derated to 48A, and provides energy metering and remote outlet switching.
| Category | Attribute | Details |
|---|
| General Information | Product Name | 3PH, 208V, 60A (Derated to 48A), 36 Outlets: 18 x Locking C13, 18 x Locking CX, Input |
| Product Series | PX4 |
| Product Model | PX4-532A-E7V2 |
| Product Type | PDU |
| Technical Information | PDU Type | Switched with Metered-by-Outlet |
| Phase | Three Phase |
| Plug / Connector Type | IEC 60309 3P+E 9h 60A (3P4W) |
| Receptacle Type | IEC 60320 C13, CX |
| Receptacle Detail | 18 x IEC 60320 C13, 18 x CX |
| Protection Type | Branch Circuit, Circuit Breaker, Overload Protection |
| Locking Receptacles | P-Lock, SecureLock |
| Features | Multi-color LCD |
| Interfaces/Ports | Network (RJ-45) | Yes |
| Environmental Conditions | Maximum Operating Temperature | 140°F (60°C) |
| Minimum Storage Temperature | -22°F (-30°C) |
| Maximum Storage Temperature | 176°F (80°C) |
| Minimum Operating Humidity | 5% |
| Maximum Operating Humidity | 95% |
| Management | Remote Outlet Switching | Yes |
| Power Description | Input Voltage | 230 V AC |
| Input Voltage Range | 208 V AC – 240 V AC |
| Output Voltage | 208 V AC |
| Output Voltage Range | 208 V AC – 240 V AC |
| Power Rating (VA) | 20 kVA |
| Input Current | 60 A |
| Input Frequency | 60 Hz |
| Physical Characteristics | Color Family | Black |
| Product Color | Black Powder Coat |
| Mount Type | Button Mount |
| Cord Length | 9.84 ft |
| Height | 70.1″ |
| Width | 2.2″ |
| Depth | 2.6″ |
