Power distribution unit
Raritan 3PH, 208V AC, 50A (40A/Ph Rated) ; 6 Outlets: 6x NEMA L6-30R; Plug: CS8365C
- Specialized Outlet Configuration – Offers a uniform type of outlets for consistent power delivery to heavy-duty devices
- Compact Design – Requires less space in the rack compared to larger PDUs
- Reliable Power Supply – Provides consistent power for critical equipment
AED12,399.00

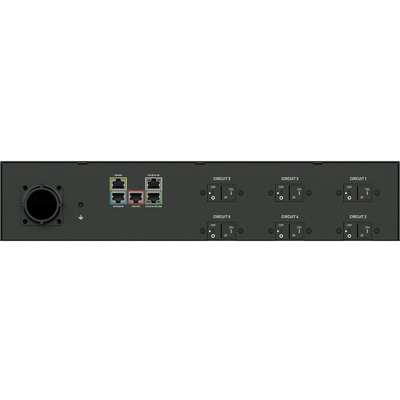

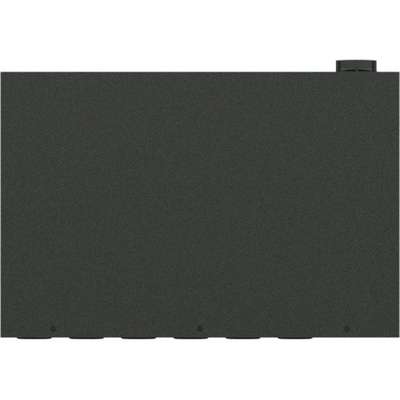

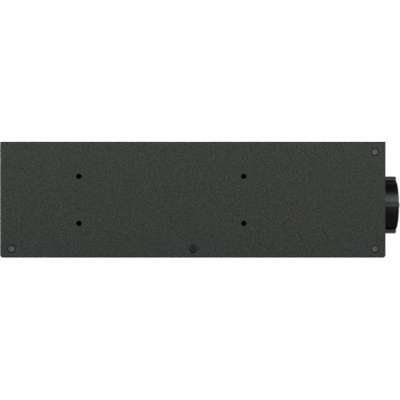

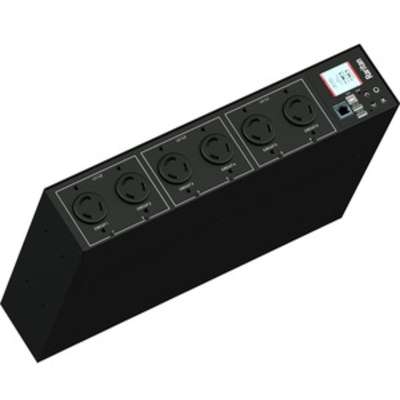

This Raritan PX3-4940R is a specialized power distribution unit with 6 NEMA L6-30R outlets, operating at 3PH, 208V AC, 50A (40A/Ph Rated). It is designed for specific high-power applications that require standardized outlets.
| General Information | |
| Product Name | 3PH, 208V AC, 50A (40A/Ph Rated) ; 6 Outlets: 6x NEMA L6-30R; Plug: CS8365C |
| Product Series | PX3 |
| Product Model | PX3-4940R |
| Product Type | PDU |
| Technical Information | |
| Phase | Three Phase |
| Plug / Connector Type | CS8365C (3P4W) |
| Receptacle Type | NEMA L6-30R |
| Receptacle Detail | 6 x NEMA L6-30R |
| Protection Type | Overload Protection |
| Environmental Sensors | Differential PressureContact Closure
Temperature Water Air Flow Humidity |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Management | |
| Remote Outlet Switching | No |
| Power Description | |
| Input Voltage | 208 V |
| Output Voltage | 208 V AC |
| Power Rating (VA) | 14.40 kVA |
| Input Current | 50 A |
| Physical Characteristics | |
| Height | 3.5″ |
| Width | 17.3″ |
| Depth | 11.5″ |
