Power distribution unit
Raritan 3PH, 415V, 60A, 36XC13,12XC19, IEC60309,34.5KVA
- Extreme load support – 60A capacity handles mission-critical equipment
- Mixed outlet types – Combines C13 and C19 for device compatibility
- IEC60309 input – Standardized connector for international deployments
AED29,499.00

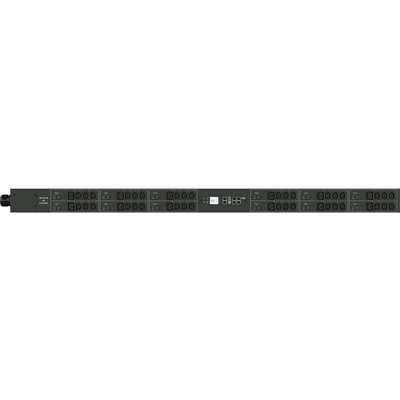

High-density 34.5kVA three-phase PDU with 36 C13 and 12 C19 outlets for data center use.
| Category | Attribute | Details |
|---|---|---|
| General Information | Product Name | 3PH, 415V, 60A, 36XC13, 12XC19, IEC60309, 34.5KVA |
| Product Series | PX3 | |
| Product Model | PX3-5747I2U-V2 | |
| Product Type | PDU | |
| Technical Information | Phase | Three Phase |
| Plug / Connector Type | IEC 60309 3P+N+E 6h 60A (4P5W) | |
| Receptacle Type | IEC 60320 C13, IEC 60320 C19 | |
| Receptacle Detail | 36 x IEC 60320 C13, 12 x IEC 60320 C19 | |
| Protection Type | Overload Protection | |
| Environmental Sensors | Differential Pressure, Temperature, Water, Air Flow, Humidity, Contact Closure | |
| Interfaces/Ports | Network (RJ-45) | Yes |
| Management | Remote Outlet Switching | Yes |
| Power Description | Input Voltage | 415 V |
| Output Voltage | 415 V AC | |
| Power Rating (VA) | 34.50 kVA | |
| Input Current | 60 A | |
| Physical Characteristics | Height | 70.1″ |
| Width | 4.3″ | |
| Depth | 3.1″ |
