04 3550600 052 7036860

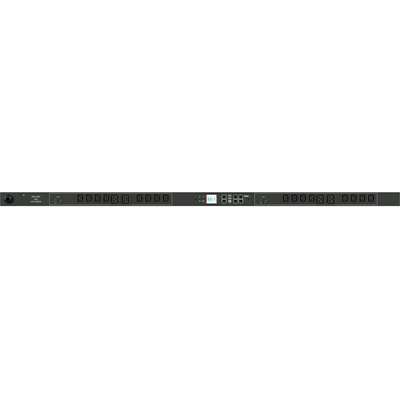

Raritan 3PH, 415V AC, 32A (24A/Ph Rated) ; 24 Outlets: 12X C13 Locking,

Add to Wishlist
  • Per-outlet monitoring – identifies individual device consumption
  • Latching handles – prevents unauthorized removal
  • DIN rail compatibility – fits industrial/telecom enclosures

AED17,899.00

Add to Wishlist

24-outlet 415V PDU (12x locking C13) with precision metering.

SKU: PX3-5550IU-E2V2 Category: Tag:
General Information
Product Name 3PH, 415V AC, 32A (24A/Ph Rated) ; 24 Outlets: 12X C13 Locking,
Product Series PX3
Product Model PX3-5550IU-E2V2
Product Type PDU
Technical Information
PDU Type Switched with Metered-by-Outlet
Phase Three Phase
Plug / Connector Type IEC 60309 3P+N+E 7h 30A (4P5W)
Receptacle Type IEC 60320 C19IEC 60320 C13
Receptacle Detail 12 x IEC 60320 C1312 x IEC 60320 C19
Protection Type Branch CircuitOverload Protection
Locking Receptacles SecureLock
Load Capacity (VA) 17.30 W
Interfaces/Ports
Network (RJ-45) Yes
Environmental Conditions
Maximum Operating Temperature 140°F (60°C)
Maximum Operating Humidity 85%
Management
Remote Outlet Switching Yes
Power Description
Input Voltage 415 V AC
Input Voltage Range 360 V AC – 415 V AC
Output Voltage 208 V AC
Output Voltage Range 208 V AC – 240 V AC
Power Rating (VA) 17.30 kVA
Input Current 30 A
Input Frequency 60 Hz
Physical Characteristics
Color Family Black
Product Color Black Powder Coat
Mount Type Rack-mountable
Cord Length 9.84 ft
Height 70.1″
Width 2.1″
Depth 2.8″
