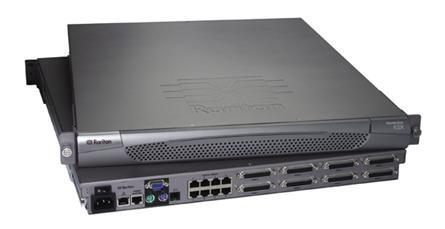

Raritan DKSX440 Dominion KSX 440 4 serial port 4 KVM port KVM switch. With Local & Digital IP User Ports

With the Raritan Dominion DKSX440, you can easily administer remote and branch offices with the only integrated hardware solution that provides remote KVM access, serial device management and power control in a single device.

Unlike remote control software solutions, Dominion DKSX440provides one consolidated view of all IT equipment deployed at branch office locations, a single platform-independent solution with centralized control, network-independent access for emergency access even when the network is down, and BIOS-level control of KVM equipment and console-level control of serial devices.

The Raritan Dominion DKSX440offers you direct access to trouble shoot and reboot all of your remote equipment including domain servers, file/print servers, headless servers, network appliances, serial IT equipment, switches, routers, firewalls, security interfaces, application servers, load balancers environmental control and more.

Features and innovations that deliver what you demand.

• Built-in modem
• Dedicated power control port
• “Plug and Play”?no software required
• Local port for rack access
• 1U Rack mountable
• Multi-platform PS/2, Sun and USB servers
• 64k buffering per port
• SSL 128-bit encryption
• 4 KVM console ports
• 4 Serial Ports

Dominion KSX Series An unprecedented combination of remote KVM and Serial access in one box. SPECIAL OFFER WHILE STOCK LASTS ONLY – THIS IS THE ORIGINAL COAX KVM CABLE VERSION New Full UTP Version is available now- See DKSX2 models. Dominion KSX 4404 Serial Ports and 4 KVM Ports The Dominion KSX difference Dominion KSX is the first hardware-based, integrated solution to provide remote KVM access, serial device management and power control in a single unit. With Dominion KSX, it’s as if you are physically present at the branch office. Unlike remote control software solutions, Dominion KSX provides:

• One consolidated view of all IT equipment deployed at branch office locations
• A single, platform-independent solution offering centralized, integrated and secure control
• Network-independent access via a built-in modem for emergency access even when the network is down
• BIOS-level control of KVM equipment and console-level control of serial devices

Secure, remote, out-of-band access and power control of up to 16 servers and other network devices over IP Raritan’s Dominion KSX is designed specifically to make the management of your IT infrastructure at branch locations easier, faster, safer and more cost-effective. This innovative device combines secure console-level access and cold-start power control of everything in your server closets. This means from anywhere you access the Web, you can directly access, troubleshoot and even reboot all of your remote equipment including:

• Domain Servers
• Serial IT Equipment
• Security Interfaces
• File/Print Servers
• Switches
• Application Servers
• Headless Servers
• Routers
• Load Balancers
• Network Appliances
• Firewalls
• Environmental Control

Simplicity Smart engineering translates into ease of use with:

• A single consolidated view of all servers and other IT devices from one screen — via a web browser; no additional software is required
• A single sign-on and single interface providing easy access to servers and other network devices
• A built-in modem for essential emergency access in the event of a network outage
• Point and click or command-line control of devices
• Secure, centralized monitoring and notification
• Easy ‘Plug and Play’ installation and operation
• Convenient flash upgrades

Performance Dominion KSX includes the features you need for superior performance:

• High performance over low bandwidth connections including modem, wireless, cable, DSL and fractional T/1
• A video compression algorithm and powerful frame-grabber technology to ensure the fastest possible transmission of high quality video
• Tight mouse synchronization that reduces latency, the tedious wait for key strokes and mouse movements to catch up with your commands
• Built-in serial port buffering to provide views of recent console history, assisting in debugging and, ultimately, reducing downtime

Security Dominion KSX provides bulletproof security via:

• SSL 128-bit RSA public key, 128-bit private key encryption
• User authentication with RADIUS support
• Use of only one additional network port to preserve strict firewall settings
• Customisable user profiles
• User event logging
• Ability to deactivate modem and/or browser access

ROI Dominion KSX pays for itself quickly by:

• Reducing costly administration of on-call labour and outsourced service providers
• Slashing expensive down time by providing network-independent access in emergencies
• Eliminating expensive and inconvenient travel to remote locations
• Leveraging the centralised expertise of IT managers, regardless of their locations
• Replacing multiple software solutions with one single hardware solution — increasing efficiency and saving valuable IT staff time

Features:

• Built-in modem



• Dedicated power control port



• ‘Plug and Play’ — no software required



• Local port for rack access



• 1U Rack mountable



• Multi-platform PS/2, Sun and USB servers



• 64k buffering per serial port



• SSL 128-bit encryption



• 4 KVM console ports



• 4 Serial Ports

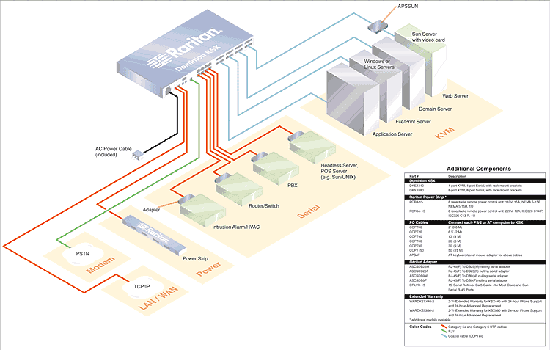

Typical installation of Dominion KSX

Specification:

• Form Factor 1U, full width, rack mountable



• Dimensions 44mm (H) x 440mm (W) x 540mm (D)



• Weight 11kg



• Power 110/240V auto-switching; 50-60 Hz



• KVM Ports 4



• Serial Ports 4



• Admin Port PS/2 Keyboard; VGA Video



• Environmental Requirements
  Operating Temperature 0°C to 40°C



• Remote Connection
  Network 10/100 Ethernet (RJ45)
  Modem Integrated 56K V.90 (RJ11 port)
  Protocols TCP/IP, UDP, RADIUS, SNMP, SNTP
  DHCP, PAP, CHAP, HTTP, HTTPS



• Screen Resolutions
  PC text mode 720×400
  PC graphic modes 640×480, 800×600, 1024×768,
  1152×864, 1280×1024
  Sun® video modes 1024×768, 1152×900, 1280×1024



KVM Switch Buy Backs & Upgrades >> Raritan Dominion DKSX440 DKSX440 Part # DKSX440 Price: $3,395.00 (Write a Review) Dominion KSX   Please note, the Raritan Dominion DKSX440 is discontinued. For replacement or upgrade options, please contact your KVM Switches Online sales representative at 1-877-586-6654. With the Raritan Dominion DKSX440, you can easily administer remote and branch offices with the only integrated hardware solution that provides remote KVM access, serial device management and power control in a single device. Unlike remote control software solutions, Dominion DKSX440provides one consolidated view of all IT equipment deployed at branch office locations, a single platform-independent solution with centralized control, network-independent access for emergency access even when the network is down, and BIOS-level control of KVM equipment and console-level control of serial devices. The Raritan Dominion DKSX440offers you direct access to trouble shoot and reboot all of your remote equipment including domain servers, file/print servers, headless servers, network appliances, serial IT equipment, switches, routers, firewalls, security interfaces, application servers, load balancers environmental control and more. Features and innovations that deliver what you demand. Built-in modem Dedicated power control port “Plug and Play”?no software required Local port for rack access 1U Rack mountable Multi-platform PS/2, Sun and USB servers 64k buffering per port SSL 128-bit encryption 4 KVM console ports 4 Serial Ports
