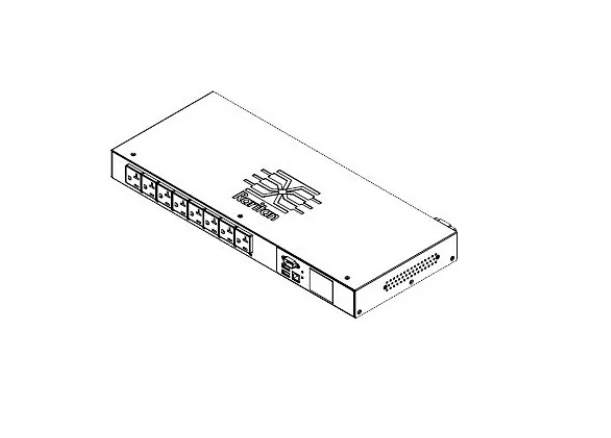

Raritan Dominion PX PX3-5145R – power distribution unit – 1400 VA


Quick tech specs

  • 5145R
  • AC 120 V
  • 1-phase
  • input: NEMA 5-15P
  • 1U
  • Power distribution unit (rack-mountable)
  • 1400 VA
  • Ethernet 10/100, RS-232
  • output connectors: 8 (NEMA 5-20R)
  • black powder coat

AED4,599.00

Know your gear

The Raritan PX family of high-quality rack power distribution units (PDUs) offers real-time remote power monitoring of current (amps), voltage, power (kVA, kW) and energy consumption (kWh) with +/– 1% billing-grade accuracy. The Dominion PX series offers hundreds of models to meet all your data center applications, including models with outlet switching, individual outlet metering, high power for blade servers and high density applications and 400V power distribution.
SKU: PX3-5145R Category: Tag:
Overview
Specification Details
Brand Raritan
Product Line Raritan Dominion PX
Model PX3-5145R
Manufacturer Raritan
Network & Communication
Specification Details
Remote Management HTTP, HTTPS, SNMP 2, SNMP 3, SSH, Telnet
Remote Management Interface Ethernet 10/100, RS-232
Connectivity
Specification Details
Input Connectors 1
Interface Provided 1 x LAN – RJ-451 x monitoring – RJ-121 x monitoring – RJ-451 x RS-232 – 9 pin D-Sub (DB-9)1 x USB – 4 pin USB Type B2 x USB – 4 pin USB Type A
Power
Specification Details
Emergency Power Off Active power meter, Cascadable, Current meter, Energy meter, LED display, Power factor meter, Real power meter, Splash-proof plug, Voltage monitoring
Frequency 50/60 hertz
Input Connector Type Power NEMA 5-15P
Input Voltage Range AC 100 – 120 V
Input Wiring 1-phase
Max Input Current 12 ampere
Output Connector Quantity 8
Output Connector Type Power NEMA 5-20R
Power Capacity 1400 volt ampere per kilogram
Power Output Connectors Details 8 x power NEMA 5-20R – 120 V 12 A
Provided Voltage AC 120 volt
Required Voltage AC 120 volt
Technical Information
Specification Details
Form Factor (Power Device) Rack-mountable
Max Operating Temperature 140°F
Min Operating Temperature 41°F
Operating Humidity 5 – 85%
Product Information
Specification Details
Packaged Quantity 1
Product Type Power distribution unit
Rack Mounting Kit Included
Subcategory Power distribution devices
Included Items
Specification Details
Cables Power cable – external – 10 ft
Dimensions & Weight
Specification Details
Height 1.7 inch
Height (Rack Units) 1
Width 17.3 inch
Depth 7.2 inch
Physical Characteristics
Specification Details
Color Black powder coat
Color Category Black
