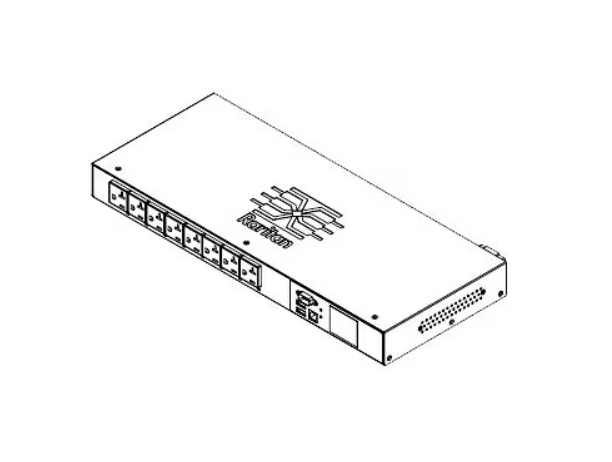

Raritan Dominion PX PX3-5147R – power distribution unit – 1900 VA

Add to Wishlist

Quick tech specs

  • 5147R
  • AC 120 V
  • Ethernet 10/100, RS-232
  • output connectors: 8 (NEMA 5-20R)
  • black powder coat
  • Power distribution unit (rack-mountable)
  • 1900 VA
  • input: NEMA L5-20
  • 1U

AED4,599.00

Add to Wishlist

Know your gear

The Raritan PX family of high-quality rack power distribution units (PDUs) offers real-time remote power monitoring of current (amps), voltage, power (kVA, kW) and energy consumption (kWh) with +/ā€“ 1% billing-grade accuracy. The Dominion PX series offers hundreds of models to meet all your data center applications, including models with outlet switching, individual outlet metering, high power for blade servers and high density applications and 400V power distribution.
SKU: PX3-5147R Category: Tag:
Overview šŸ”½
Attribute Details
Brand Raritan
Product Line Raritan Dominion PX
Model PX3-5147R
Manufacturer Raritan
Network & Communication šŸ”½
Attribute Details
Remote Management HTTP, HTTPS, SNMP 2, SNMP 3, SSH, Telnet
Remote Management Interface Ethernet 10/100, RS-232
Connectivity šŸ”½
Attribute Details
Input Connectors 1
Interface Provided 1 x management (Fast Ethernet) – RJ-45
1 x monitoring – RJ-11
1 x monitoring – RJ-45
1 x RS-232 – 9 pin D-Sub (DB-9)
1 x USB – 4 pin USB Type B
2 x USB – 4 pin USB Type A
Power šŸ”½
Attribute Details
Emergency Power Off Active power meter, Cascadable, Current meter, Energy meter, LED display, Power factor meter,
Real power meter, Splash-proof plug, Voltage monitoring
Frequency 50/60 hertz
Input Connector Type Power NEMA L5-20
Input Voltage Range AC 100 – 120 V
Max Input Current 16 ampere
Output Connector Quantity 8
Output Connector Type Power NEMA 5-20R
Power Capacity 1900 volt ampere per kilogram
Power Output Connectors 8 x power NEMA 5-20R 16 A
Provided Voltage AC 120 volt
Required Voltage AC 120 volt
Technical Information šŸ”½
Attribute Details
Form Factor (Power Device) Rack-mountable
Max Operating Temperature 140 Ā°F
Min Operating Temperature 41 Ā°F
Operating Humidity 5 – 85% (non-condensing)
Product Information šŸ”½
Attribute Details
Packaged Quantity 1
Product Type Power distribution unit
Rack Mounting Kit Included
Subcategory Power distribution devices
Included Items šŸ”½
Attribute Details
Cables Power cable – external – 10 ft
Dimensions & Weight šŸ”½
Attribute Details
Height 1.7 inch
Height (Rack Units) 1
Width 17.3 inch
Depth 7.2 inch
Physical Characteristics šŸ”½
Attribute Details
Color Black powder coat
Color Category Black
