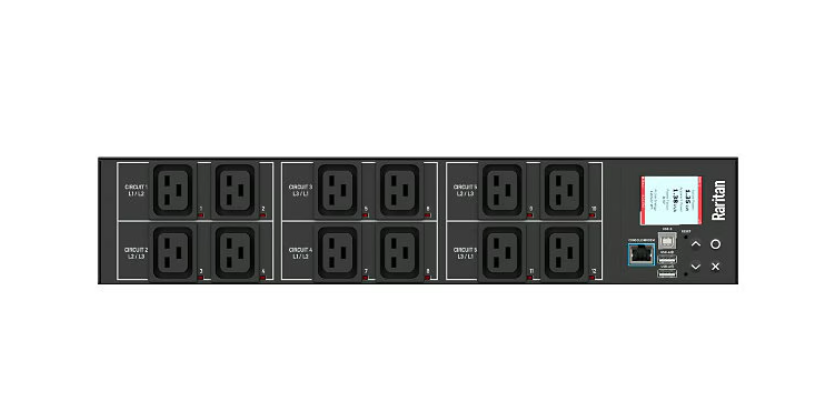

Raritan Dominion PX PX3-5325R-V2 – power distribution unit – 17300 VA

Add to Wishlist

Quick tech specs

  • 5325R-V2
  • AC 208 V
  • 3-phase delta
  • input: IEC 60309 3P+E
  • 2U
  • black powder coat
  • Power distribution unit (rack-mountable)
  • 17300 VA
  • RS-232, Ethernet 10/100/1000
  • output connectors: 12 (12 x IEC 60320 C19)
  • 10 ft cord

AED12,199.00

Add to Wishlist

Know your gear

The Raritan PX family of high-quality rack power distribution units (PDUs) offers real-time remote power monitoring of current (amps), voltage, power (kVA, kW) and energy consumption (kWh) with +/– 1% billing-grade accuracy. The Dominion PX series offers hundreds of models to meet all your data center applications, including models with outlet switching, individual outlet metering, high power for blade servers and high density
SKU: PX3-5325R-V2 Category: Tag:
Category Attribute Value
Overview Brand Raritan
Product Line Raritan Dominion PX
Model PX3-5325R-V2
Manufacturer Raritan
Network & Communication Remote Management HTTP, HTTPS, JSON-RPC, SMTP, SNMP 2, SNMP 3, SSH, Telnet
Remote Management Interface Ethernet 10/100/1000, RS-232
Connectivity Input Connectors 1
Interface Provided 1 x Gigabit LAN – RJ-45
1 x management (Fast Ethernet) – RJ-45
1 x management (RS-232) – RJ-45
1 x monitoring – RJ-12
1 x monitoring – RJ-45
1 x USB – 4 pin USB Type B
2 x USB – 4 pin USB Type A
Power Emergency Power Off Active power meter, Cascadable, Current meter, Energy meter, LCD display, Metering per branch circuit breaker, Metering per input line, Metering per output receptacle, Overload protection, Power factor meter, Raritan SecureLock Ready, Real power meter, Remote outlet switching, Voltage monitoring, Watertight plug
Frequency 50/60 hertz
Input Connector Type Power IEC 60309 3P+E
Input Voltage Range AC 208 – 240 V
Input Wiring 3-phase delta
Max Input Current 48 ampere
Output Connector Quantity 12
Output Connector Type 12 x power IEC 60320 C19
Power Capacity 17300 volt ampere per kilogram
Power Capacity Details 17.3 kVA at 208 V, 20 kVA at 240 V
Power Output Connectors Details 12 x power IEC 60320 C19 16 A
Provided Voltage AC 208 volt
Required Voltage AC 208 volt
Technical Information Form Factor (Power Device) Rack-mountable
Max Operating Temperature 140 degree Fahrenheit
Operating Humidity 85%
Protection Type Circuit breaker
Product Information Cord Length 10 ft
Packaged Quantity 1
Product Type Power distribution unit
Subcategory Power distribution devices
Included Items Cables Power cable – integrated – 10 ft
Dimensions & Weight Height 3.5 inch
Height (Rack Units) 2
Weight 29.76 lbs
Width 17.3 inch
Depth 11.5 inch
Physical Characteristics Color Black powder coat
Color Category Black
