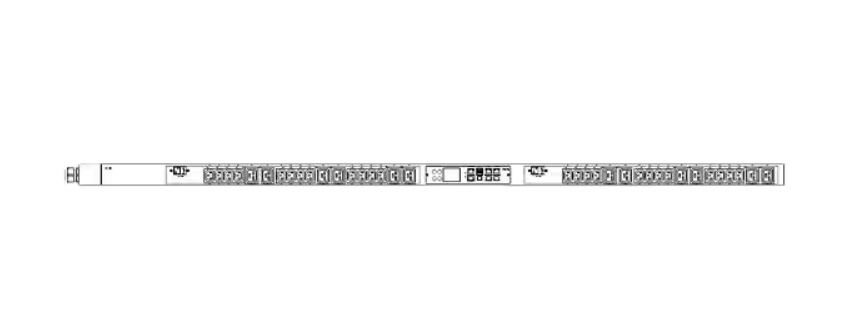

Raritan Dominion PX PX3-5903V – power distribution unit – 5000 VA

Add to Wishlist

Quick tech specs

  • 5903V
  • AC 208 V
  • 1-phase
  • input: NEMA L6-30
  • 0U
  • Power distribution unit (rack-mountable)
  • 5000 VA
  • RS-232, Ethernet 10/100/1000
  • output connectors: 36 (24 x IEC 60320 C13, 12 x IEC 60320 C19)
  • 10 ft cord

AED12,199.00

Add to Wishlist

Know your gear

The Raritan PX family of high-quality rack power distribution units (PDUs) offers real-time remote power monitoring of current (amps), voltage, power (kVA, kW) and energy consumption (kWh) with +/ā€“ 1% billing-grade accuracy. The Dominion PX series offers hundreds of models to meet all your data center applications, including models with outlet switching, individual outlet metering, high power for blade servers and high density applications and 400V power distribution.
SKU: PX3-5903V Category: Tag:
ategory Attribute Value
Overview Brand Raritan
Product Line Raritan Dominion PX
Model PX3-5903V
Manufacturer Raritan
Network & Communication Remote Management HTTP, HTTPS, JSON-RPC, SMTP, SNMP 2, SNMP 3, SSH, Telnet
Remote Management Interface Ethernet 10/100/1000, RS-232
Connectivity Input Connectors 1
Interface Provided 1 x management (Gigabit Ethernet) – RJ-45, 1 x management (modem) – RJ-45, 1 x management (RS-232) – RJ-45, 1 x monitoring – RJ-45, 1 x sensor – RJ-45, 1 x USB – 4 pin USB Type B, 2 x USB – 4 pin USB Type A
Power Emergency Power Off Active power meter, Cascadable, Cord retention outlet, Current meter, Energy meter, Metering per branch circuit breaker, Metering per input line, Power factor meter, Raritan SecureLock Ready, Real power meter, Remote outlet switching, Replaceable controller, Voltage monitoring
Frequency 50/60 hertz
Input Connector Type Power NEMA L6-30
Input Voltage Range AC 200 – 240 V
Input Wiring 1-phase
Max Input Current 30 ampere
Output Connector Quantity 36
Output Connector Type 12 x power IEC 60320 C19, 24 x power IEC 60320 C13
Power Capacity 5000 volt ampere per kilogram (āš  Unit may be incorrect)
Power Output Connectors Details 12 x power IEC 60320 C19 – 208 V 16 A, 24 x power IEC 60320 C13 – 208 V 12 A
Provided Voltage AC 208 volt
Required Voltage AC 208 volt
Technical Information Form Factor (Power Device) Rack-mountable
Max Operating Temperature 140Ā°F
Operating Humidity 85%
Protection Type Circuit breaker
Product Information Cord Length 10 ft
Features Vertical orientation
Image Color Disclaimer The displayed product image may be a different color
Packaged Quantity 1
Product Type Power distribution unit
Rack Mounting Kit Included
Subcategory Power distribution devices
Included Items Cables Power cable 10 ft
Dimensions & Weight Height 70.1 inch
Height (Rack Units) 0
Weight 14.11 lbs
Width 2 inch
Depth 2.6 inch
