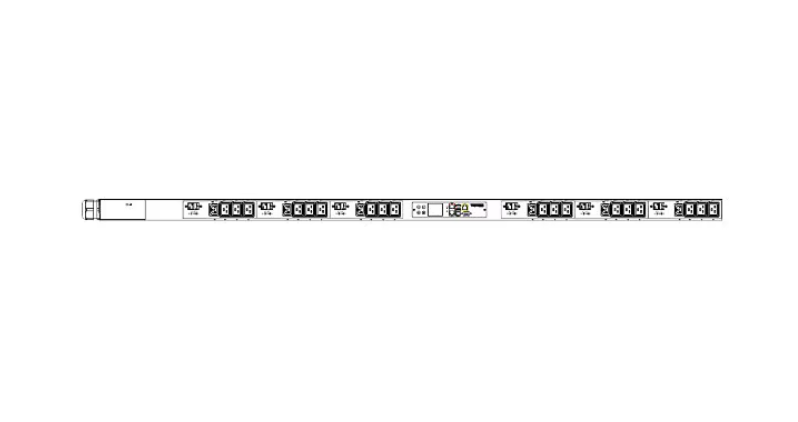

Raritan Dominion PX PX3-5934V-V2 – power distribution unit – 20000 VA

Add to Wishlist

Quick tech specs

  • 5934V-V2
  • AC 208 V
  • 3-phase 4 Wire delta
  • input: IEC 60309 60A
  • 0U
  • Power distribution unit (rack-mountable)
  • 20000 VA
  • Ethernet 10/100, RS-232
  • output connectors: 24 (power IEC 60320 C13, IEC 60320 C19)
  • black powder coat

AED16,699.00

Add to Wishlist

Know your gear

The Raritan PX family of high-quality rack power distribution units (PDUs) offers real-time remote power monitoring of current (amps), voltage, power (kVA, kW) and energy consumption (kWh) with +/– 1% billing-grade accuracy. The Dominion PX series offers hundreds of models to meet all your data center applications, including models with outlet switching, individual outlet metering, high power for blade servers and high density applications and 400V power distribution.
SKU: PX3-5934V-V2 Category: Tag:
ategory Attribute Value
Overview Brand Raritan
Product Line Raritan Dominion PX
Model PX3-5934V-V2
Manufacturer Raritan
Network & Communication Remote Management HTTP, HTTPS, SNMP 2, SNMP 3, SSH, Telnet
Remote Management Interface Ethernet 10/100, RS-232
Connectivity Input Connectors 1
Interface Provided 1 x LAN – RJ-45, 1 x monitoring – RJ-12, 1 x monitoring – RJ-45, 1 x RS-232 – DB-9, 1 x USB Type B, 2 x USB Type A
Power Emergency Power Off Active power meter, Cascadable, Current meter, Energy meter, LED display, Overload protection, Power factor meter, Raritan SecureLock Ready, Real power meter, Voltage monitoring
Frequency 50/60 hertz
Input Connector Type Power IEC 60309 60A
Input Voltage Range AC 208 – 240 V
Input Wiring 3-phase 4 Wire delta
Max Input Current 48 ampere
Output Connector Quantity 24
Output Connector Type Power IEC 60320 C13, Power IEC 60320 C19
Power Capacity 20000 volt ampere per kilogram
Power Output Connectors Details 18 x IEC 60320 C19 16 A, 6 x IEC 60320 C13 12 A
Provided Voltage AC 208 volt
Required Voltage AC 208 volt
Technical Information Form Factor (Power Device) Rack-mountable
Max Operating Temperature 140 degree Fahrenheit
Min Operating Temperature 41 degree Fahrenheit
Operating Humidity 5 – 85%
Protection Type Circuit breaker
Product Information Packaged Quantity 1
Product Type Power distribution unit
Subcategory Power distribution devices
Included Items Cables Power cable – integrated – 10 ft
Dimensions & Weight Height 70.1 inch
Height (Rack Units) 0
Width 2.3 inch
Depth 3.1 inch
Physical Characteristics Color Black powder coat
Color Category Black
