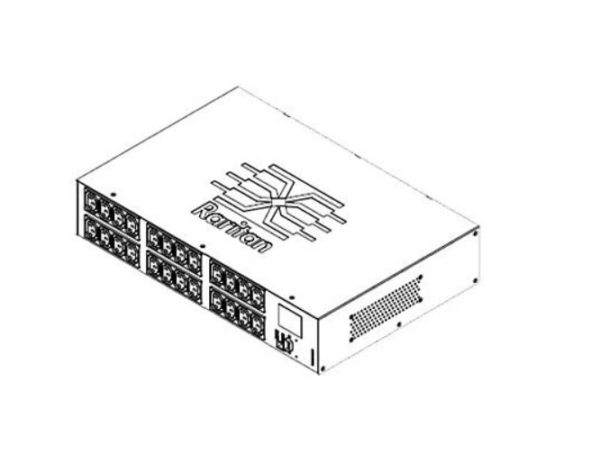

Raritan PX intelligent PX3-5520R – power distribution unit – 8600 VA

Add to Wishlist

Quick tech specs

  • 5520R
  • AC 208 V
  • 3-phase WYE (star)
  • input: NEMA L21-30
  • 2U
  • Power distribution unit (rack-mountable)
  • 8600 VA
  • Ethernet 10/100, RS-232
  • output connectors: 24 (power IEC 60320 C13)
  • black powder coat

AED12,299.00

Add to Wishlist

Know your gear

PX intelligent PDUs are fully engineered with fail-safe components, features and techniques to ensure the most reliable infrastructure possible, now and for years to come.
PX intelligent PDUs help eliminate human error and can withstand the harshest environments. With monitoring features that proactively detect problems, and a physical design that adapts to the harshest conditions, this solution protects your critical load in all circumstances.
SKU: PX3-5520R Category: Tag:
Overview šŸ”½
Attribute Details
Brand Raritan
Product Line Raritan PX intelligent
Model PX3-5520R
Manufacturer Raritan
Network & Communication šŸ”½
Attribute Details
Remote Management HTTP, HTTPS, SNMP 2, SNMP 3, SSH, Telnet
Remote Management Interface Ethernet 10/100, RS-232
Connectivity šŸ”½
Attribute Details
Input Connectors 1
Interface Provided 1 x LAN – RJ-45
1 x monitoring – RJ-12
1 x monitoring – RJ-45
1 x RS-232 – 9 pin D-Sub (DB-9)
1 x USB – 4 pin USB Type B
2 x USB – 4 pin USB Type A
Power šŸ”½
Attribute Details
Emergency Power Off Active power meter, Cascadable, Current meter, Energy meter, LED display, Overload protection,
Power factor meter, Raritan SecureLock Ready, Real power meter, Splash-proof plug, Voltage monitoring
Frequency 50/60 hertz
Input Connector Type Power NEMA L21-30
Input Voltage Range AC 190 – 208 V
Input Wiring 3-phase WYE (star)
Max Input Current 24 ampere
Output Connector Quantity 24
Output Connector Type Power IEC 60320 C13
Power Capacity 8600 volt ampere per kilogram
Power Output Connectors 24 x power IEC 60320 C13 – 208 V 12 A
Provided Voltage AC 208 volt
Required Voltage AC 208 volt
Technical Information šŸ”½
Attribute Details
Form Factor (Power Device) Rack-mountable
Max Operating Temperature 140 Ā°F
Min Operating Temperature 41 Ā°F
Operating Humidity 5 – 85%
Protection Type Circuit breaker
Product Information šŸ”½
Attribute Details
Packaged Quantity 1
Product Type Power distribution unit
Rack Mounting Kit Included
Subcategory Power distribution devices
Included Items šŸ”½
Attribute Details
Cables Power cable – integrated – 10 ft
Dimensions & Weight šŸ”½
Attribute Details
Height 3.5 inch
Height (Rack Units) 2
Width 17.3 inch
Depth 11.5 inch
Physical Characteristics šŸ”½
Attribute Details
Color Black powder coat
Color Category Black
