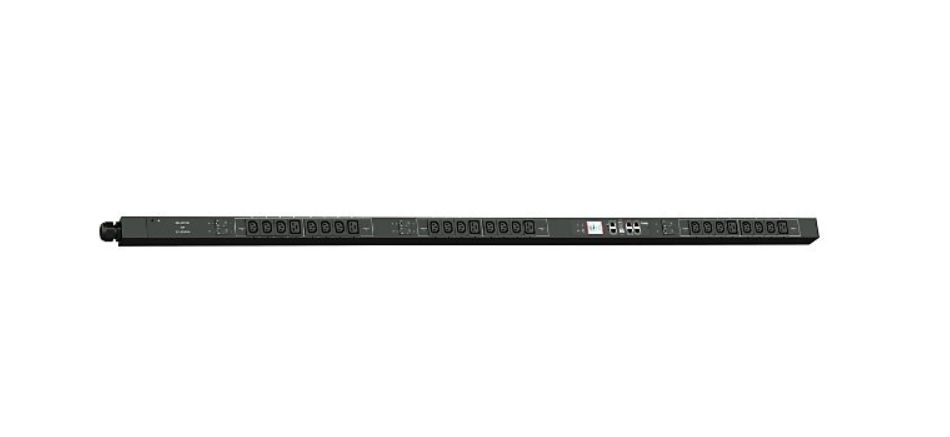

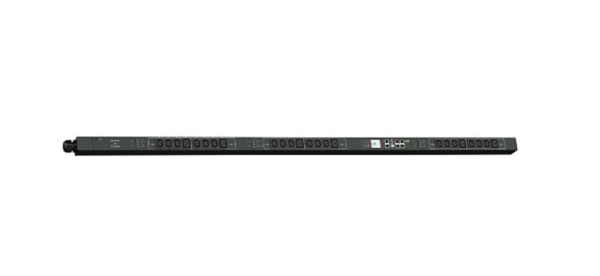

Raritan PX intelligent PX3-5528V-V2 – power distribution unit – 22200 VA

Add to Wishlist

Quick tech specs

  • 5528V-V2
  • AC 400 V
  • 3-phase WYE (star)
  • input: IEC 60309 32A
  • 0U
  • black powder coat
  • Power distribution unit (rack-mountable)
  • 22200 VA
  • Ethernet 10/100, RS-232, Ethernet 10/100/1000
  • output connectors: 24 (6 x IEC 60320 C19, 18 x IEC 60320 C13)
  • 10 ft cord

AED12,999.00

Add to Wishlist

Know your gear

SKU: PX3-5528V-V2 Category: Tag:
Overview
Attribute Value
Brand Raritan
Product Line Raritan PX intelligent
Model PX3-5528V-V2
Manufacturer Raritan
Network & Communication
Attribute Value
Remote Management HTTP, HTTPS, JSON-RPC, Modbus, SMTP, SNMP 2, SNMP 3, SSH, Telnet
Remote Management Interface Ethernet 10/100, Ethernet 10/100/1000, RS-232
Connectivity
Attribute Value
Input Connectors 1
Interface Provided 1 x cascading – RJ-45
1 x management (Fast Ethernet) – RJ-45
1 x management (Gigabit Ethernet) – RJ-45
1 x RS-232 – RJ-45
1 x USB – 4 pin USB Type B
2 x monitoring – RJ-45
2 x USB – 4 pin USB Type A
Power
Attribute Value
Emergency Power Off Cord retention outlet, LCD display, Metering (branch/input/output), Monitored, Overcurrent & Overload protection, SecureLock, Remote switching, Replaceable controller
Frequency 50/60 hertz
Input Connector Type Power IEC 60309 32A
Input Voltage Range AC 380 – 415 V
Input Wiring 3-phase WYE (star)
Max Input Current 32 ampere
Output Connector Quantity 24
Output Connector Type 18 x IEC 60320 C13, 6 x IEC 60320 C19
Power Capacity 22200 volt ampere per kilogram
Power Capacity Details 21.1 kVA at 380 V, 23 kVA at 415 V
Power Output Connectors Details 18 x IEC 60320 C13 – 230 V 10 A
6 x IEC 60320 C19 – 230 V 16 A
Provided Voltage AC 230 volt
Required Voltage AC 400 volt
Technical Information
Attribute Value
Form Factor (Power Device) Rack-mountable
Max Operating Temperature 140°F
Operating Humidity 85%
Protection Type Circuit breaker
Product Information
Attribute Value
Cord Length 10 ft
Features Vertical orientation
Packaged Quantity 1
Product Type Power distribution unit
Subcategory Power distribution devices
Included Items
Attribute Value
Cables Power cable 10 ft
Dimensions & Weight
Attribute Value
Height 70.1 inch
Height (Rack Units) 0
Weight 15.65 lbs
Width 2 inch
Depth 2.6 inch
Physical Characteristics
Attribute Value
Color Black powder coat
Color Category Black
