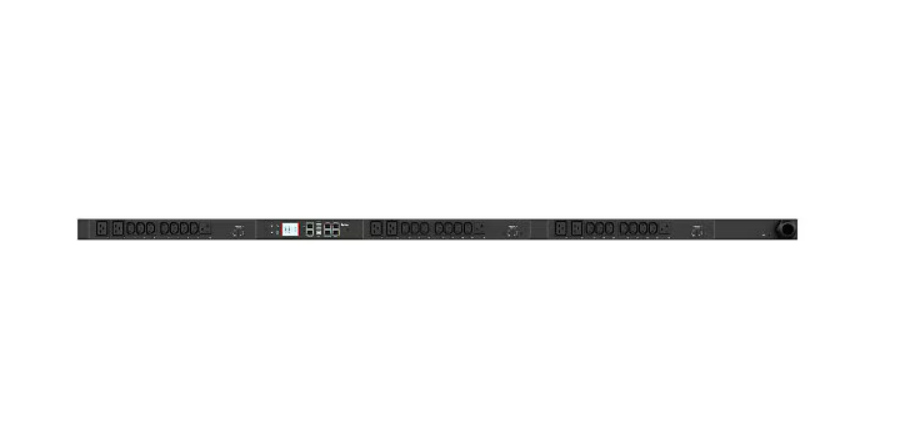

Raritan PX intelligent PX3-5660 – power distribution unit – 8600 VA

Add to Wishlist

Quick tech specs

  • 5660
  • AC 208 V
  • 3-phase WYE (star)
  • input: NEMA L21-30P
  • 0U
  • black powder coat
  • Power distribution unit (rack-mountable)
  • 8600 VA
  • Ethernet 10/100, RS-232, USB, Ethernet 10/100/1000
  • output connectors: 30 (6 x IEC 60320 C19, 21 x IEC 60320 C13, 3 x NEMA 5-20R)
  • 10 ft cord

AED13,599.00

Add to Wishlist

Know your gear

From the ground up, PX Intelligent PDUs are architected with components, features, and failsafes that ensure the most reliable infrastructure possible, both now and for years to come.
SKU: PX3-5660 Category: Tag:
Overview
Field Value
Brand Raritan
Product Line Raritan PX intelligent
Model PX3-5660
Manufacturer Raritan
Network & Communication
Field Value
Remote Management HTTP, HTTPS, JSON-RPC, Modbus, SMTP, SNMP 2, SNMP 3, SSH, Telnet
Remote Management Interface Ethernet 10/100, Ethernet 10/100/1000, RS-232, USB
Connectivity
Field Value
Input Connectors 1
Interface Provided 1 x cascading – RJ-45, 1 x management (Fast Ethernet) – RJ-45, 1 x management (Gigabit Ethernet) – RJ-45, 1 x management (RS-232) – RJ-45, 1 x management (USB) – 4 pin USB Type B, 1 x monitoring – RJ-45, 1 x sensor, 2 x USB – 4 pin USB Type A
Power
Field Value
Emergency Power Off Active power meter, Cascadable, Cord retention outlet, Current meter, Energy meter, LCD display, Metering per branch circuit breaker, Metering per input line, Metering per output receptacle, Overload protection, Power cable IP44 compliant, Power factor meter, Raritan SecureLock Ready, Real power meter, Replaceable controller, Voltage monitoring
Frequency 50/60 hertz
Input Connector Type Power NEMA L21-30P
Input Voltage Range AC 190 – 208 V
Input Wiring 3-phase WYE (star)
Max Input Current 30 ampere
Output Connector Quantity 30
Output Connector Type 21 x power IEC 60320 C13, 3 x power NEMA 5-20R, 6 x power IEC 60320 C19
Power Capacity 8600 volt ampere per kilogram
Power Capacity Details 7.9 kVA at 190 V, 8.6 kVA at 208 V
Power Output Connectors Details 21 x IEC 60320 C13 – 120 V 12 A, 3 x NEMA 5-20R – 120 V 16 A, 6 x IEC 60320 C19 – 120 V 16 A
Provided Voltage AC 120 volt
Required Voltage AC 208 volt
Technical Information
Field Value
Form Factor (Power Device) Rack-mountable
Max Operating Temperature 140 °F
Operating Humidity 85%
Protection Type Circuit breaker
Product Information
Field Value
Cord Length 10 ft
Packaged Quantity 1
Product Type Power distribution unit
Subcategory Power distribution devices
Included Items
Field Value
Cables Power cable – integrated – 10 ft
Dimensions & Weight
Field Value
Height 70.1 inch
Height (Rack Units) 0
Weight 18.96 lbs
Width 2 inch
Depth 2.6 inch
Physical Characteristics
Field Value
Color Black powder coat
Color Category Black
