Power distribution unit

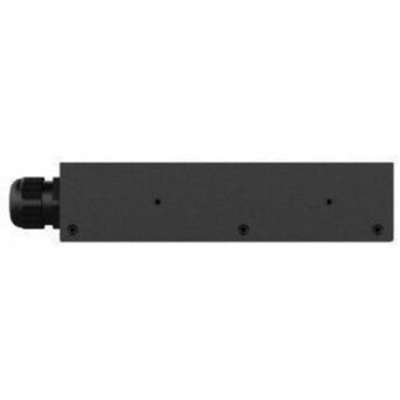

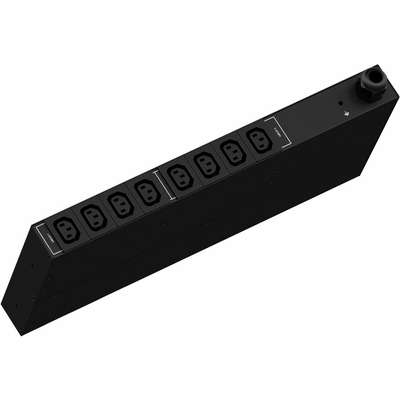

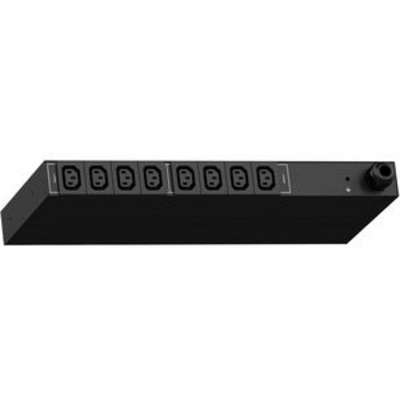

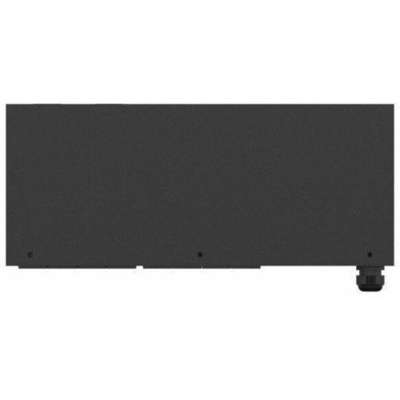

Raritan PX3-5200R-Q1: (U) 1-230V Ipdu with 8 1u Black
- Energy-efficient operation – Monitors voltage, current, and power consumption for optimized usage
- Remote management – Allows outlet-level control via web interface
- High compatibility – Works with 208V-230V systems common in data centers
AED8,199.00
Monitored and switched rack PDU providing power distribution for IT equipment with energy metering and remote control capabilities.
| Category | Attribute | Details |
|---|
| General Information | Product Name | PX3-5200R-Q1: (U) 1-230V Ipdu with 8 1u Black |
| Product Series | PX3 |
| Product Model | PX3-5200R-Q1 |
| Product Type | PDU |
| Technical Information | PDU Type | Switched with Metered-by-Outlet |
| Phase | Single Phase |
| Plug / Connector Type | NEMA L6-30P (2P3W) |
| Receptacle Type | IEC 60320 C13 |
| Receptacle Detail | 8 x IEC 60320 C13 |
| Protection Type | Branch Circuit |
| Overload Protection | — |
| Locking Receptacles | SecureLock |
| Load Capacity (VA) | 5 W |
| Interfaces/Ports | Network (RJ-45) | Yes |
| Environmental Conditions | Maximum Operating Temperature | 140°F (60°C) |
| Maximum Operating Humidity | 85% |
| Management | Remote Outlet Switching | Yes |
| Power Description | Input Voltage | 230 V AC |
| Input Voltage Range | 200 V AC – 240 V AC |
| Output Voltage | 208 V AC |
| Output Voltage Range | 200 V AC – 240 V AC |
| Power Rating (VA) | 5800 VA |
| Input Current | 30 A |
| Input Frequency | 60 Hz |
| Physical Characteristics | Color Family | Other |
| Product Color | Black Powder Coat |
| Mount Type | Rack-mountable |
| Cord Length | 9.84 ft |
| Height | 1.7″ |
| Width | 17.3″ |
| Depth | 7.2″ |
