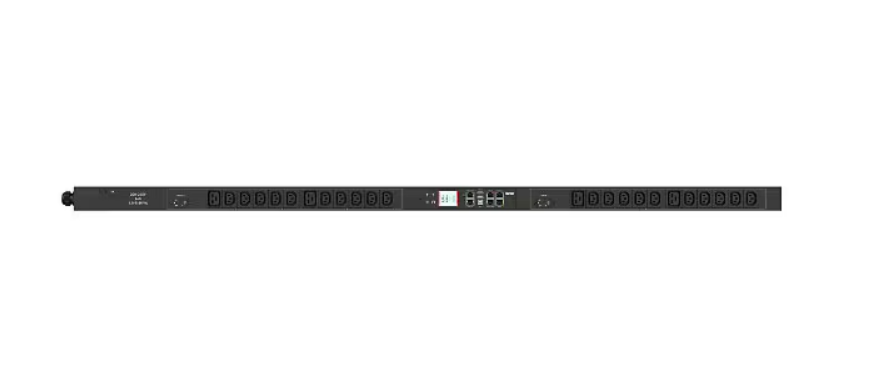

Raritan PX3-5497U – power distribution unit – 5000 VA


Quick tech specs

  • No. of Phase: 1
  • Maximum Input Current: 30A
  • Input Plug: NEMA L6-30P (2P3W)
  • Receptacles (Output Connections): 20x IEC320 C13,4x IEC320 C19
  • Voltage: 208V
  • Rated Input Current: 24A
  • Cord Length: 3m

AED9,699.00

Know your gear

The Raritan PX3-5497U Rack PDU is architected with components, features and failsafes that ensure reliable infrastructure. Designed to eliminate human error and withstand harsh environments, it comes with monitoring features that spot problems in advance and physical design elements that adapt to the toughest conditions. This simple-to-deploy and simple-to-use PDU protects your critical load under any circumstances. Engineered with electricians, infrastructure managers and IT experts in mind, the PX PDU offers a simple user experience for seamless physical deployment, configuration, commissioning, monitoring and power delivery.

SKU: PX3-5497U Category: Tag:
Category Attribute Value
Overview Brand Raritan
Product Line Raritan
Model PX3-5497U
Manufacturer Raritan
Network & Communication Remote Management HTTP, HTTPS, JSON-RPC, SMTP, SNMP 2, SNMP 3, SSH, Telnet
Remote Management Interface Ethernet 10/100, Ethernet 10/100/1000, RS-232
Connectivity Input Connectors 1
Power Emergency Power Off Active power meter, Cascadable, Current meter, Energy meter, Metering per branch circuit breaker, Metering per input line, Metering per output receptacle, Overcurrent protection, Overload protection, Power factor meter, Raritan SecureLock Ready, Real power meter, Remote outlet switching, Replaceable controller, Voltage monitoring
Frequency 50/60 hertz
Input Connector Type Power NEMA L6-30P
Input Voltage Range AC 200 – 240 V
Max Input Current 30 ampere
Output Connector Quantity 24
Output Connector Type 20 x power IEC 60320 C13, 4 x power IEC 60320 C19
Power Capacity 5000 volt ampere per kilogram (⚠ May be incorrect unit)
Power Capacity Details 4.8 kVA at 200 V, 5.8 kVA at 240 V
Power Output Connectors Details 20 x power IEC 60320 C13 12 A, 4 x power IEC 60320 C19 16 A
Provided Voltage AC 208 volt
Required Voltage AC 208 volt
Technical Information Form Factor (Power Device) Rack-mountable
Max Operating Temperature 140°F
Operating Humidity 85%
Protection Type Circuit breaker
Product Information Cord Length 10 ft
Features Vertical orientation
Packaged Quantity 1
Product Type Power distribution unit
Subcategory Power distribution devices
Included Items Cables Power cable – integrated – 10 ft
Dimensions & Weight Height 60.6 inch
Height (Rack Units) 0
Weight 11.9 lbs
Width 2 inch
Depth 2.6 inch
Physical Characteristics Color Black
Color Category Black
