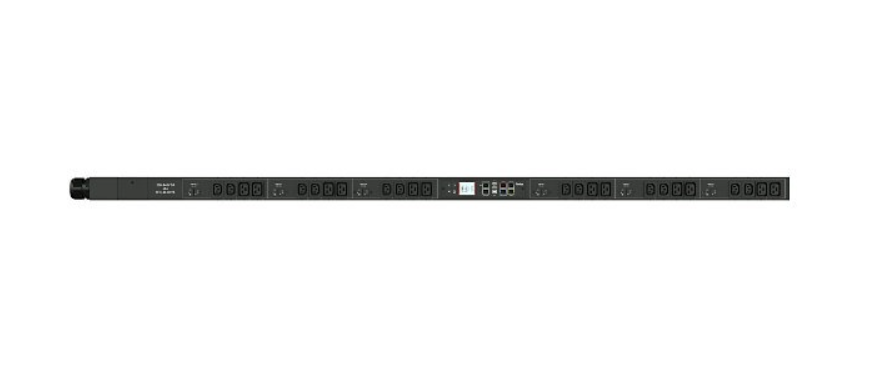

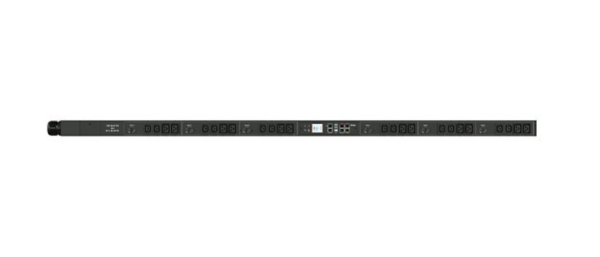

Raritan PX3-5551V-V2K2 – power distribution unit – 17300 VA

Add to Wishlist

Quick tech specs

  • 5551V-V2K2
  • AC 208 V
  • 3-phase delta
  • input: IEC 60309 60A
  • 0U
  • blue
  • Power distribution unit (rack-mountable)
  • 17300 VA
  • RS-232, USB, Ethernet 10/100/1000
  • output connectors: 24 (12 x IEC 60320 C13, 12 x IEC 60320 C19)
  • 10 ft cord

AED16,499.00

Add to Wishlist

Know your gear

SKU: PX3-5551V-V2K2 Category: Tag:
Overview
Field Value
Brand Raritan
Product Line Raritan
Model PX3-5551V-V2K2
Manufacturer Raritan
Network & Communication
Field Value
Remote Management HTTP, HTTPS, JSON-RPC, SMTP, SNMP 2, SNMP 3, SSH, Telnet
Remote Management Interface Ethernet 10/100/1000, RS-232, USB
Connectivity
Field Value
Input Connectors 1
Interface Provided 1 x LAN – RJ-45, 1 x management (Fast Ethernet) – RJ-45, 1 x management (Gigabit Ethernet) – RJ-45, 1 x monitoring – RJ-12, 1 x monitoring – RJ-45, 1 x RS-232 – RJ-45, 1 x USB – 4 pin USB Type B, 2 x USB – 4 pin USB Type A
Power
Field Value
Emergency Power Off Active power meter, Cascadable, Cord retention outlet, Current meter, Energy meter, LCD display, Metering per branch circuit breaker, Metering per input line, Metering per output receptacle, Overload protection, Power factor meter, Raritan SecureLock Ready, Real power meter, Remote outlet switching, Replaceable controller, Voltage monitoring, Watertight plug
Frequency 50/60 hertz
Input Connector Type Power IEC 60309 60A
Input Voltage Range AC 208 – 240 V
Input Wiring 3-phase delta
Max Input Current 48 ampere
Output Connector Quantity 24
Output Connector Type 12 x power IEC 60320 C13, 12 x power IEC 60320 C19
Power Capacity 17300 volt ampere per kilogram
Power Capacity Details 17.3 kVA at 208 V, 20 kVA at 240 V
Power Output Connectors Details 12 x IEC 60320 C13 – 208 V 12 A, 12 x IEC 60320 C19 – 208 V 16 A
Provided Voltage AC 208 volt
Required Voltage AC 208 volt
Technical Information
Field Value
Form Factor (Power Device) Rack-mountable
Max Operating Temperature 140 °F
Operating Humidity 85%
Protection Type Circuit breaker
Product Information
Field Value
Cord Length 10 ft
Image Color Disclaimer The displayed product image may be a different color
Packaged Quantity 1
Product Type Power distribution unit
Rack Mounting Kit Included
Subcategory Power distribution devices
Included Items
Field Value
Cables Power cable – integrated – 10 ft
Dimensions & Weight
Field Value
Height 70.1 inch
Height (Rack Units) 0
Weight 27.12 lbs
Width 2.3 inch
Depth 3.1 inch
Physical Characteristics
Field Value
Color Blue
Color Category Blue
