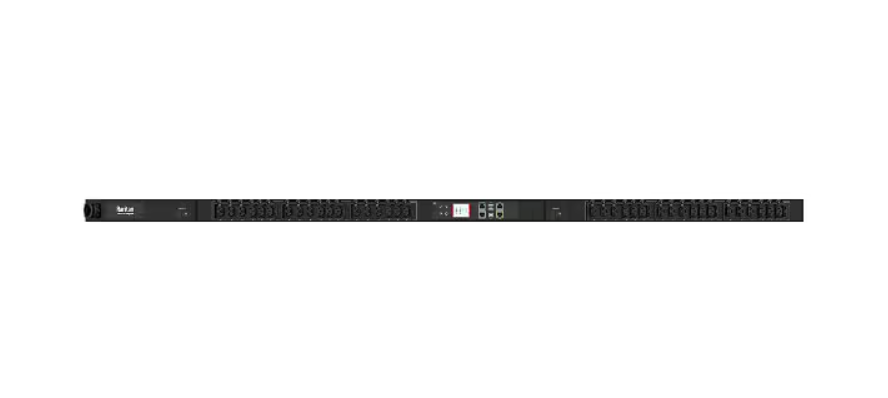

Raritan PX4-431A-E7 – power distribution strip – 24A – 5000 VA

Add to Wishlist

Quick tech specs

  • 431A-E7
  • 24A
  • 5000 VA
  • RS-232, USB, Ethernet 10/100/1000
  • output connectors: 36 (18 x IEC 60320 C13, 18 x IEC 60320 Cx)
  • 10 ft cord
  • Power distribution strip (rack-mountable)
  • AC 208 V
  • 1-phase
  • input: NEMA L6-30P
  • 0U
  • blue

AED12,699.00

Add to Wishlist

Know your gear

The Raritan PX4-431A-E7 is a specialized solution for managing power in data centers and networking environments. Its rack-mountable form factor is designed to optimize space and ensure efficient power distribution to critical equipment. This model is particularly suited for businesses looking to improve their power management systems, providing seamless integration with existing UPS and power devices. With its focus on reliability and efficiency, the PX4-431A-E7 is an essential component for maintaining the uptime and performance of your infrastructure.
SKU: PX4-431A-E7K2 Category: Tag:
Category Attribute Value
Overview Brand Raritan
Product Line Raritan
Model PX4-431A-E7
Manufacturer Raritan
Network & Communication Remote Management HTTP, HTTPS, JSON-RPC, Modbus TCP, SMTP, SNMP 2, SNMP 3, SSH, Telnet
Remote Management Interface Ethernet 10/100/1000, RS-232, USB
Connectivity Input Connectors 1
Interface Provided 1 x management (USB) – 4 pin USB Type B, 1 x PDU link – RJ-45, 1 x sensor – RJ-45, 2 x management (Gigabit Ethernet) – RJ-45, 2 x USB – 4 pin USB Type A
Power Emergency Power Off 2 x J62-X0 overload protection, Active power meter, Bottom-front feed cord entry, Cascadable, Current meter, Energy meter, Environmental sensor ready, Hot-swappable controller, Locking outlets, Metering per branch circuit breaker, Metering per input line, Metering per output receptacle, Power factor meter, Raritan SecureLock Ready, Real power meter, Voltage meter
Frequency 50/60 hertz
Input Connector Type Power NEMA L6-30P
Input Voltage Range AC 200 – 240 V
Input Wiring 1-phase
Max Input Current 30 ampere
Output Connector Quantity 36
Output Connector Type 18 x power IEC 60320 C13, 18 x power IEC 60320 Cx
Power Capacity 5000 volt ampere per kilogram (āš  May be incorrect unit)
Power Capacity Details 4.8 kVA at 200 V, 5.8 kVA at 240 V
Power Output Connectors Details 18 x power IEC 60320 C13 12 A, 18 x power IEC 60320 Cx 16 A
Provided Voltage AC 208 volt
Required Voltage AC 208 volt
Technical Information Form Factor (Power Device) Rack-mountable
Max Operating Temperature 140Ā°F
Operating Humidity 5 – 95% RH (non-condensing)
Product Information Cord Length 10 ft
Features Extruded aluminum housing, Tool-less button mount
Image Color Disclaimer The displayed product image may be a different color
Packaged Quantity 1
Product Type Power distribution strip
Subcategory Power distribution devices
Included Items Cables Power cable 10 ft
Dimensions & Weight Height 70.1 inch
Height (Rack Units) 0
Width 2.2 inch
Depth 2.6 inch
Physical Characteristics Color Blue
Color Category Blue
