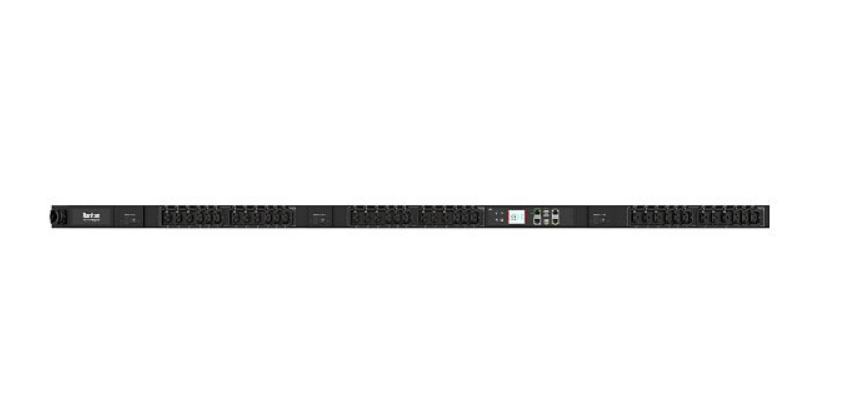

Raritan PX4-434A-E7 – power distribution unit – 10000 VA

Add to Wishlist

Quick tech specs

  • 434A-E7
  • AC 208 V
  • 3-phase delta
  • input: NEMA L15-30P
  • 10 ft cord
  • Power distribution unit (rack-mountable)
  • 10000 VA
  • Ethernet 10/100/1000, RS-232, USB
  • output connectors: 36 (18 x IEC 60320 C13, 18 x IEC 60320 C19)
  • red

AED12,599.00

Add to Wishlist

Know your gear

The Raritan PX4-434A-E7 power distribution unit handles demanding power needs while ensuring optimal efficiency. With a maximum power capacity of 10,000 VA, it supports a wide voltage range of AC 208 V to 240 V, making it suitable for various environments. The unit features 36 output connectors, including 18 power IEC 60320 C13 and 18 power IEC 60320 C19, allowing versatile setups. An integrated LCD display provides real-time power metrics, while LED indicators enhance usability. The tool-less button mount simplifies installation, and its rack-mountable design enables seamless integration into existing infrastructure. Remote management protocols such as SNMP and Telnet facilitate efficient monitoring and control, ensuring that power distribution is streamlined and reliable. Environmental sensors can be integrated with this unit, enhancing its operational capabilities in various conditions.
SKU: PX4-434A-E7K1 Category: Tag:
Overview
Field Value
Brand Raritan
Product Line Raritan
Model PX4-434A-E7
Manufacturer Raritan
Network & Communication
Field Value
Remote Management HTTP, HTTPS, JSON-RPC, Modbus TCP, SMTP, SNMP 2, SNMP 3, SSH, Telnet
Remote Management Interface Ethernet 10/100/1000, RS-232, USB
Connectivity
Field Value
Input Connectors 1
Interface Provided 1 x management (USB) – 4 pin USB Type B, 1 x PDU link – RJ-45, 1 x sensor – RJ-45, 2 x management (Gigabit Ethernet) – RJ-45, 2 x USB – 4 pin USB Type A
Power
Field Value
Emergency Power Off 3 x J62-X0 overload protection, Active power meter, Auto-Flip Current Display, Bottom-front feed cord entry, Cascadable, Current meter, Energy meter, Environmental sensor ready, LCD display, LED indicators, Metering per branch circuit breaker, Metering per input line, Power factor meter, Raritan SecureLock Ready, Real power meter, Replaceable controller, Voltage meter
Frequency 50/60 hertz
Input Connector Type Power NEMA L15-30P
Input Voltage Range AC 208 – 240 V
Input Wiring 3-phase delta
Max Input Current 30 ampere
Output Connector Quantity 36
Output Connector Type 18 x power IEC 60320 C13, 18 x power IEC 60320 C19
Power Capacity 10000 volt ampere per kilogram
Power Capacity Details 10.0 kVA at 240 V, 8.6 kVA at 208 V
Power Output Connectors Details 18 x power IEC 60320 C13 12 A, 18 x power IEC 60320 C19 16 A
Provided Voltage AC 208 volt
Required Voltage AC 208 volt
Technical Information
Field Value
Form Factor (Power Device) Rack-mountable
Max Operating Temperature 140 °F
Operating Humidity 85%
Product Information
Field Value
Cord Length 10 ft
Features Tool-less button mount
Image Color Disclaimer The displayed product image may be a different color
Packaged Quantity 1
Product Type Power distribution unit
Subcategory Power distribution devices
Included Items
Field Value
Cables Power cable 10 ft
Dimensions & Weight
Field Value
Height 70.1 inch
Width 2.2 inch
Depth 2.6 inch
Physical Characteristics
Field Value
Color Red
Color Category Red
