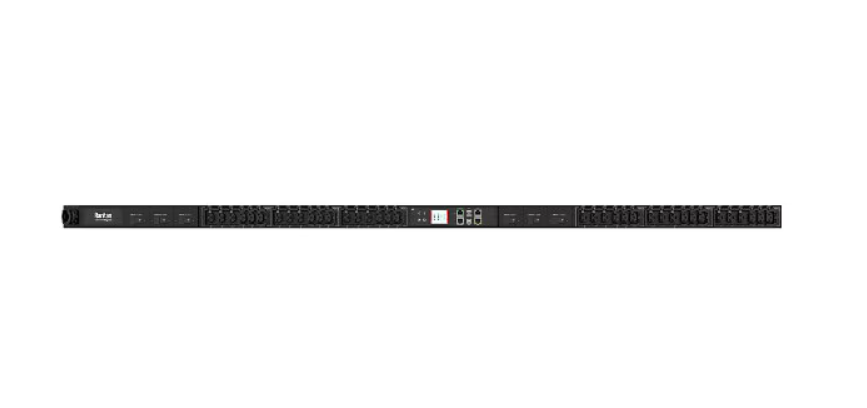

Raritan PX4-532AI3-E7V2 – power distribution strip – 17300 VA

Add to Wishlist

Quick tech specs

  • 532AI3-E7V2
  • AC 208 V
  • 3-phase delta
  • input: IEC 60309 3P+N+E
  • 0U
  • blue
  • Power distribution strip (rack-mountable)
  • 17300 VA
  • Ethernet 10/100/1000, RS-232, USB
  • output connectors: 36 (18 x IEC 60320 C13, 18 x IEC 60320 Cx)
  • 10 ft cord

AED22,799.00

Add to Wishlist

Know your gear

The Raritan PX4-532AI3-E7V2 power distribution strip is designed to meet the demands of modern data centers and high-availability environments. With a robust power capacity of 17.3 kVA at 208 V, it can support a wide array of devices, ensuring that your critical equipment remains powered in demanding situations.
This device is about smart power management. With advanced remote management capabilities through Ethernet, RS-232, and USB, administrators can monitor and control power distribution from anywhere, ensuring operational efficiency and reliability. The PX4-532AI3-E7V2 is built to perform in a variety of environmental conditions, with a wide operating humidity range and a high maximum temperature tolerance, making it a reliable choice for nearly any setting.
Moreover, its design emphasizes both security and versatility. The extruded aluminum housing, combined with toolless button mount, offers a secure, flexible installation solution that can adapt to different rack configurations. With comprehensive monitoring features, including active and real power metering, and readiness for environmental sensors, this power distribution strip provides detailed insights into power usage while ensuring the safety and efficiency of your operations.
SKU: PX4-532AI3-E7V2K2 Category: Tag:
Overview
Field Value
Brand Raritan
Product Line Raritan
Model PX4-532AI3-E7V2
Manufacturer
Raritan
Network & Communication
Field Value
Remote Management HTTP, HTTPS, JSON-RPC, Modbus TCP, SMTP, SNMP 2, SNMP 3, SSH, Telnet
Remote Management Interface Ethernet 10/100/1000, RS-232, USB
Connectivity
Field Value
Interface Provided 1 x management (USB) – 4 pin USB Type B, 1 x PDU link – RJ-45, 1 x sensor – RJ-45, 2 x management (Gigabit Ethernet) – RJ-45, 2 x USB – 4 pin USB Type A
Power
Field Value
Emergency Power Off 6 x J62-X0 overload protection, Active power meter, Bottom-front feed cord entry, Cascadable, Current meter, Energy meter, Environmental sensor ready, LCD display, LED indicators, Metering per branch circuit breaker, Metering per input line, Metering per output receptacle, Power factor meter, Raritan SecureLock Ready, Real power meter, Remote outlet switching, Replaceable controller, Voltage meter
Frequency 50/60 hertz
Input Connector Type Power IEC 60309 3P+N+E
Input Voltage Range AC 190 – 208 V
Input Wiring 3-phase delta
Max Input Current 60 ampere
Output Connector Quantity 36
Output Connector Type 18 x power IEC 60320 C13, 18 x power IEC 60320 Cx
Power Capacity 17300 volt ampere per kilogram
Power Capacity Details 15.8 kVA at 190 V, 17.3 kVA at 208 V
Power Output Connectors Details 18 x power IEC 60320 C13 – 208 V 12 A, 18 x power IEC 60320 Cx – 208 V 16 A
Provided Voltage AC 208 volt
Required Voltage AC 208 volt
Technical Information
Field Value
Form Factor (Power Device) Rack-mountable
Max Operating Temperature 140 degree Fahrenheit
Operating Humidity 5 – 95% (non-condensing)
Protection Type Circuit breaker
Product Information
Field Value
Cord Length 10 ft
Features Extruded aluminum housing, Powder-coated, Tool-less button mount
Image Color Disclaimer The displayed product image may be a different color
Packaged Quantity 1
Product Type Power distribution strip
Subcategory Power distribution devices
Included Items
Field Value
Cables Power cable 10 ft
Dimensions & Weight
Field Value
Height 70.1 inch
Height (Rack Units) 0
Weight 22 lbs
Width 2.2 inch
Depth 2.6 inch
Physical Characteristics
Field Value
Color Blue
Color Category Blue
