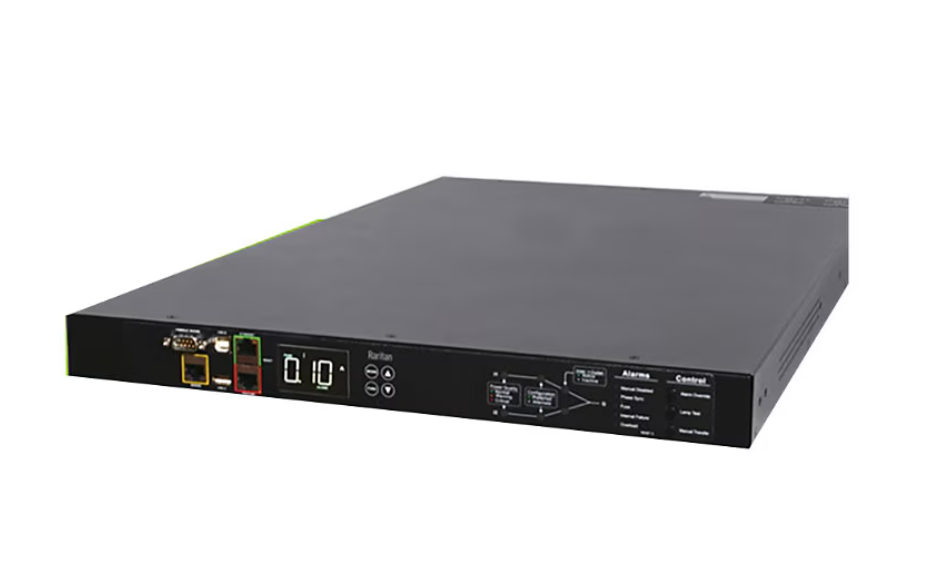

Raritan Rack Transfer Switches PX3TS-1147R – power control unit

Add to Wishlist

Quick tech specs

  • 1147R
  • AC 120 V
  • input: NEMA L5-20
  • 1U
  • Power control unit (rack-mountable)
  • Ethernet, RS-232, USB
  • output connectors: 8

AED12,299.00

Add to Wishlist

Know your gear

Raritan’s innovative hybrid rack transfer system provides industry leading performance and maximum reliability. Traditional automatic transfer switches (ATS) suffer from longer transfer times of 8 to 16 ms, and often fail as a result of electrical arcing that welds contacts together. Static transfer switches (STS) offer very fast transfers of 4 to 6 ms, but are over five and half times more expensive than ATS, draw far more energy and produce excess heat.
Raritan’s hybrid transfer switch cleverly uses both electromechanical relays and silicon-controlled rectifiers (SCRs) to maximize the positive and minimize the negative characteristics of each.
SKU: PX3TS-1147R Category: Tag:
Category Attribute Value
Overview Brand Raritan
Product Line Raritan Rack Transfer Switches
Model PX3TS-1147R
Manufacturer Raritan
Network & Communication Remote Management SNMP
Remote Management Interface Ethernet, RS-232, USB
Connectivity Input Connectors 2
Interface Provided 1 x management – USB Type A (4 pin)
1 x management – DB-9 (9 pin D-Sub)
1 x management (Ethernet) – RJ-45
1 x modem – DB-9 (9 pin D-Sub)
1 x monitoring – RJ-12
1 x monitoring – RJ-45
1 x USB – USB Type A (4 pin)
1 x USB – USB Type B (4 pin)
Power Emergency Power Off LED display
Input Connector Type Power NEMA L5-20
Max Input Current 16 ampere
Output Connector Quantity 8
Power Output Connectors Details 8 x power NEMA 5-20
Provided Voltage AC 120 volt
Required Voltage AC 120 volt
Technical Information Form Factor (Power Device) Rack-mountable
Max Operating Temperature 140 degree Fahrenheit
Operating Humidity 0 – 85% (non-condensing)
Protection Type Fuse
Product Information Packaged Quantity 1
Product Type Power control unit
Subcategory Power distribution devices
Dimensions & Weight Height (Rack Units) 1
Physical Characteristics Color Category Black
