Raritan Single Phase 120V 20A 24xNEMA 520R Switched Power Distribution Unit

Add to Wishlist

Quick tech specs

  • Maximum Input Current: 20A
  • Power Capacity: 1.9kVA
  • IEC C20 120V Inlet Input Plug
  • Onboard Display
  • Cascading, Linking, Networking
  • Rated Input Current: 16A
  • 24xNEMA 520R Receptacle
  • UL Approval
  • Remote Management
  • Hot-swappable Replaceable Controller

AED10,899.00

Add to Wishlist

Know your gear

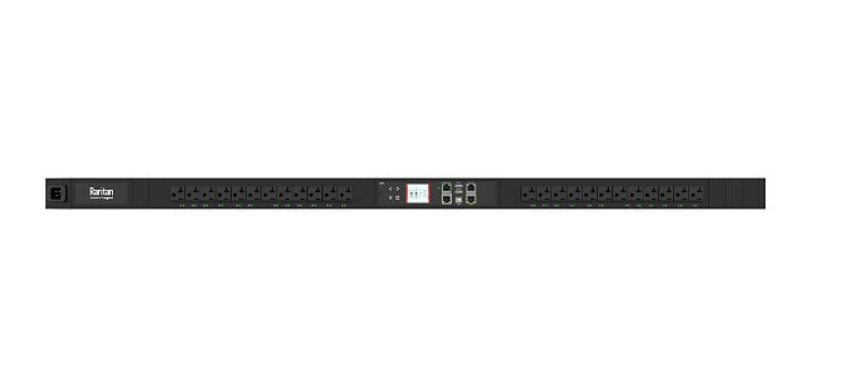

The Raritan PX4-5475C-A0 is a versatile power distribution unit designed for seamless operation and effective power management. With a cable length of 3 m, this unit supports various applications while ensuring reliable performance with a maximum operating temperature of 60 °C and humidity tolerance of up to 85%. Equipped with numerous output connectors, specifically 24 power NEMA 5-20R, it provides robust power distribution to multiple devices, making it suitable for data centers and IT environments. This power distribution unit features hot-swappable capabilities and multiple remote management protocols, including SNMP, Telnet, and SSH, ensuring easy monitoring and control. The integrated LCD display, along with various measuring tools such as an energy meter and current meter, provides insights into power usage and system status. With a power capacity of 1900 VA and the ability to handle electric currents of up to 20 A, the Raritan PX4-5475C-A0 excels in delivering reliable and efficient power solutions.
SKU: PX4-5475C-A0 Category: Tag:
Overview
Attribute Value
Brand Raritan
Product Line Raritan
Model PX4-5475C-A0
Manufacturer Raritan
Network & Communication
Attribute Value
Remote Management HTTP, HTTPS, JSON-RPC, Modbus, SMTP, SNMP 2, SNMP 3, SSH, Telnet
Remote Management Interface Ethernet 10/100/1000, RS-232, USB
Connectivity
Attribute Value
Input Connectors 1
Interface Provided 1 x management (USB) – 4 pin USB Type B
1 x PDU link – RJ-45
1 x sensor – RJ-45
2 x management (Gigabit Ethernet) – RJ-45
2 x USB – 4 pin USB Type A
Power
Attribute Value
Emergency Power Off Crest factor meter, Current meter, Energy meter, Inrush protection, LCD display, Power factor meter, Real power meter, Single mode connected L-N protection mode, Voltage meter
Input Connector Type Power IEC C20
Input Voltage Range AC 100 – 120 V
Input Wiring 1-phase
Max Input Current 20 ampere
Output Connector Quantity 24
Output Connector Type Power NEMA 5-20R
Power Capacity 1900 volt ampere per kilogram
Power Output Connectors Details 24 x power NEMA 5-20R – 208 V 16 A
Provided Voltage AC 120 volt
Required Voltage AC 120 volt
Technical Information
Attribute Value
Form Factor (Power Device) Rack-mountable
Max Operating Temperature 140 degree Fahrenheit
Operating Humidity 85%
Product Information
Attribute Value
Cord Length 10 ft
Features Hot-swappable
Packaged Quantity 1
Product Type Power distribution unit
Subcategory Power distribution devices
Included Items
Attribute Value
Cables Power cable 10 ft
Dimensions & Weight
Attribute Value
Height 5.1 inch
Weight 6.99 lbs
Width 2.2 inch
Depth 2.6 inch
Physical Characteristics
Attribute Value
Color Category Black
