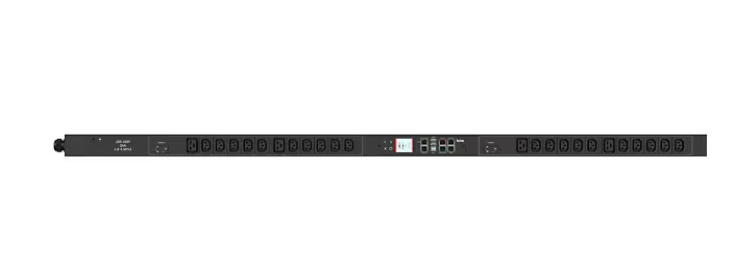

Raritan Single Phase 208V AC 24-Outlet Power Distribution Unit

Add to Wishlist

Quick tech specs

  • Voltage: 208V
  • Current: 30A
  • UL Regulatory Approval
  • Number of Outlets: 24
  • Input Plug: NEMA L6-30P

AED10,299.00

Add to Wishlist

Know your gear

The Raritan Single Phase Outlet Power Distribution Unit helps in keeping your equipment safe from damage caused by power spikes and surges. It has a power capacity of 30 A and a nominal voltage value of 208 volts. This PDU has 24 outputs which can be used to distribute power to various devices or equipment. The input plug of the PDU is a NEMA L6-30P plug. It also comes with UL Regulatory approval.

SKU: PX3-4497U-M5K2 Category: Tag:
Category Specification
Overview
Brand Raritan
Product Line Raritan
Model PX3-4497U-M5
Manufacturer Raritan
Network & Communication
Remote Management HTTP, HTTPS, JSON-RPC, Modbus TCP, SMTP, SNMP 2, SNMP 3, SSH, Telnet
Remote Management Interface Ethernet 10/100/1000, RS-232, USB
Connectivity
Input Connectors 1
Interface Provided 1 x console/modem – RJ-45, 1 x expansion – RJ-45, 1 x feature – RJ-45, 1 x management (USB) – 4 pin USB Type B, 1 x sensor – RJ-45, 2 x management (Gigabit Ethernet) – RJ-45, 2 x USB – 4 pin USB Type A
Power
Emergency Power Off Active power meter, Cascadable, Current meter, Energy meter, Environmental sensor ready, ISO/IEC 62053-21 1% metering accuracy, LCD display, Metering per input line, Overload protection, Power factor meter, Real power meter, Voltage meter
Input Connector Type Power NEMA L6-30P
Input Voltage Range AC 200 – 240 V
Input Wiring 1-phase
Max Input Current 30 ampere
Output Connector Quantity 24
Output Connector Type 20 x power IEC 60320 C13, 4 x power IEC 60320 C19
Power Capacity 5000 volt ampere per kilogram
Power Capacity Details 4.8 kVA at 200 V, 5.8 kVA at 240 V
Power Output Connectors Details 20 x power IEC 60320 C13, 4 x power IEC 60320 C19
Provided Voltage AC 240 volt
Required Voltage AC 208 volt
Technical Information
Form Factor (Power Device) Rack-mountable
Max Operating Temperature 140 degree Fahrenheit
Operating Humidity 85% RH
Product Information
Cord Length 10 ft
Packaged Quantity 1
Product Type Power distribution strip
Subcategory Power distribution devices
Included Items
Cables Power cable 10 ft
Dimensions & Weight
Height 60.6 inch
Height (Rack Units) 0
Width 2 inch
Depth 2.6 inch
Physical Characteristics
Color Blue
Color Category Blue
