Power distribution unit

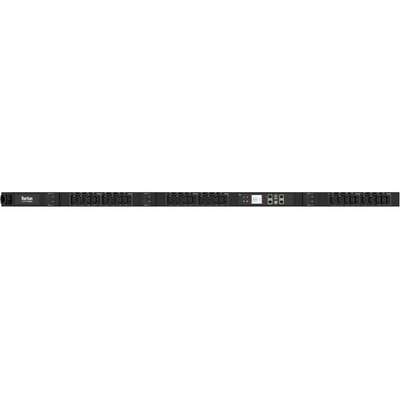

Raritan Switched PRO3X with Pips, 0U, 36 Ramlock Hdot Outlets (18 C13 + 18 CX), Color
- Compact Design – Occupies no rack space, perfect for maximizing available space.
- High Device Support – Offers a large number of outlets for diverse device types.
- Aesthetic Customization – Available in multiple colors to match specific environments.
AED15,499.00
This all new Server Technology PRO3X Switched PDU features RamLock HDOT outlets running with a Raritan Xerus Technology state of the art network interface module. Server Technology’s unique RamLock, a self-locking, elbow-catch mechanism to prevent accidental cord disconnects on standard network power cords. The PDU features HDOT outlets which are dedicated C13 outlets, while the other HDOT Cx outlets can be treated as either a C13 or C19 outlet. This innovative PDU combines input power and branch current monitoring, and outlet control with support for Raritan plug and play sensor types like temperature, humidity, water, dry contact closure, airflow, air pressure differential, and more.
| Category | Attribute | Details |
|---|
| General Information | Product Name | Switched PRO3X with Pips, 0U, 36 Ramlock Hdot Outlets (18 C13 + 18 CX), Color |
| Manufacturer Part Number | C3W36RL-EPJE2MT4 |
| Product Series | PRO3X |
| Product Type | PDU |
| Technical Information | PDU Type | Switched |
| Phase | Single Phase |
| Plug / Connector Type | IEC 2P+PE 6Hr 230V/32A |
| Receptacle Type | CX, IEC 60320 C13 |
| Receptacle Detail | 18 x CX, 18 x IEC 60320 C13 |
| Protection Type | Circuit Protection, Branch Circuit, Circuit Breaker, Fuse |
| Locking Receptacles | RamLock Locking Outlet |
| Features | Multi-color LCD |
| Interfaces/Ports | Network (RJ-45) | Yes |
| Environmental Sensors | Sensors | Temperature, Humidity, Differential Pressure, Contact Closure, Air Flow, Water |
| Environmental Conditions | Min Operating Temp | 32°F (0°C) |
| Max Operating Temp | 140°F (60°C) |
| Min Storage Temp | -40°F (-40°C) |
| Max Storage Temp | 185°F (85°C) |
| Min Operating Humidity | 8% |
| Max Operating Humidity | 90% |
| Management | Remote Outlet Switching | Yes |
| Power Description | Input Voltage | 230 V AC |
| Output Voltage | 230 V AC |
| Power Rating (Watt) | 7300 W |
| Input Current | 32 A |
| Physical Characteristics | Mount Type | Rack-mountable, Button Mount |
| Rack Height | 0U |
| Height | 70 in / 1778 mm |
| Width | 2.2 in / 55.88 mm |
| Depth | 2.5 in / 63.5 mm |
