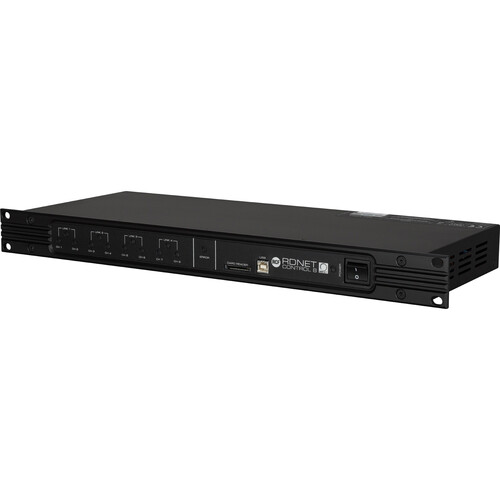

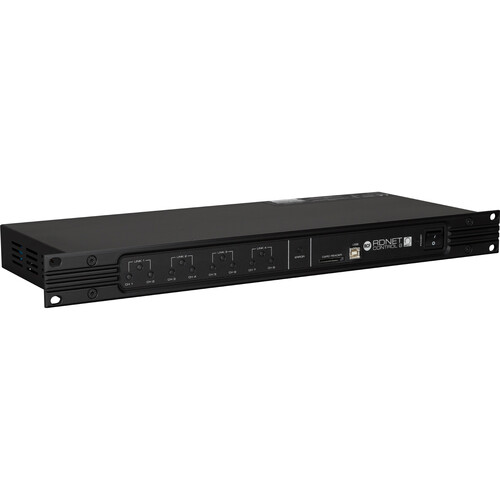

RCF RDNET8Ā Overview

TheĀ RDNet Control 8 Output Master UnitĀ fromĀ RCFĀ is a real-time monitor and control system able to manage up to 256 devices linked in a bus, or up to 128 devices in a ring topology. All the data collected from the slaves are delivered to the sound engineer via USB in a local installation, or via Ethernet from remote locations. The interface can be directly connected to the DSP on board of every TT+ line array module through the exclusive RDNet protocol, making it possible to address in single cabinets or groups, specific presets, or modification parameters in real-time.

The key point of RDNet Control 8 is to ensure minimum refresh time (at least 5 per second) of the system’s performance data, such as RMS signals, compressor activity, temperature, fans’ speed, warnings, etc. The data transfer can be routed also through the provided XLR connectors, enabling the control of the system on traditional multi-cored cables.

  • Bridges control and monitoring networks between Ethernet/USB and RDNet
  • Connects PC to Control 8 and controlling up to 8 subnets of maximum 32 slave devices
  • Configuring the net with bus or ring connections
  • Auto detect net configuration and registration
  • Controlling slave devices status and functions
  • Monitors and displays faults and warnings sent from slave devices
  • Stores subnet user’s filters configuration on removable memory card
SKU: RDNET8 Category: Tag:
Network
EIA RS-485 standard connection
Daisy-chain ring architecture or bus connection
Up to 8 subnets managed
Up to 32 slave devices per subnet

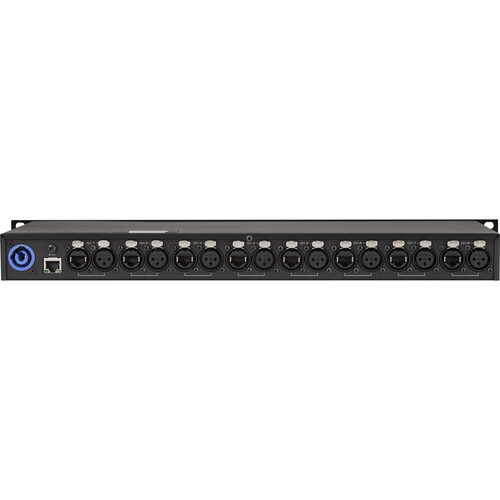

Connection
RDNet:
8x Ethercon housed RJ45 with Ethernet Cat5 cable
8x XLR chassis connectors with XLR data cable (alternative to RJ45)

PC:
USB standard connection
Front panel USB type B female connector for direct control
Rear panel standard RJ45 connector for remote control

Data Storage
4 GB SD card reader
Power
100 to 240 VAC, 50 to 60 Hz (auto selection)
Less than 15 W of power consumption
Powercon connector
Dimensions
19.3 x 1.8 x 7.3″ (48.2 x 4.4 x 18.2 cm)
Weight
4.2 lb (2.0 Kg)
Packaging Info
Package Weight
8.41 lb
Box Dimensions (LxWxH)
21.2 x 11.4 x 4.4″
