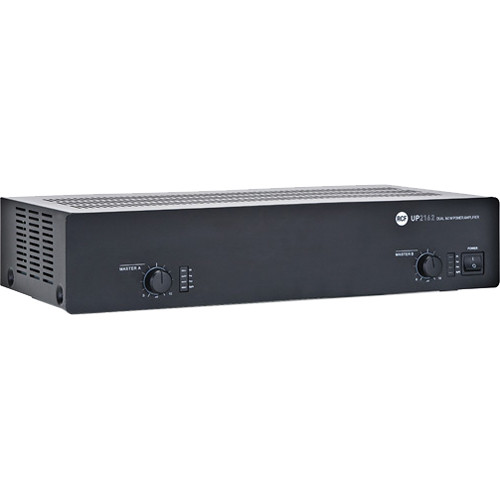

RCF UP 2162 Power Amplifier (2 Channel, 2 x 160W)

Add to Wishlist

AED5,499.00

Add to Wishlist

The UP 2162 Power Amplifier from RCF features two separated and independent 160W amplifiers. Each amplifier section has two audio inputs, of which one is with Priority function through a closing contact. Both audio inputs are at Line level for pre-amplified signals or music sources such as CD players and tuners. The amplifier output is available for either low impedance (min. 4 ohm) loudspeakers, or for loudspeakers with a 100-70V transformers. This Class D amplifier features a switching power supply. It is ideal for use in restaurants, shops, supermarkets, hotels, offices, department stores, industrial systems and similar applications.

Designed for the transmission of announcements and musical programs
Main input on removable connector
AUX input for music sources removable connector
Controls for Treble, Bass and Gain on the AUX input
Main input can have priority over the Aux input (by means of an external command linked to the removable connector)
Output speaker available either for low impedance loudspeakers (min. 4 ohms) or 100 – 70 V constant voltage line
Front panel LEDs indicate the device state (ON, PROT), the priority activation (PRIOR) and the signal/peak level (SIG/PK)
SKU: UP-2162 Category: Tag:

RCF UP2162 Specs

Power Output
2 x 160W RMS
Frequency Response
50 Hz to 18 kHz
Distortion
< 0.3%
Signal / Noise
80 dB
Crosstalk
80 dB
Input Sensitivity
Line: 0 dBu
Aux: 0 to -20 dBu
Line Input Impedance
20 kOhms
Auxiliary Input Impedance
20 kOhms
Tones
Bass/Treble: 100 Hz, ±8 dB
Output Impedance
4 ohms
Output Voltage
70 V (31 ohms) / 100 V (62 ohms)
Operating Voltage
115-230 VAC, 50/60 Hz
Power Consumption
2 x 350 W
Controls
Master volume, Treble, Bass, Gain
Protections
Overload, short circuit, thermal
Dimensions
3.4 x 17.4 x 8.6″ (88 x 444 x 220 mm)
Weight
15.43 lb (7 kg)
